This Product Is No Longer Available
| Code | Q503 |
|---|---|
| Model | 45-503 |
| Capacity | 25-50mm/1-2" |
| Weight (kg) | 1.26 |
| Weight (m3) | 0.002 |
| Weight (Freight) | 1.26 |

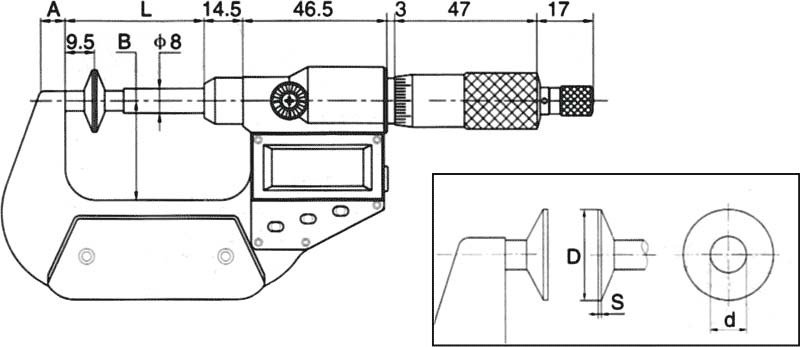

| Dimensions (cm) | 30 x 17 x 4.5 |
Product Brochure
This Product Is No Longer Available
Digital Disc Micrometer 45-503 25-50mm/1-2"
Description
Designed for the measurement of gears and paper thickness. The spindle is non-rotating to eliminate torque on the work piece.Features
- Painted frame
- Protection level IP54
- Origin data set, Absolute and incremental readings
- Metric/Inch conversion
- RS232 data output. (Uses cable 40-400)
- Large digital display
- Metric/Imperial conversion
- Ratchet thimble
- Accuracy 0.004mm
- Resolution 0.001mm / 0.0005"
Includes
- Includes LR44 battery
