This Product Is No Longer Available
| Code | Q502 |
|---|---|
| Model | 45-502 |
| Capacity | 0-25mm/0-1" |
| Weight (kg) | 8 |
| Weight (m3) | 0.016 |
| Weight (Freight) | 8 |

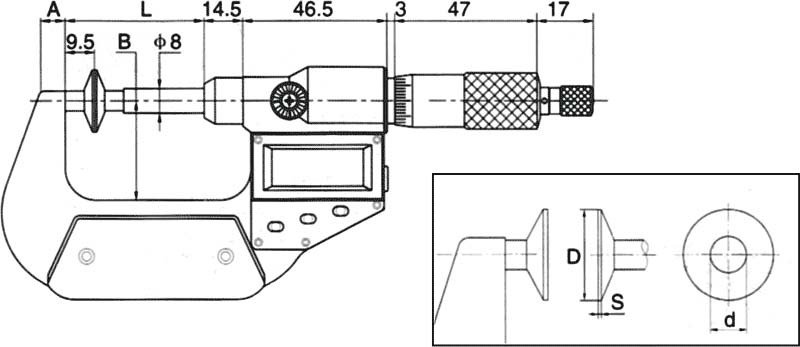

| Dimensions (cm) | 26 x 14 x 5 |
Product Brochure
This Product Is No Longer Available

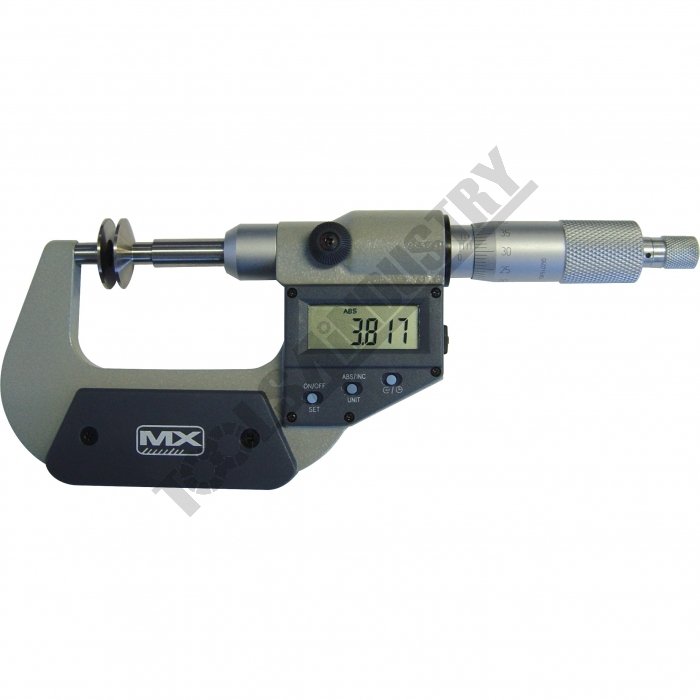

Digital Disc Micrometer 45-502 0-25mm/0-1"
Description
Designed for the measurement of gears and paper thickness. The spindle is non-rotating to eliminate torque on the work piece.Features
- Painted frame
- Protection level IP54
- Origin data set, Absolute and incremental readings
- Metric/Inch conversion
- RS232 data output. (Uses cable 40-400)
- Large digital display
- Metric/Imperial conversion
- Ratchet thimble
- Accuracy 0.004mm
- Resolution 0.001mm / 0.0005"
Includes
- Includes LR44 battery
