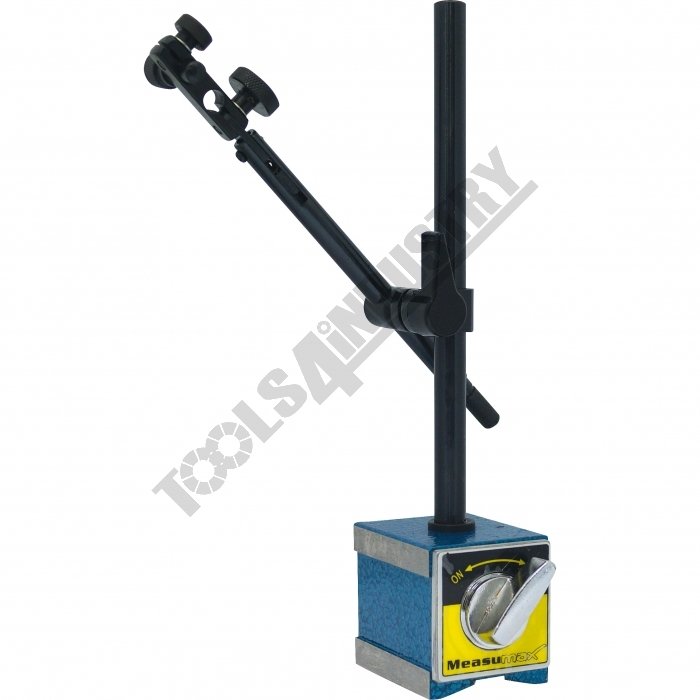

Q435 Magnetic Base - Large 38-435

Measuring Equipment > Magnetic Bases & Kits > Magnetic Bases
Q435 Magnetic Base - Large 38-435


Code:	Q435
Model:	38-435
Capacity:	80kg Holding Power
Weight (Nett):	2.4 Kg
Weight (Cubic):	0.004 m³
Weight (Freight):	2.4 Kg
Dimensions:	29 x 19 x 7.5
In Stock:	Yes

Magnetic Base - Large

Features
- Accepts all MX Dial Indicators
- V-Base for placing on round surfaces
- On/Off lever releases magnet
- No risk of marring polished surfaces
- Mounts test indicators with 1/4" spigot
- On/Off switch conveniently located

Array
(
    [0] => M050
    [5] => M051
    [4] => M055
    [1] => Q430
    [2] => Q435
    [3] => Q4351
    [6] => Q436
)

All Sorts: Array
(
    [0] => M050
    [1] => M051
    [2] => M055
    [3] => Q430
    [4] => Q435
    [5] => Q4351
    [6] => Q436
)

All Codes +  All Sorts: Array
(
    [M050] => M050
    [M051] => M051
    [M055] => M055
    [Q430] => Q430
    [Q435] => Q435
    [Q4351] => Q4351
    [Q436] => Q436
)

Current: 5
Max: 7
Back: -1
Next: 1
First: Q430
Second: Q435
Third: Q4351
Fourth: Q436

CODE	Model	Model	Base Size	Holding Power	Main Rod	Sub Rod	Reach	Weight
M050	Standard	Dual Lock Type	64 x 50mm	60kg	180mm	150mm	~	1.66kg
M051	Deluxe - One Lock	~	62 x 50mm	60kg	-	~	320mm	1.68kg
M055	Dial & Mag Base Kit	~	~	~	~	~	~	2.26kg
Q430	Small	One Lock	30 x 30 x 30mm	17kg	ø20 x 70mm	ø20 x 65mm	130mm	0.58kg
Q435	Standard with	Fine Adjuster	62 x 50 x 55mm	80kg	ø12 x 173mm	ø10 x 162mm	300mm	1.5kg
Q4351	Heavy Duty with	Fine Adjuster	58 x 50 x 55mm	60kg	ø16 x 200mm	ø12 x 150mm	300mm	1.6kg
Q436	Heavy Duty	One Lock	73 x 55 x 50mm	85kg	ø18 x 150mm	ø14 x 140mm	330mm	1.7kg
