This Product Is No Longer Available
| Code | Q164 |
|---|---|
| Model | 25-164 |
| Capacity | 4-6" |
| Weight (kg) | 5.04 |
| Weight (m3) | 0.013 |
| Weight (Freight) | 5.04 |
| Dimensions (cm) | 40.5 x 31 x 10 |
Product Brochure
This Product Is No Longer Available

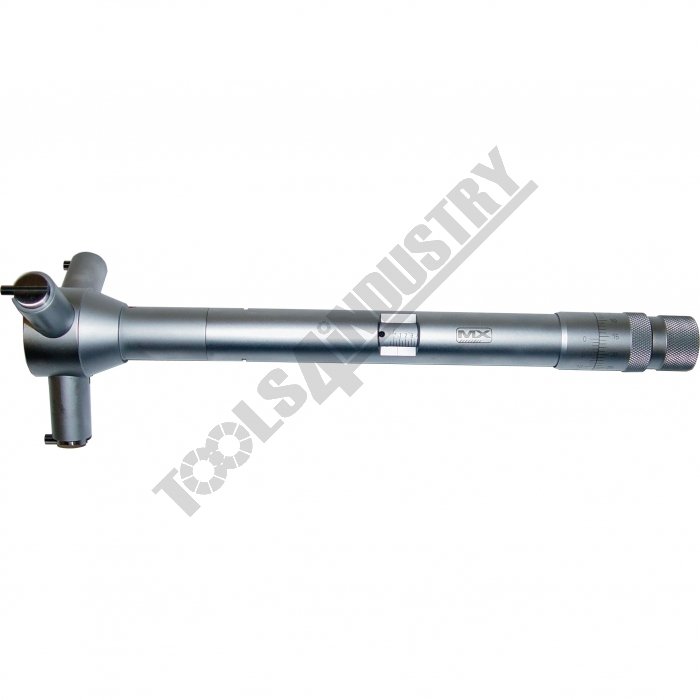

3-Point Internal Micrometer - Large Range 25-164 4-6"
Description
Measumax large range 3-point internal micrometers are self-centering for accurate measurement of internal diametersFeatures
- Carbide-tipped contact points
- Large range capacity
- Measurements can be taken closer to the bottom of a blind bore, and can be taken in a deep hole with an extension

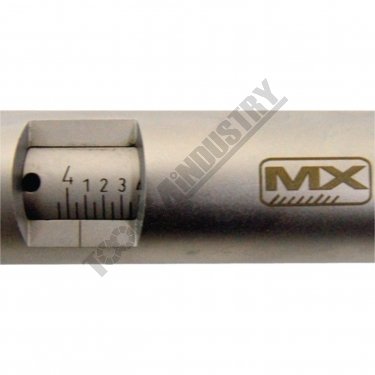

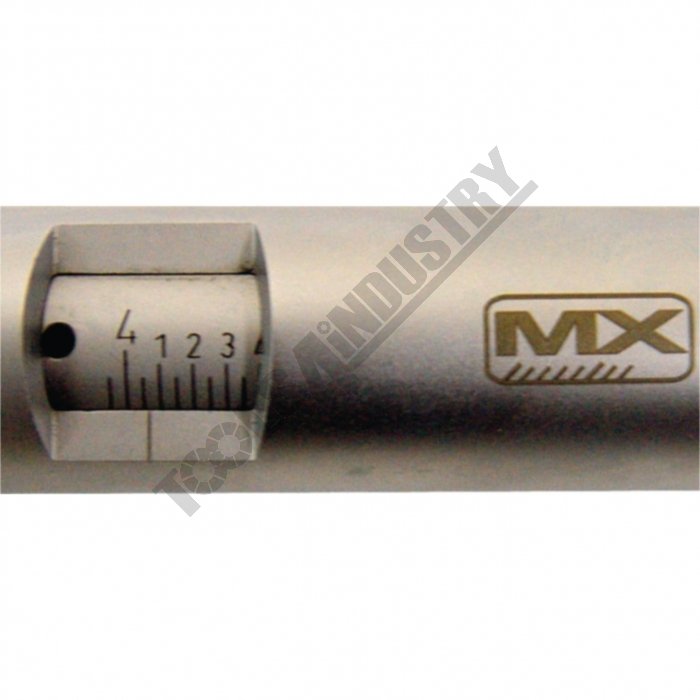

- Graduation: 0.001"

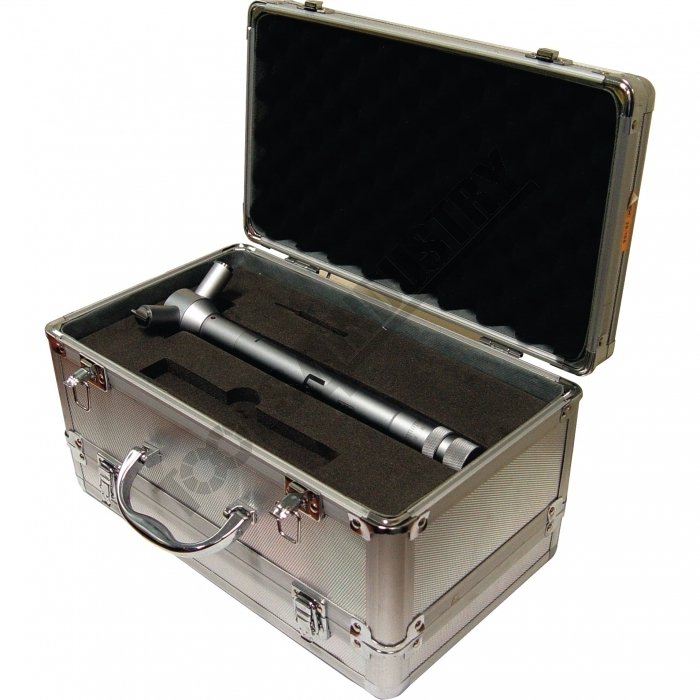

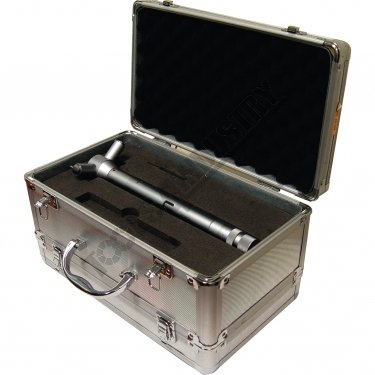

- Supplied in deluxe foam lined aluminium case
Includes

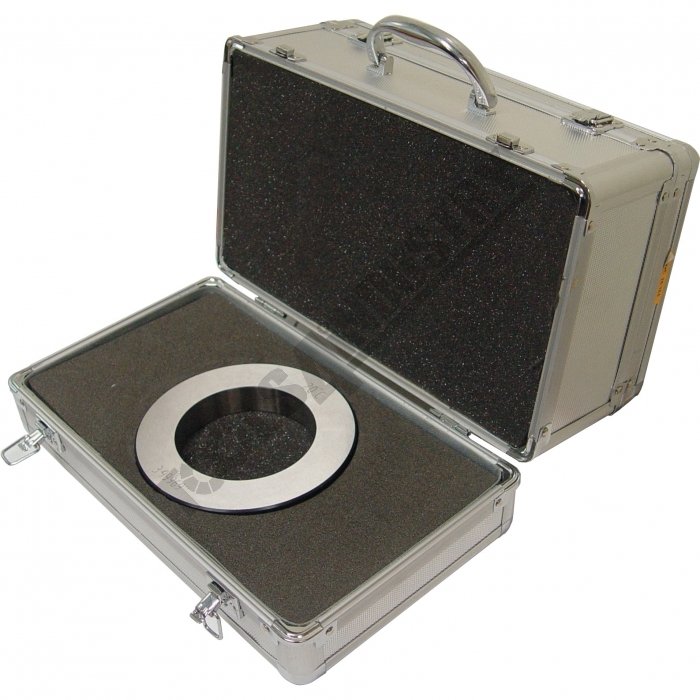

- Setting gauge ring to suit
Specifications
- Compare 8 Products
- ORDER CODE
- Rangemm / inch
- Graduationmm / inch
- Accuracymm / inch
- Individual Rangemm
- Setting Rangemm
- Extension Rod Lengthmm

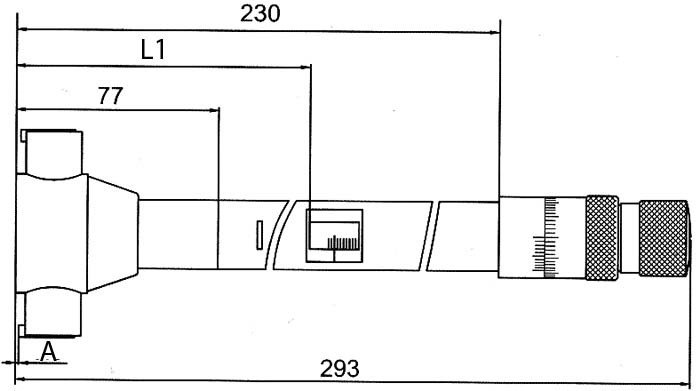

- Amm
- L1mm
- Q164
- 4 - 6"
- 0.001"
- 0.0002"
- ~
- Ø4"
- ~
- 0.5
- 230
- Q1635
- 50 - 70
- 0.001"
- 0.004
- ~
- Ø50
- ~
- 0.5
- 107
- Q1637
- 70 - 100
- 0.01mm
- 0.004
- ~
- Ø70
- ~
- 0.5
- 107
- Q160
- 6 - 12
- 0.01mm
- 0.004
- 6-8, 8-10, 10-12
- Ø6, 8, 10
- 100
- 1.5
- 54.5
- Q161
- 12 - 20
- 0.01mm
- 0.004
- 12-16, 16-20
- Ø16
- 150
- 0.5
- 80
- Q162
- 20 - 50
- 0.01mm
- 0.004
- 20-25, 25-30, 30-40,
40-50 - Ø25, 40
- 150
- 0.5
- 90
- Q163
- 50 - 100
- 0.01mm
- 0.005
- 50-63, 62-75, 75-88
87-100 - Ø62, 87
- 150
- 0.5
- 114
- Q165
- 100 - 150
- 0.01mm
- 0.005
- ~
- Ø100
- ~
- 0.5
- 230
| ORDER CODE | 4 - 6" |
|---|---|
| Rangemm / inch | 0.001" |
| Graduationmm / inch | 0.0002" |
| Accuracymm / inch | ~ |
| Individual Rangemm | Ø4" |
| Setting Rangemm | ~ |
| Extension Rod Lengthmm | 0.5 |
| Amm | 230 |
| L1mm |
