| Code | Q133 |
|---|---|
| Model | 10-133 |
| Capacity | 25-50mm |
| Weight (kg) | 0 |
| Weight (m3) | 0.000 |
| Weight (Freight) | 0.000 |
| Dimensions (cm) |
Product Brochure
This Product Is No Longer Available

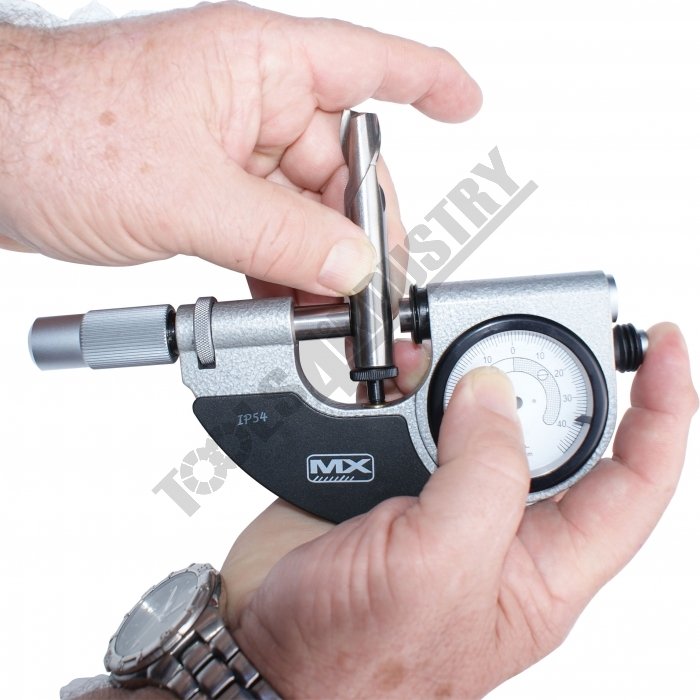

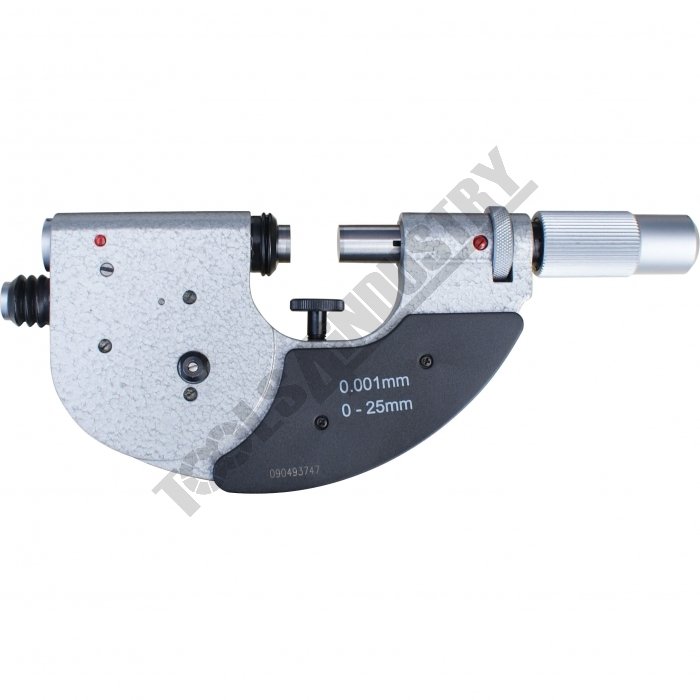

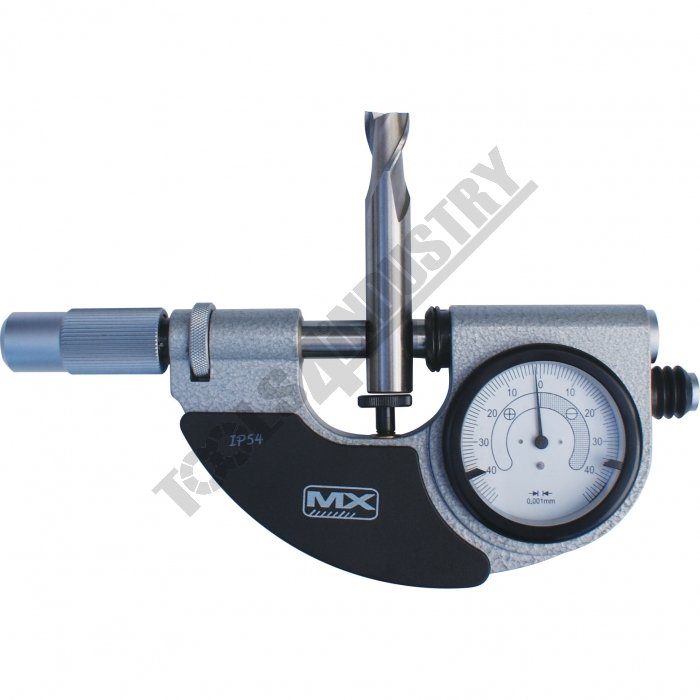

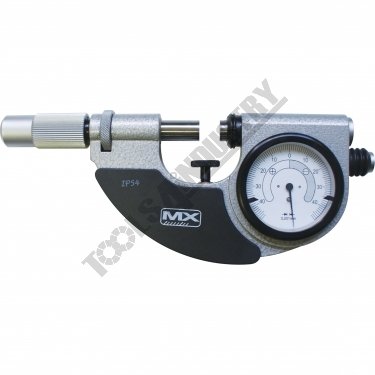

Indicator Snap Micrometer 10-133 25-50mm
Features
- Protection level IP54
- 10mm diameter carbide measuring faces
- Direct GO/NOGO judgment for mass produced parts
- Measuring force 5-10N
- Painted frame
- Carbide tipped anvils, Flatness 0.0008mm
- Indicator rang ±0.04mm
- Indicator resolution 0.001mm
