| Code: | P233 |
| Model: | CP-20LT |
| Capacity: | 1/8HP |
| Weight (Nett): | 6.4 Kg |
| Weight (Cubic): | 0.010 m3 |
| Weight (Freight): | 6.4 Kg |
| Dimensions: | 29 x 16 x 21 |
| In Stock: | Yes |
Description
150mm Leg COOLANT PUMP BARE - 415V
Bare pump for almost any application
Features
- Submersible type
- High-tensile cast iron housing
- Totally enclosed motor with copper wire coils and non-corrosive plastic impellers
 |
 |
 |
 |

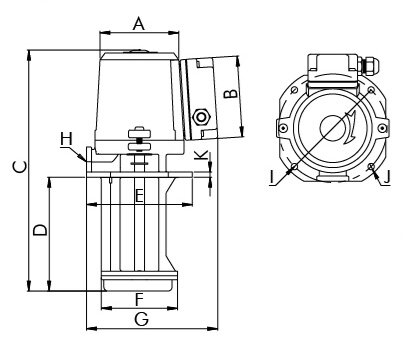

| CODE | P232 | P233 | P234 | P235 |
| Model | CP-20LT | CP-20LT | CPM-20LT | CPP-20LT |
| Type | Coolant Pump | Coolant Pump | Coolant Pump & Tank | Coolant Pump & Tank |
| Tank Capacity | ~ | ~ | 7 Litres | 9 Litres |
| Discharge at 2 metre Lift | 20ltrs/min | 20ltrs/min | ~ | ~ |
| L | 285mm | 285mm | ~ | ~ |
| L1 Submerge Depth | 130mm | 130mm | ~ | ~ |
| PCD (4 Mount Holes) | 130mm | 130mm | ~ | ~ |
| Outlet | 3/8" | 3/8" | ~ | ~ |
| Voltage | 240V | 415V | 240V | 240V |
| Motor Power | 1/8hp | 1/8hp | 1/8HP | 1/8HP |
| Dimensions | ~ | ~ | 290 x 200 x 170mm | 340 x 250 x 170mm |
| Weight (nett) | 6.5kg | 6.5kg | 15kg | 7.6kg |
|
|
|
|
