This Product Is No Longer Available

Code	L422
Model	S16Q-CTFPR-11
Capacity	Ø16mm
Weight (kg)	0.34
Weight (m³)	0.000
Weight (Freight)	0.34
Dimensions (cm)	20.3 x 2.6 x 2.6

TOOLMASTER

Taiwan

Product Brochure

This Product Is No Longer Available

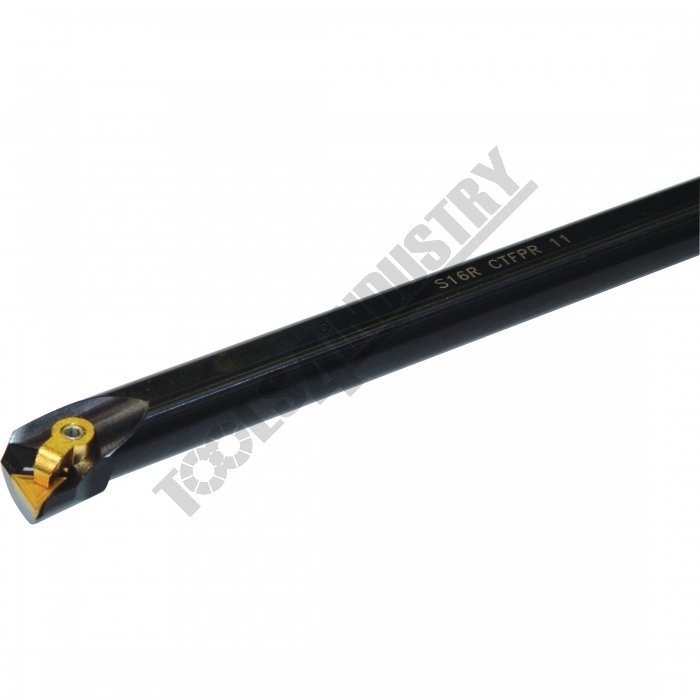

Right Hand Boring Bar S16Q-CTFPR-11 Ø16mm

Description

NOTE: Inserts NOT included with tool holders.

Use insert TPMR 110304 (L061)

Features

Positive rake turning tool holder with 90º approach angle
Suitable for heavy duty cutting

Specifications

Compare 17 Products

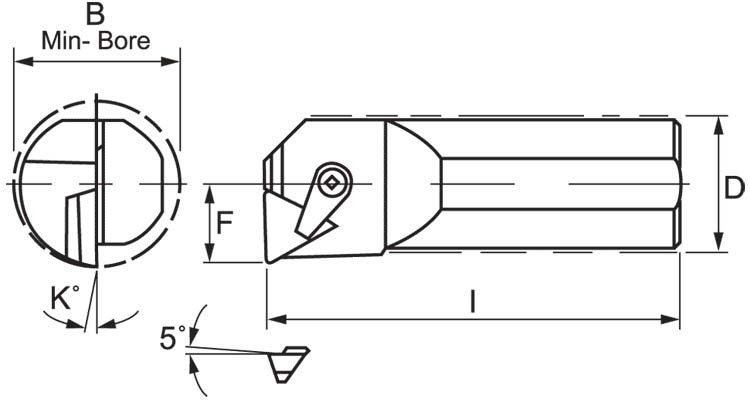

ORDER CODE
Part Number - Style
Sizemm
Hand Type
B = Minimum Boremm
Dmm
Fmm
Lmm
Kdeg
Minimum Boremm

L422
~
16
RIGHT
22
16
11
200
4º
19

L025
~
32
RIGHT
40
32
22
300
10º
38

L0263
~
32
RIGHT
40
32
22
250
11º
40

L426
~
25
RIGHT
34
25
17
300
3º
29.5

L424
~
20
RIGHT
26
20
13
250
3º
23

L420
~
12
RIGHT
18
12
8
150
6º
14.5

L020
SCLC
8
RIGHT
10
8
5
125
13º
10

L0201
SCLC
10
RIGHT
12
10
6
125
12º
12

L021
STFC
12
RIGHT
16
12
9
150
10º
15

L022
STFC
16
RIGHT
20
16
11
180
6º
19

L023
STFC
20
RIGHT
25
20
13
250
3º
23

L415
MWLN
20
RIGHT
25
20
13
250
17º
23

L0235
MTUN
20
RIGHT
25
20
13
300
17º
25.5

L416
MWLN
25
RIGHT
32
25
17
300
14º
29.5

L024
MTUN
25
RIGHT
32
25
17
300
12º
29.5

L417
MWLN
32
RIGHT
40
32
22
300
14º
38

L026
~
25
RIGHT
32
25
17
200
11º
32

ORDER CODE	~
Part Number - Style	16
Sizemm	RIGHT
Hand Type	22
B = Minimum Boremm	16
Dmm	11
Fmm	200
Lmm	4º
Kdeg	19
Minimum Boremm
