Machine Tool Accessories > Lathe Accessories > Toolpost - Quick Change Toolpost
L2994 Quick Change Toolpost - 40 Position B2
Quick Change Toolpost - 40 Position

Quick Change Toolpost40 Position
TM
Code:L2994
Model:B2
Capacity:300 - 500mm Centre Height
Weight (Nett):11 Kg
Weight (Cubic):0.007 m3
Weight (Freight):11 Kg
Dimensions:22 x 23 x 13
In Stock:Yes
Instruction Sheets
Selecting a Quick Change Toolpost [521.32 KB]

Quick Change Toolpost - 40 Position

Description

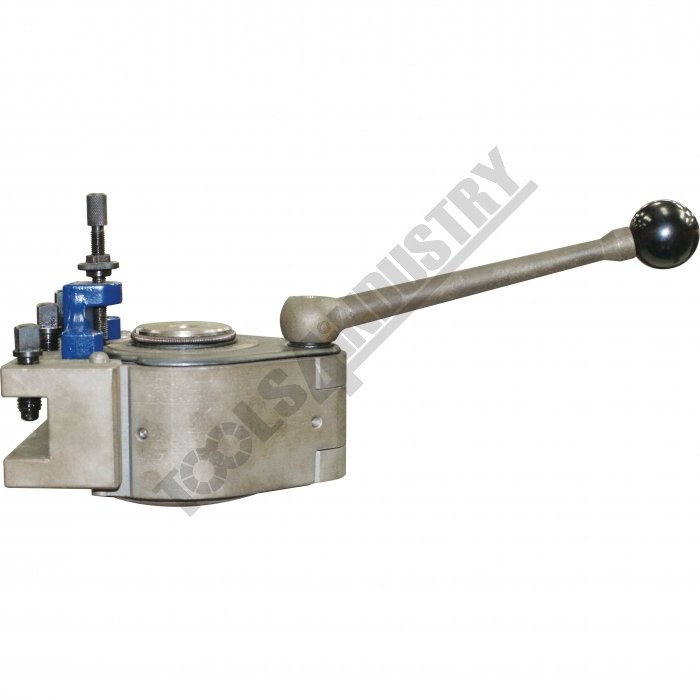

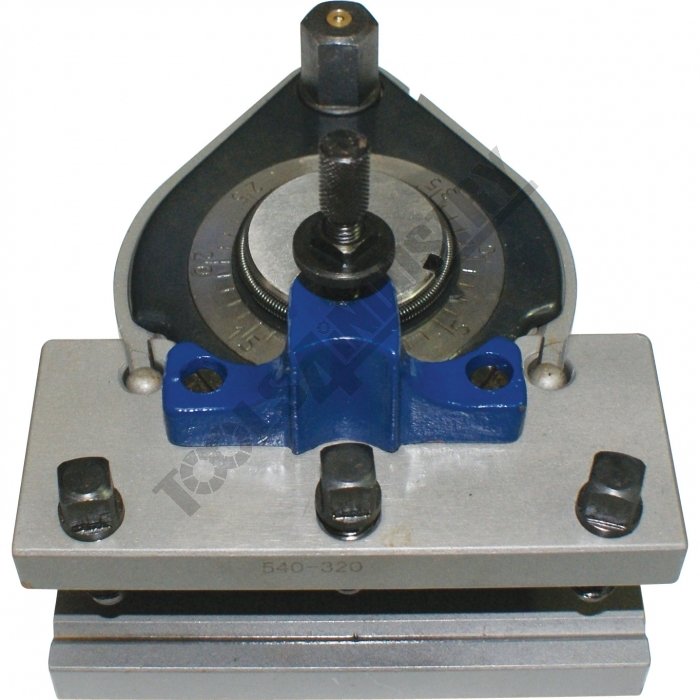

40 Position European style quick change toolpost.
Basic body and toolholders are made of high quality steel which is hardened and ground. The toolholders are clamped against the body with an eccentric bolt.

Features

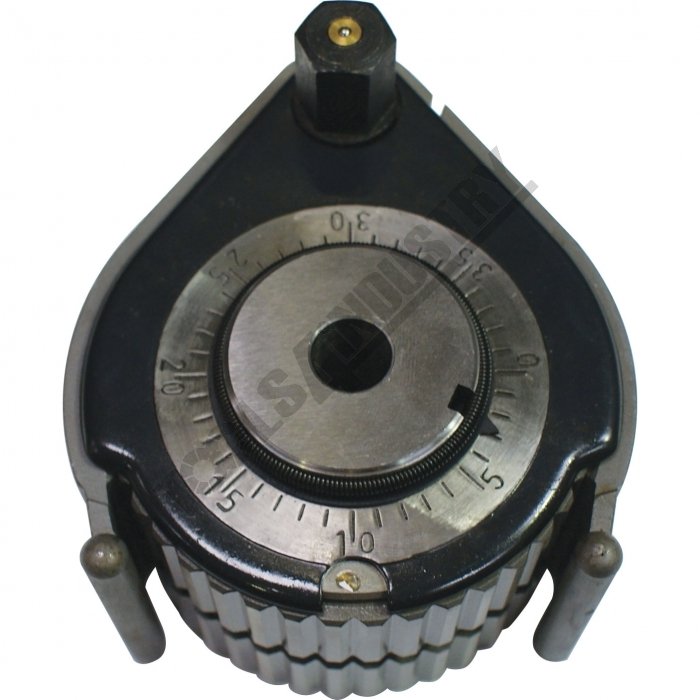

- The system allows a repeat accuracy of 0.01mm with 40 possible angular positions of the tool holder
- Body and tool holder are both made of high quality steel which is hardened and ground
- Tool holder is clamped against the body by an exentric bolt

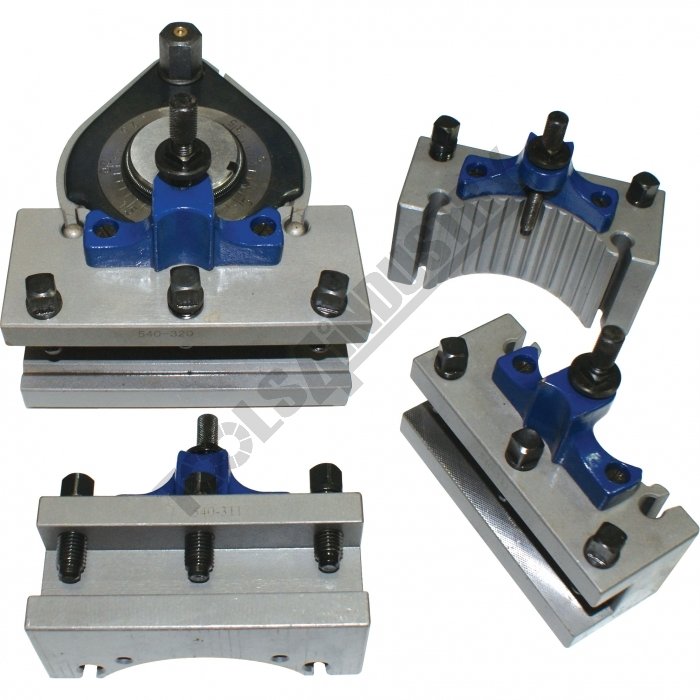

- Supplied with 3 square tool holders and one vee tool holder

Includes
• 3 x square tool holders
• 1 x Vee tool holder

Optional Accessories
• Holders - L2995

Array
(
    [0] => L280
    [1] => L292
    [3] => L293
    [4] => L294
    [2] => L295
    [5] => L296
    [6] => L297
    [7] => L298
    [8] => L299
    [9] => L2992
    [10] => L2994
    [11] => L2996
)

All Sorts: Array
(
    [0] => L280
    [1] => L292
    [2] => L293
    [3] => L294
    [4] => L295
    [5] => L296
    [6] => L297
    [7] => L298
    [8] => L299
    [9] => L2992
    [10] => L2994
    [11] => L2996
)

All Codes +  All Sorts: Array
(
    [L280] => L280
    [L292] => L292
    [L293] => L293
    [L294] => L294
    [L295] => L295
    [L296] => L296
    [L297] => L297
    [L298] => L298
    [L299] => L299
    [L2992] => L2992
    [L2994] => L2994
    [L2996] => L2996
)

Current: 11
Max: 12
Back: -1
Next: 1
First: L299
Second: L2992
Third: L2994
Fourth: L2996
CODEModelCentre HeightABCDHhTNo. SidesNo. HoldersWeight (nett)
L280QA-10075 - 115mm14mm6mm50mm58mm18-30mm40mm12mm242.5kg
L292QA-140150 - 170mm15mm20mm60mm74mm28-41mm60mm16mm246.2kg
L293A168mm10mm12mm75mm100mm32-42mm60mm20mm369.8kg
L294BR-BP202mm15mm13mm90mm115mm38-53mm75mm25mm3614.1kg
L295QA-150150 - 170mm15mm20mm60mm74mm28-41mm60mm16mm246.2kg
L296B230mm18mm15mm100mm125mm47-65mm85mm32mm3523kg
L297C280mm21mm19mm108mm145mm51-72mm94mm32mm3528kg
L298D350mm34mm21mm137mm175mm61-95mm120mm40mm3550kg
L299A1150 - 300mm-9.5mm52mm104mm25-40mm55mm16mm-42.5kg
L2992E5200 - 400mm-12mm66mm132mm32-52mm68mm20mm-46.2kg
L2994B2300 - 500mm-14mm73mm150mm38-57mm76mm25mm-49.8kg
L2996C3400 - 700mm-16mm73-103mm192-202mm47-91mm107mm32mm-414.3kg

Recommended Accessories

L2995 - B2 Quick Change Toolpost - Holder 25mm
