Machine Tool Accessories > Lathe Accessories > Toolpost - Quick Change Toolpost

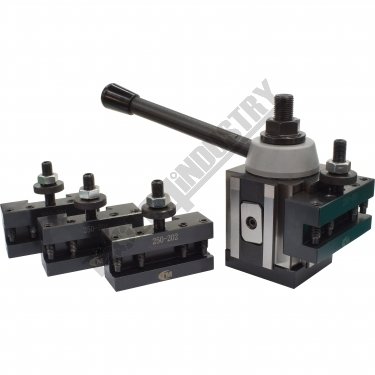

L292 Quick Change Toolpost QA-140
Quick Change Toolpost

TM
Code:L292
Model:QA-140
Capacity:150 - 170mm Centre Height
Weight (Nett):7.8 Kg
Weight (Cubic):0.007 m3
Weight (Freight):7.8 Kg
Dimensions:20 x16 x10
In Stock:Yes
Instruction Sheets
Selecting a Quick Change Toolpost [521.32 KB]

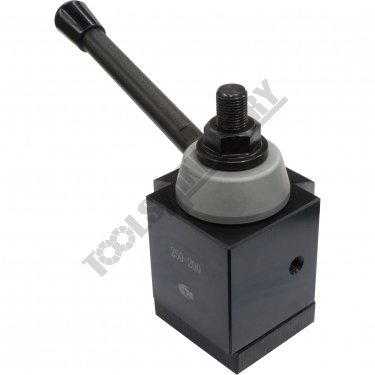

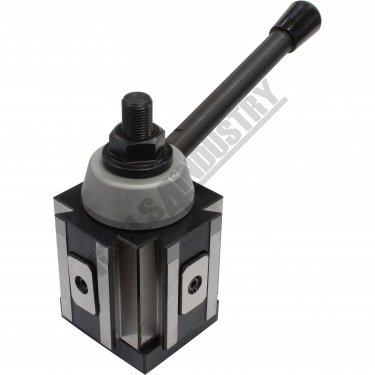

Quick Change Toolpost

Description
Manufactured from carburised and hardened steel.

Features
- All bearing surfaces are precision ground to ensure rigidity
- Handy lathe accessory for tool rooms and general engineering shops
- Ease of operation cuts set-up time by 90%
- No shims are required to adjust tools to correct centre height
- Easily fitted to most centre lathes

Optional Accessories

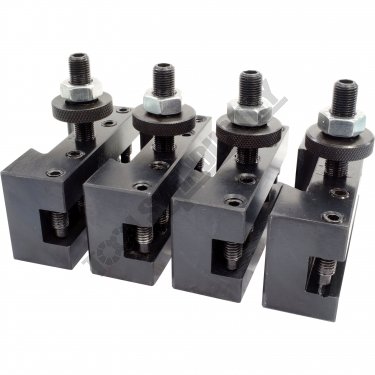

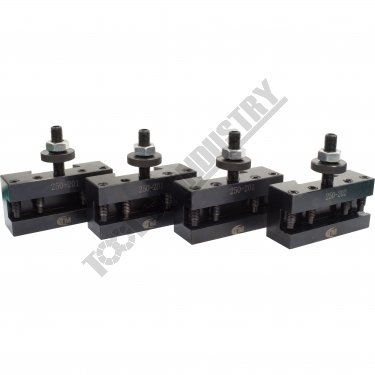

• Holders - L292A, L292B, L292C

Array
(
    [0] => L280
    [1] => L292
    [3] => L293
    [4] => L294
    [2] => L295
    [5] => L296
    [6] => L297
    [7] => L298
    [8] => L299
    [9] => L2992
    [10] => L2994
    [11] => L2996
)

All Sorts: Array
(
    [0] => L280
    [1] => L292
    [2] => L293
    [3] => L294
    [4] => L295
    [5] => L296
    [6] => L297
    [7] => L298
    [8] => L299
    [9] => L2992
    [10] => L2994
    [11] => L2996
)

All Codes +  All Sorts: Array
(
    [L280] => L280
    [L292] => L292
    [L293] => L293
    [L294] => L294
    [L295] => L295
    [L296] => L296
    [L297] => L297
    [L298] => L298
    [L299] => L299
    [L2992] => L2992
    [L2994] => L2994
    [L2996] => L2996
)

Current: 2
Max: 12
Back: -1
Next: 1
First: L280
Second: L292
Third: L293
Fourth: L294

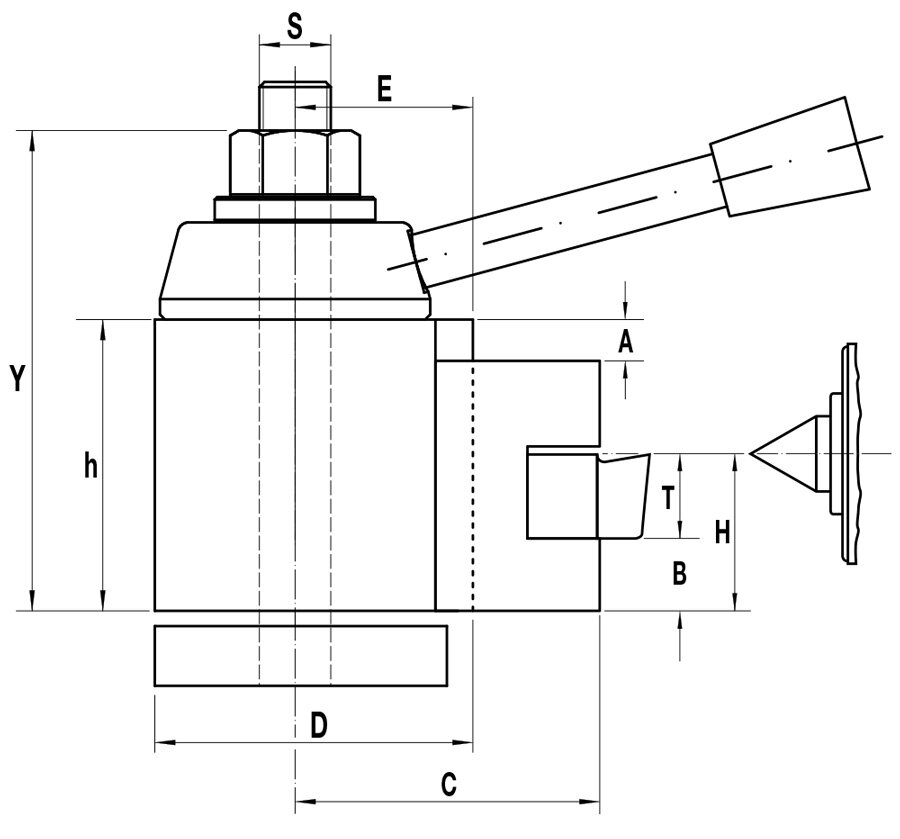

CODEModelCentre HeightABCDHhTNo. SidesNo. HoldersWeight (nett)
L280QA-10075 - 115mm14mm6mm50mm58mm18-30mm40mm12mm242.5kg
L292QA-140150 - 170mm15mm20mm60mm74mm28-41mm60mm16mm246.2kg
L293A168mm10mm12mm75mm100mm32-42mm60mm20mm369.8kg
L294BR-BP202mm15mm13mm90mm115mm38-53mm75mm25mm3614.1kg
L295QA-150150 - 170mm15mm20mm60mm74mm28-41mm60mm16mm246.2kg
L296B230mm18mm15mm100mm125mm47-65mm85mm32mm3523kg
L297C280mm21mm19mm108mm145mm51-72mm94mm32mm3528kg
L298D350mm34mm21mm137mm175mm61-95mm120mm40mm3550kg
L299A1150 - 300mm-9.5mm52mm104mm25-40mm55mm16mm-42.5kg
L2992E5200 - 400mm-12mm66mm132mm32-52mm68mm20mm-46.2kg
L2994B2300 - 500mm-14mm73mm150mm38-57mm76mm25mm-49.8kg
L2996C3400 - 700mm-16mm73-103mm192-202mm47-91mm107mm32mm-414.3kg

Recommended Accessories

L292A - QA-140 Square Tool Holder Quick Change Toolpost Holder 150-170mm Centre Height
L292B - QA-140 Parting Holder Quick Change Toolpost - Holder 150-170mm Centre Height
L292C - QA-140 Knurling Tool holder Quick Change Toolpost - Knurling Holder 150-170mm Centre Height
L451 - 3 piece Turning Tool Kit - Insert Type 16mm
L465 - Parting Tool Kit 16mm
L457 - Threading Tool Kit 16mm
L0077 - 7 piece Basic Turning Set - Insert Type 16mm
