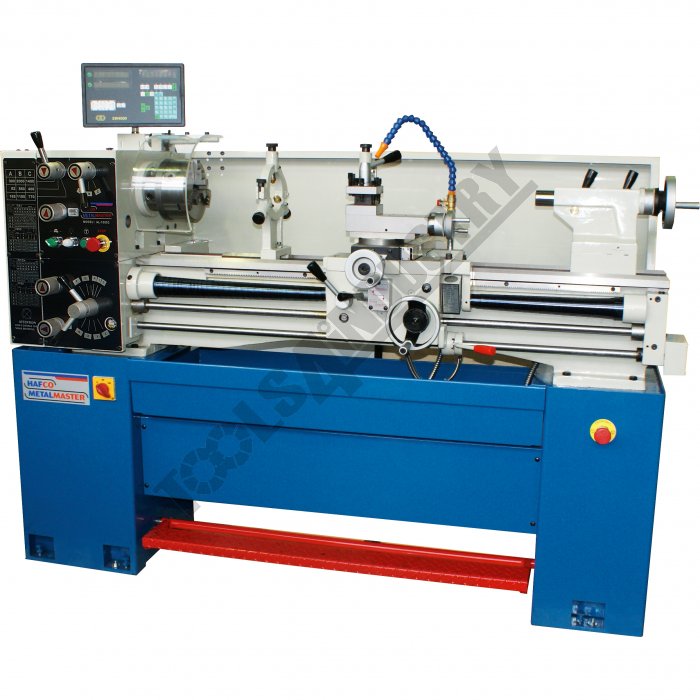

L240D Centre Lathe AL-1000C

Centre Lathe

Description
Tool room quality precision lathe, made in Taiwan and have been sold for over 20 years

Features

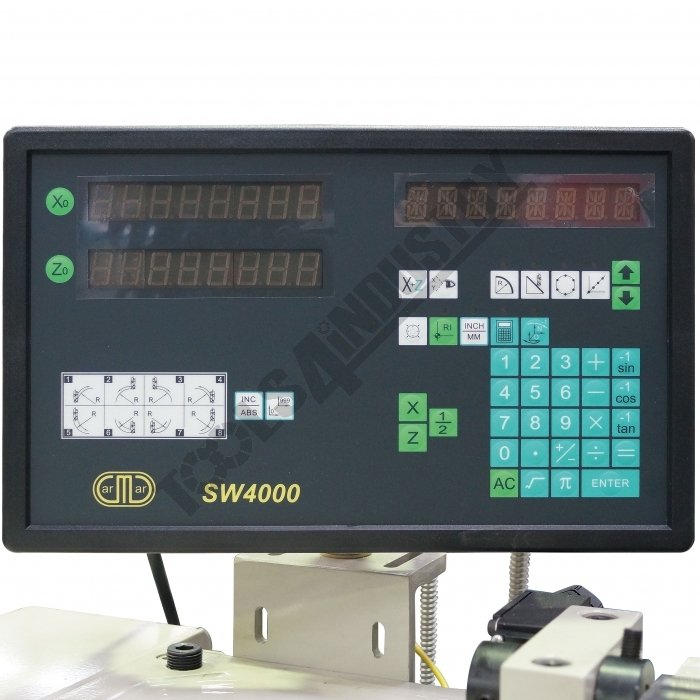

- 2 Axis digital readout system
- Gear drive headstock for quick change of spindle speeds
- Stand increasing rigidity and reducing vibration

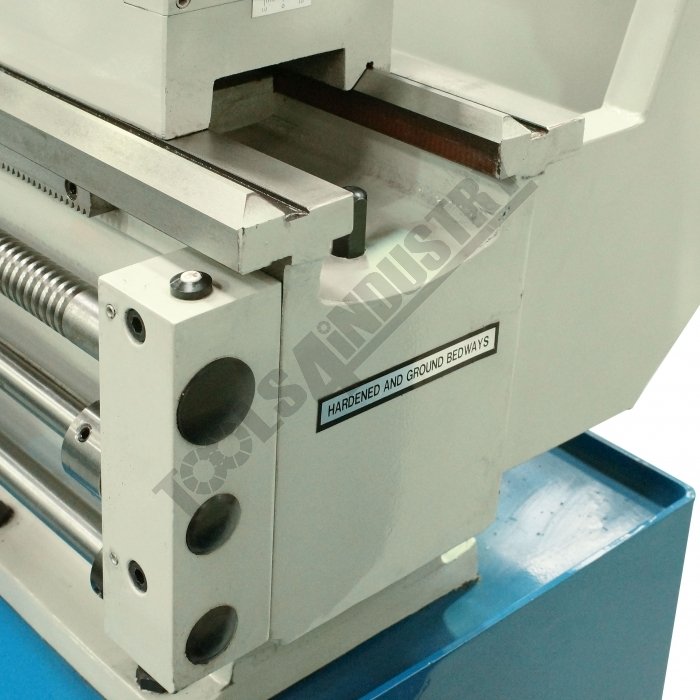

- Precision 'V'-beds are hardened and ground, incorporating a rigid webbed casting

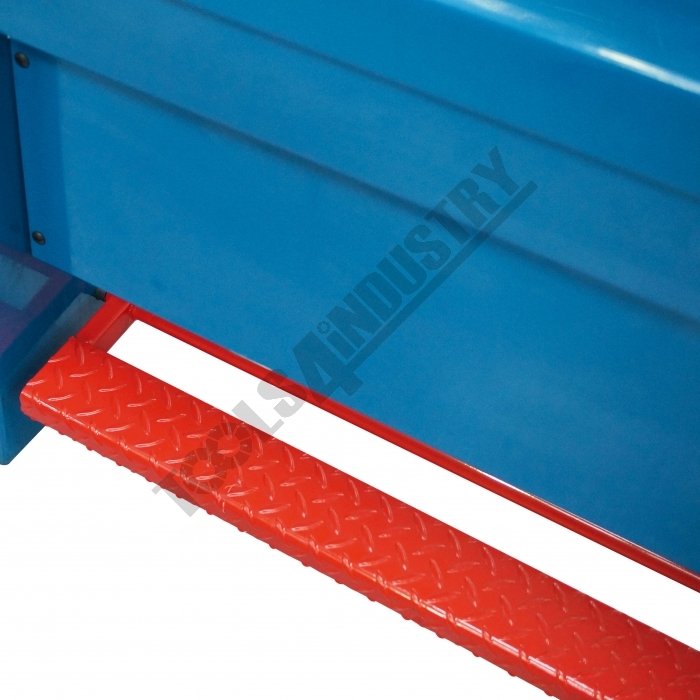

- Foot operated spindle brake with safety cut out switch

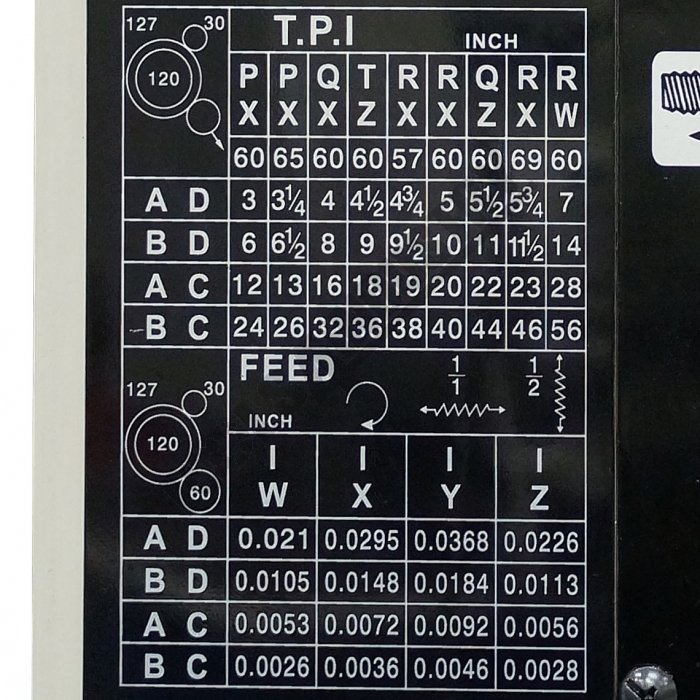

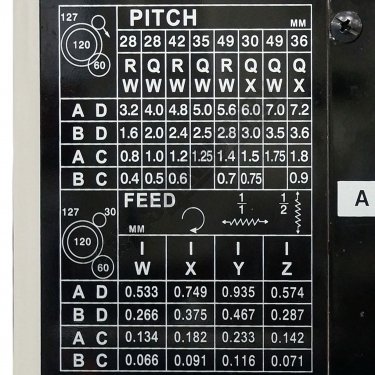

- Change gears for metric and imperial thread cutting
- Oil sight glass for head stock and gearbox
- Adjustable taper roller bearings support the spindle
- Overload clutch mechanism on auto power feed
- Overload protection on drive motor and coolant system

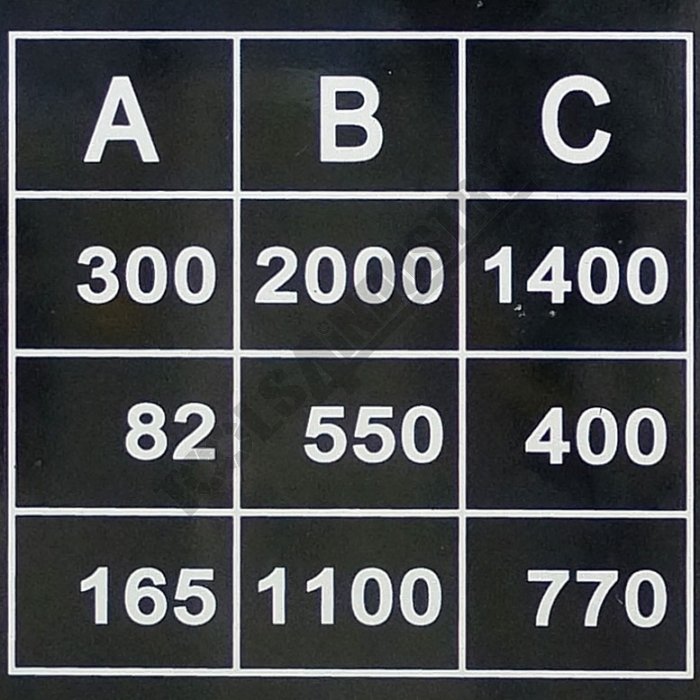

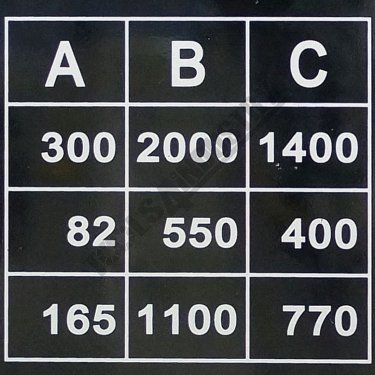

- 2hp 240V motor, 9-speed (82 - 2000rpm)

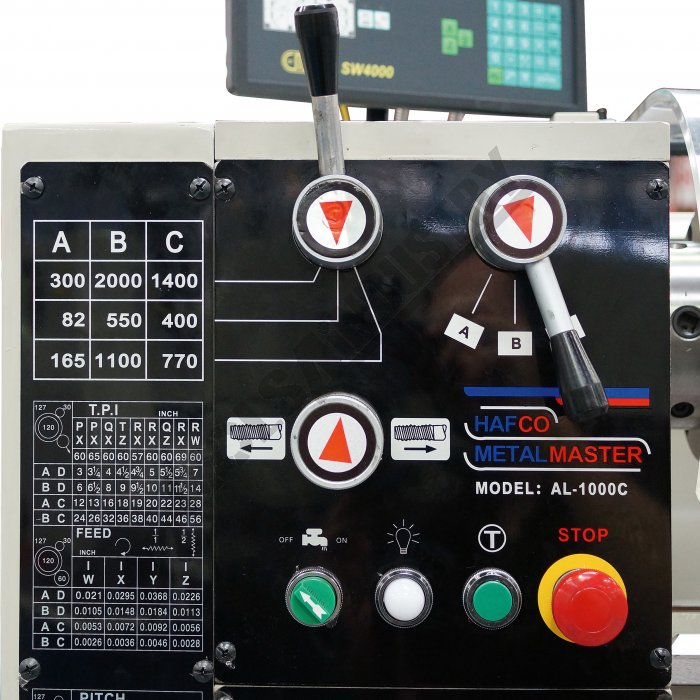

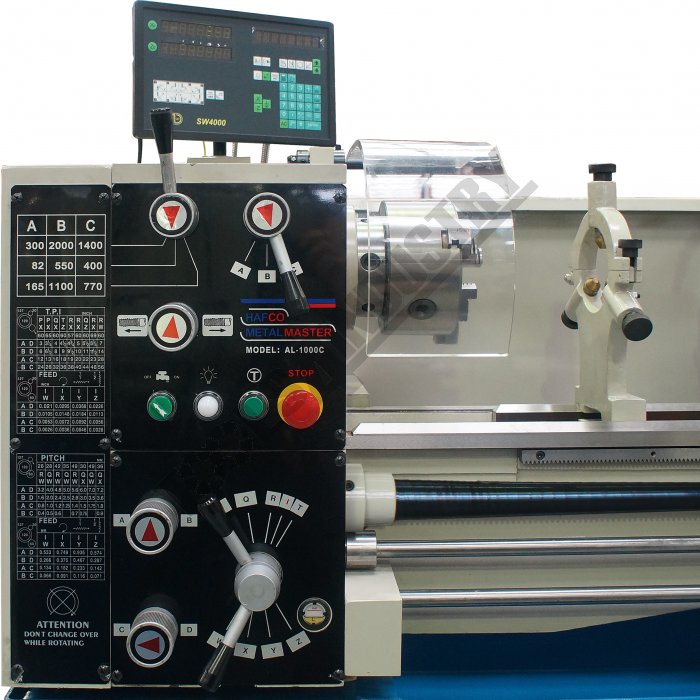

- Inching button is incorporated on the control panel for convenient spindle speed selection

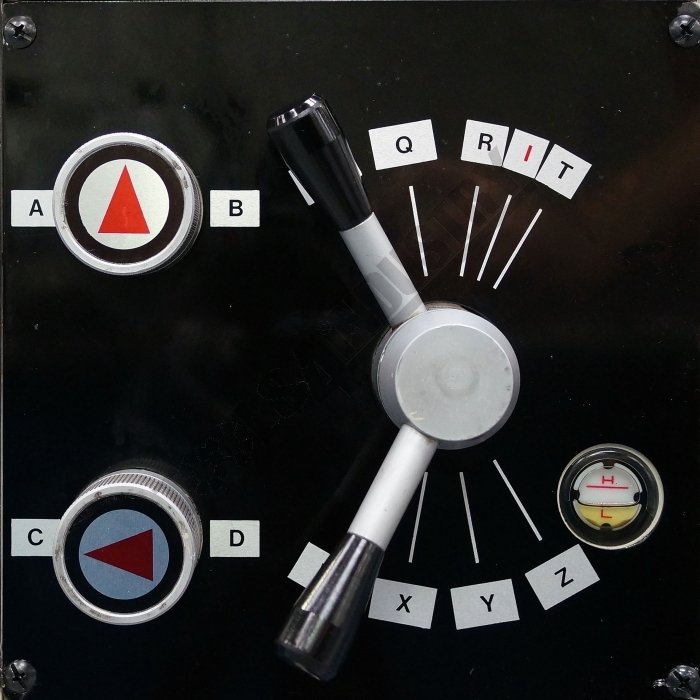

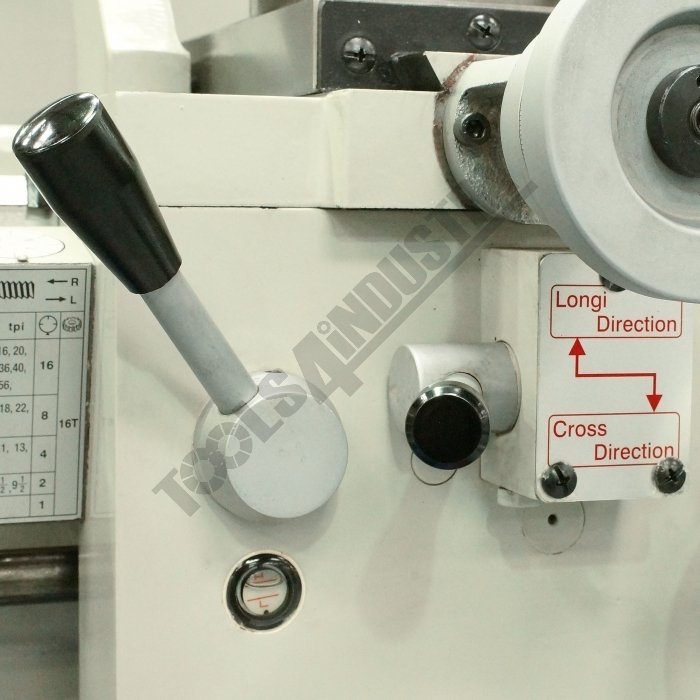

- Enclosed quick action gearbox for thread cutting and auto feeding
- Powered longitudinal and cross feeds
- D1-4 camlock spindle for quick chuck changes and safe reverse-direction turning. ISO standard
- Removable gap bed-way for larger diameter jobs

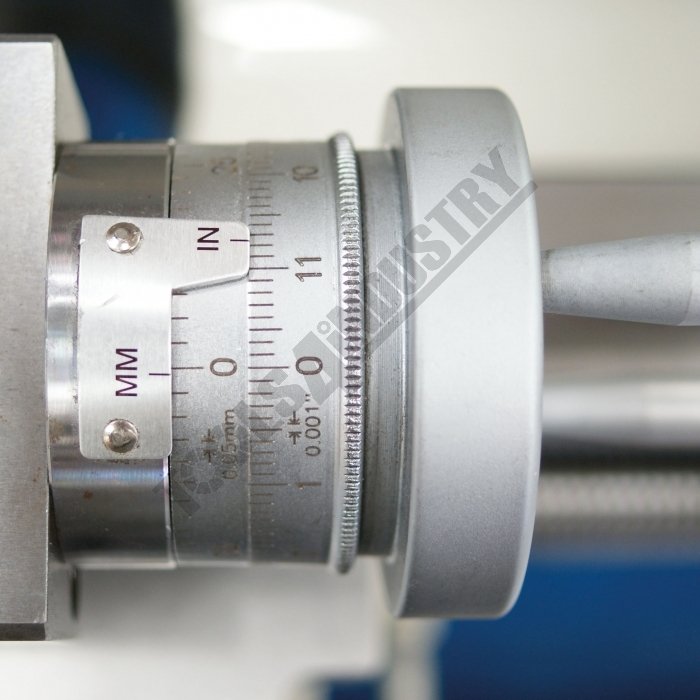

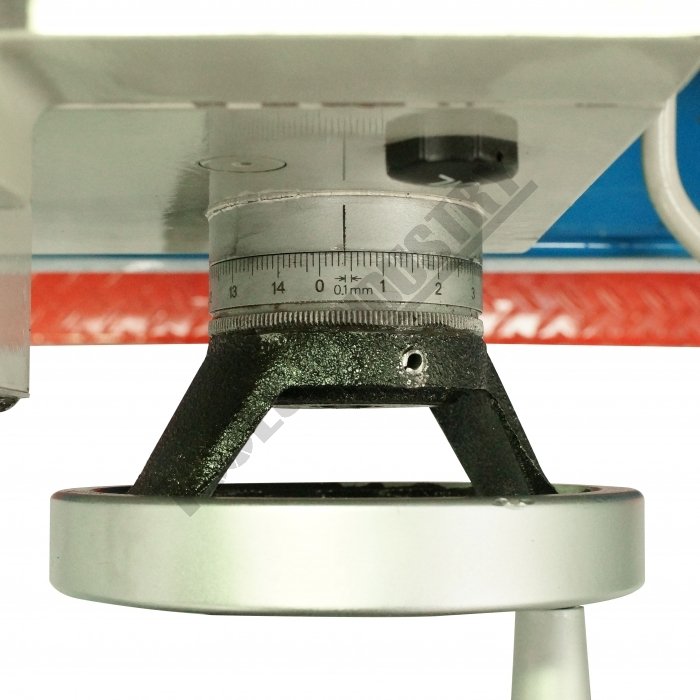

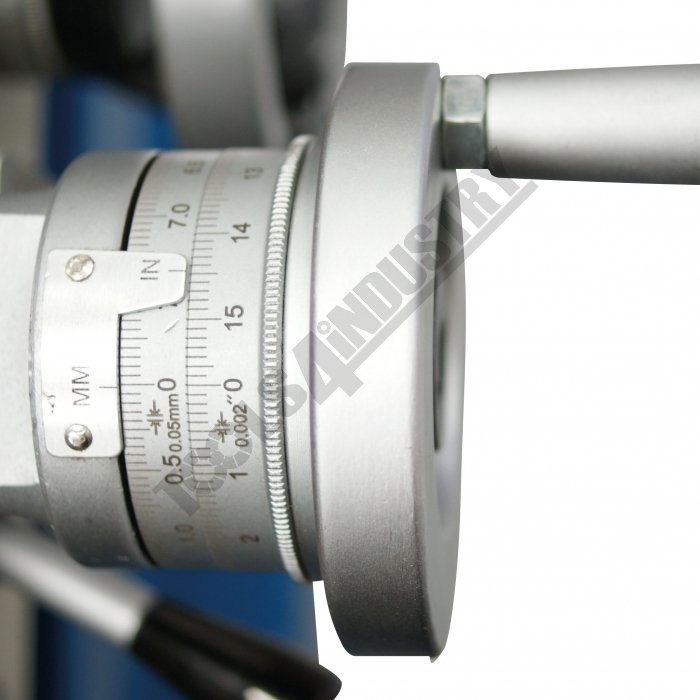

- Dual calibrated dials (except for saddle hand wheel)

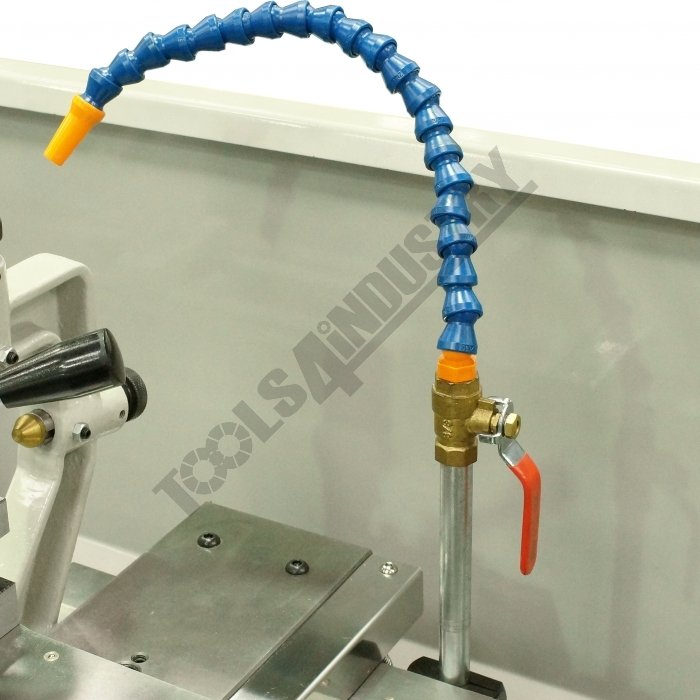

- Coolant system with flexible hose

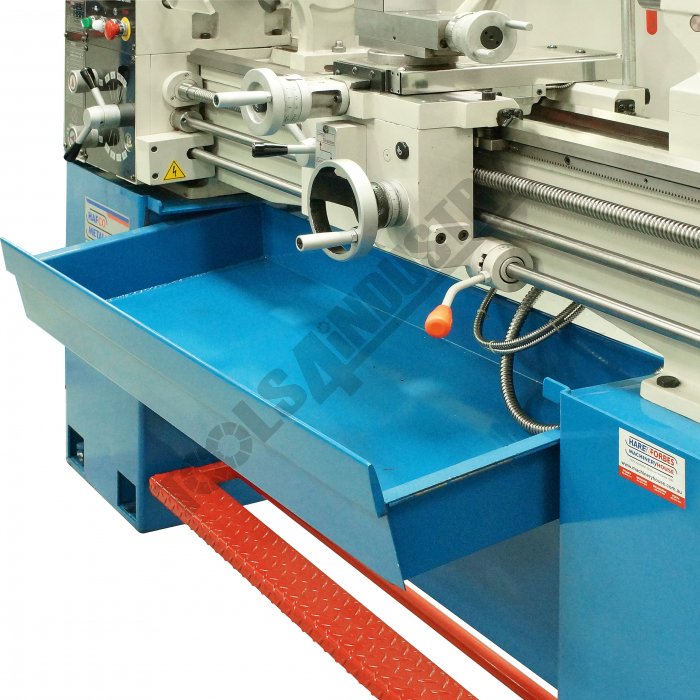

- Slide out swarf tray

Includes
• 2 Axis digital readout system
• 160mm 3-jaw chuck with reverse jaws
• 200mm 4-jaw chuck
• Face plate
• Fixed steady

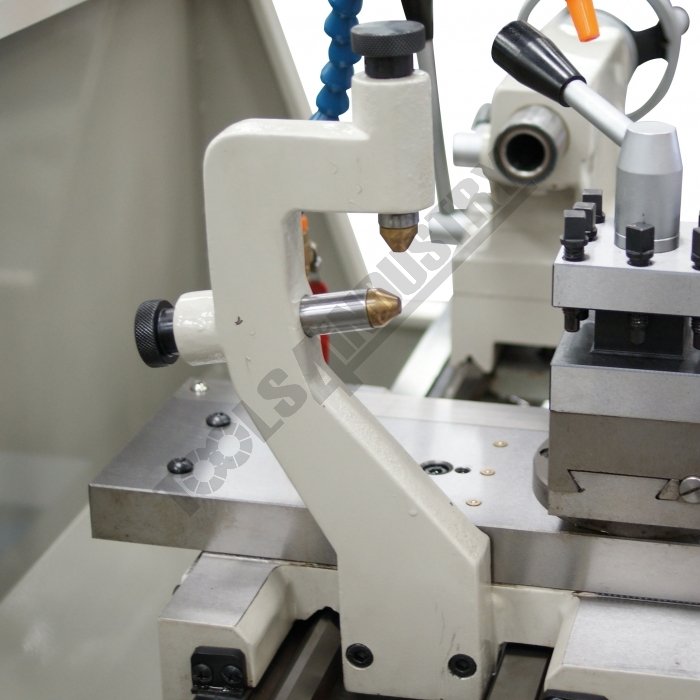

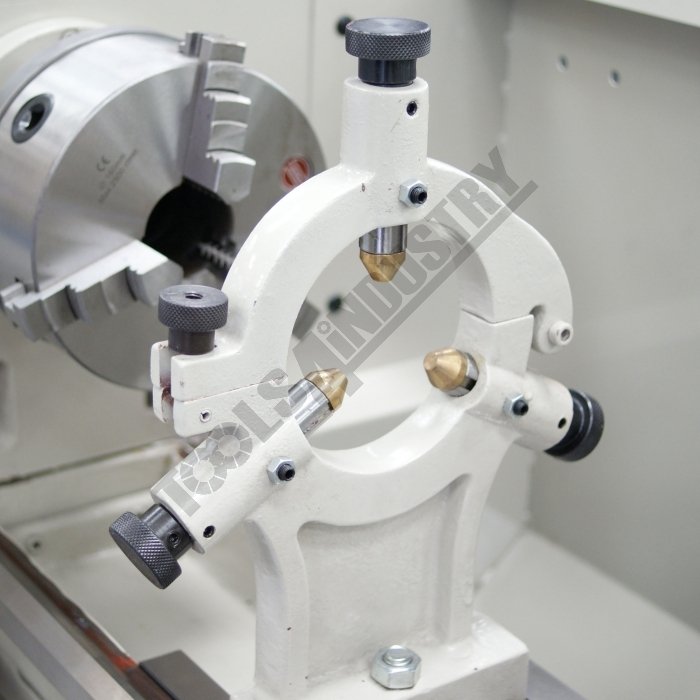

• Travelling steady
• Change gears
• Dead centres

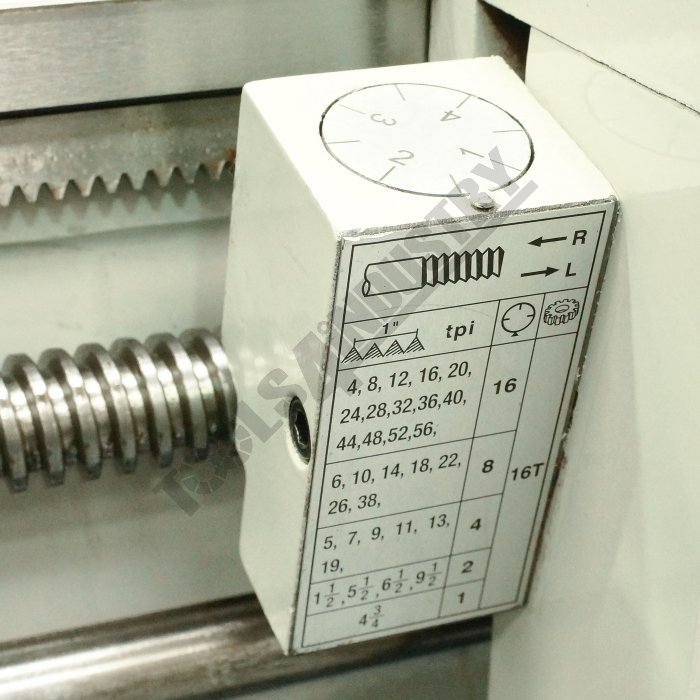

• Thread-chasing dial

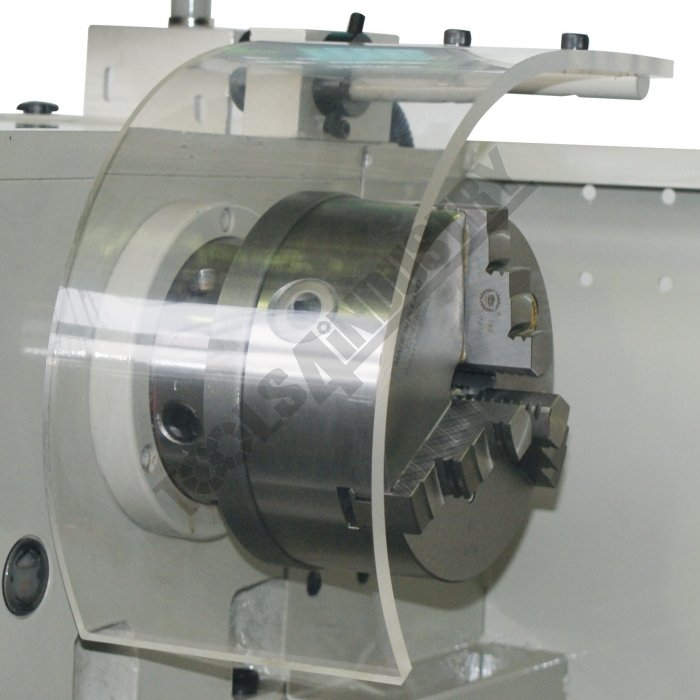

• Safety chuck guard
• Stand
• Foot brake
• Rear splash guard & swarf tray
• Tool box
• Instruction booklet

Array ( [44] => K036 [5] => K037 [45] => K038 [77] => L171 [67] => L171D [78] => L172 [58] => L172D [66] => L173 [76] => L173D [47] => L174 [3] => L179 [4] => L179D [6] => L179E [2] => L179F [46] => L179G [50] => L186 [7] => L186D [54] => L187 [8] => L187D [73] => L188 [62] => L188D [72] => L189 [63] => L189D [51] => L190 [15] => L191D [0] => L201 [1] => L201D [48] => L240 [11] => L240D [49] => L242 [12] => L242D [13] => L244 [14] => L244D [55] => L251D [18] => L254D [10] => L563D [9] => L565D [71] => L580 [53] => L580D [56] => L582D [33] => L586 [36] => L587 [35] => L590 [38] => L591 [39] => L592 [41] => L596 [42] => L597 [43] => L598 [60] => L600 [52] => L600D [16] => L601D [70] => L604 [79] => L604D [19] => L605D [65] => L614 [75] => L616 [64] => L617 [74] => L618 [34] => L620 [37] => L621 [40] => L623 [69] => L625 [22] => L625D [68] => L626 [24] => L626D [27] => L627D [31] => L628D [17] => L632D [20] => L634D [28] => L639D [32] => L642D [21] => L661D [23] => L662D [26] => L664D [25] => L665D [30] => L666D [29] => L667D [61] => L670D [57] => L672D [59] => L673D )
All Sorts: Array ( [0] => K036 [1] => K037 [2] => K038 [3] => L171 [4] => L171D [5] => L172 [6] => L172D [7] => L173 [8] => L173D [9] => L174 [10] => L179 [11] => L179D [12] => L179E [13] => L179F [14] => L179G [15] => L186 [16] => L186D [17] => L187 [18] => L187D [19] => L188 [20] => L188D [21] => L189 [22] => L189D [23] => L190 [24] => L191D [25] => L201 [26] => L201D [27] => L240 [28] => L240D [29] => L242 [30] => L242D [31] => L244 [32] => L244D [33] => L251D [34] => L254D [35] => L563D [36] => L565D [37] => L580 [38] => L580D [39] => L582D [40] => L586 [41] => L587 [42] => L590 [43] => L591 [44] => L592 [45] => L596 [46] => L597 [47] => L598 [48] => L600 [49] => L600D [50] => L601D [51] => L604 [52] => L604D [53] => L605D [54] => L614 [55] => L616 [56] => L617 [57] => L618 [58] => L620 [59] => L621 [60] => L623 [61] => L625 [62] => L625D [63] => L626 [64] => L626D [65] => L627D [66] => L628D [67] => L632D [68] => L634D [69] => L639D [70] => L642D [71] => L661D [72] => L662D [73] => L664D [74] => L665D [75] => L666D [76] => L667D [77] => L670D [78] => L672D [79] => L673D )
All Codes + All Sorts: Array ( [K036] => K036 [K037] => K037 [K038] => K038 [L171] => L171 [L171D] => L171D [L172] => L172 [L172D] => L172D [L173] => L173 [L173D] => L173D [L174] => L174 [L179] => L179 [L179D] => L179D [L179E] => L179E [L179F] => L179F [L179G] => L179G [L186] => L186 [L186D] => L186D [L187] => L187 [L187D] => L187D [L188] => L188 [L188D] => L188D [L189] => L189 [L189D] => L189D [L190] => L190 [L191D] => L191D [L201] => L201 [L201D] => L201D [L240] => L240 [L240D] => L240D [L242] => L242 [L242D] => L242D [L244] => L244 [L244D] => L244D [L251D] => L251D [L254D] => L254D [L563D] => L563D [L565D] => L565D [L580] => L580 [L580D] => L580D [L582D] => L582D [L586] => L586 [L587] => L587 [L590] => L590 [L591] => L591 [L592] => L592 [L596] => L596 [L597] => L597 [L598] => L598 [L600] => L600 [L600D] => L600D [L601D] => L601D [L604] => L604 [L604D] => L604D [L605D] => L605D [L614] => L614 [L616] => L616 [L617] => L617 [L618] => L618 [L620] => L620 [L621] => L621 [L623] => L623 [L625] => L625 [L625D] => L625D [L626] => L626 [L626D] => L626D [L627D] => L627D [L628D] => L628D [L632D] => L632D [L634D] => L634D [L639D] => L639D [L642D] => L642D [L661D] => L661D [L662D] => L662D [L664D] => L664D [L665D] => L665D [L666D] => L666D [L667D] => L667D [L670D] => L670D [L672D] => L672D [L673D] => L673D )
Current: 10
Max: 16
Back: -1
Next: 1
First: L201D
Second: L240D
Third: L244
Fourth: L244D

Code:	L240D
Model:	AL-1000C
Capacity:	356 x 1000mm - 40mm Bore
Weight (Nett):	720 Kg
Weight (Cubic):	2.011 m³
Weight (Freight):	720 Kg
Dimensions:	185 x 76 x 143
In Stock:	Contact your Dealer

CODE	L201D	L240D	L244	L244D
Model	AL-1324	AL-1000C	AL-1440	AL-1440
Digital Readout System Fitted	Yes	Yes	Optional	Yes
Quick Change Toolpost Fitted	Optional	Optional	Optional	Optional
Leadscrew Covers Fitted	Yes	~	Yes	Yes
Taper Turning Attachment	Optional	~	Optional	Optional
Tool Height To Suit	16mm	16mm	16mm	16mm
Distance Between Centres	600mm	1000mm	1000mm	1000mm
Swing Over Bed	330mm	356mm	356mm	356mm
Swing Over Cross-slide	200mm	225mm	224mm	224mm
Swing In Gap	490mm	516mm	516mm	516mm
Centre Height	165mm	178mm	178mm	178mm
Spindle Bore	40mm	40mm	40mm	40mm
Camlock Spindle Size	D1-4	D1-4	D1-4	D1-4
Bed Width	190mm	190mm	190mm	190mm
Head Stock Spindle Taper	5MT	5MT	5MT	5MT
Tail Stock Taper	3MT	3MT	3MT	3MT
Cross Slide Travel	175mm	175mm	175mm	175mm
Compound Slide Travel	100mm	100mm	100mm	100mm
Lead Screw	Metric	Imperial	Metric	Metric
Cross Feed Range (X-Axis)	0.034~0.468mm/rev	0.0008"-0.15"inch/rev	0.033-0.468mm/rev	0.033-0.468mm/rev
Longitudinal Feed Range (Z-Axis)	0.068~0.936mm/rev	0.0016"-0.30"inch/rev	0.066-0.936mm/rev	0.066-0.936mm/rev
Metric Thread Steps & Pitch Range	30(0.4-7.0mm)	30 (0.4-7.0mm)	30(0.4-7.0mm)	30(0.4-7.0mm)
Imperial Thread Steps & TPI Range	32(4-56TPI)	32 (4-56TPI)	32(4-56TPI)	32(4-56TPI)
3 Jaw Chuck Diameter	160mm	160mm	160mm	160mm
4 Jaw Chuck Diameter	200mm	200mm	200mm	200mm
Spindle Steps / Speed Range	9 (82-2000rpm)	9 (82-2000rpm)	18 (50-2000rpm)	18 (50-2000rpm)
Motor Power	2.25kW / 3HP	1.5kW / 2hp	2.25kW / 3HP	2.25kW / 3HP
Voltage	415V	240V	415V	415V
Weight (nett)	660Kg	720Kg	720Kg	720Kg
