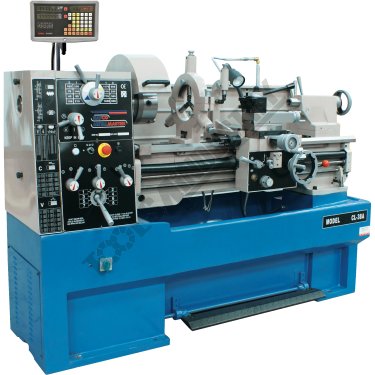

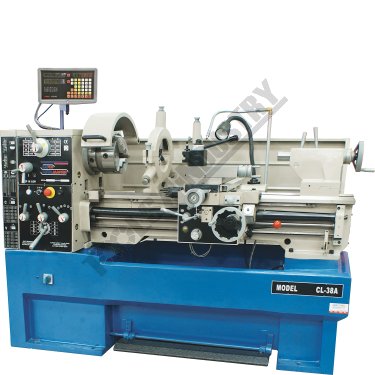

L191D Centre Lathe CL-38A

Centre Lathe

Features

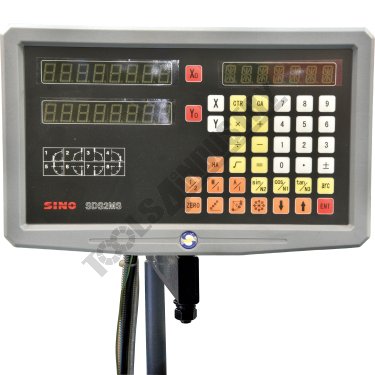

- 2 axis digital readout system

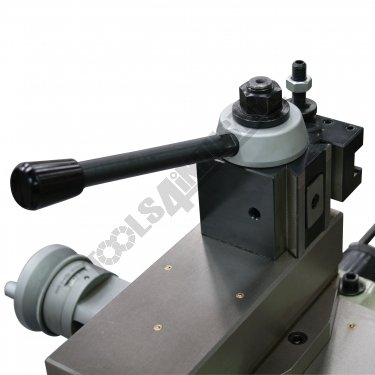

- Quick change toolpost
- Triple bearings supporting headstock spindle
- Adjustable taper roller bearings providing spindle accuracy

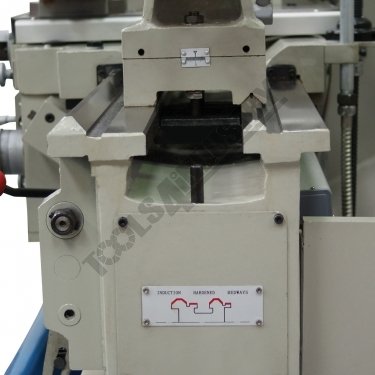

- Precision 'V'-beds & headstock gears are all hardened & ground
- One piece cast iron base increases rigidity
- Overload protection on drive motor and coolant system

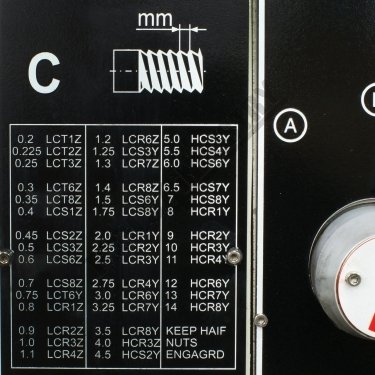

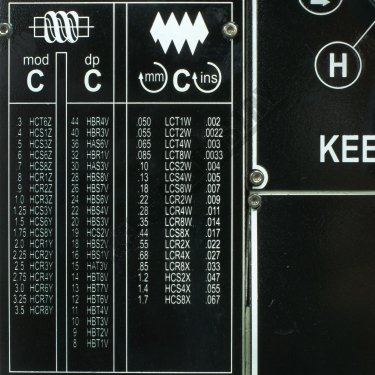

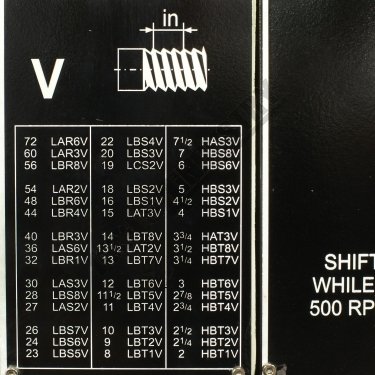

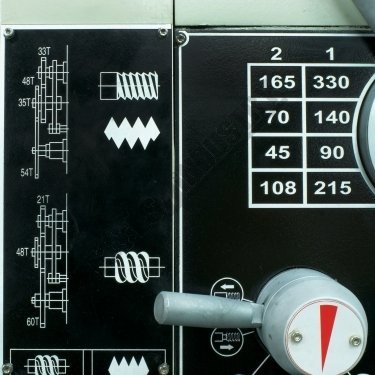

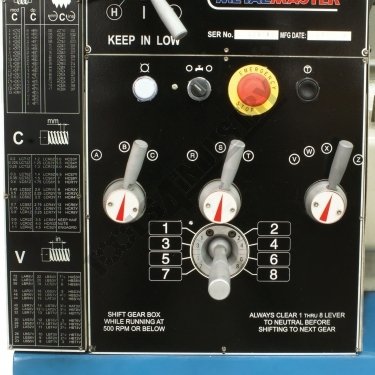

- Universal enclosed gearbox incorporating metric & imperial thread capabilities

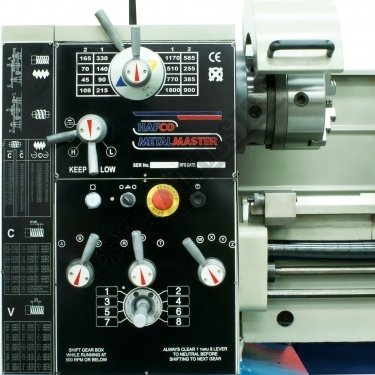

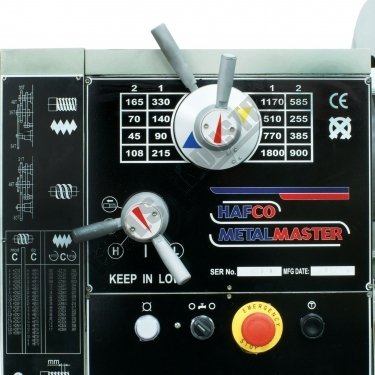

- Inching button incorporated on the control panel for convenient spindle speed selection

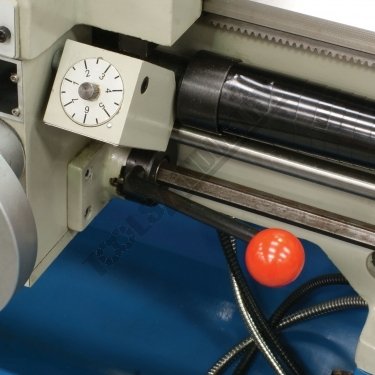

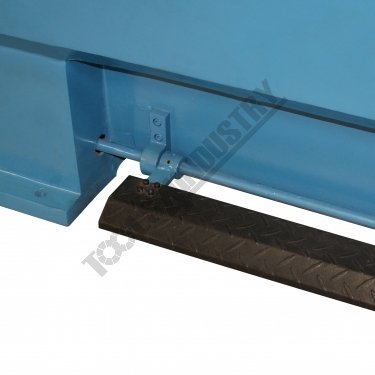

- Foot operated spindle brake with safety cut out switch
- 250mm wide induction hardened heavy duty cast iron bed
- Removable gap bed allowing work piece to swing up to 580mm

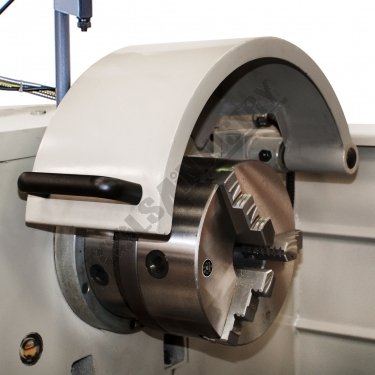

- Chuck guard fitted with safety micro switch

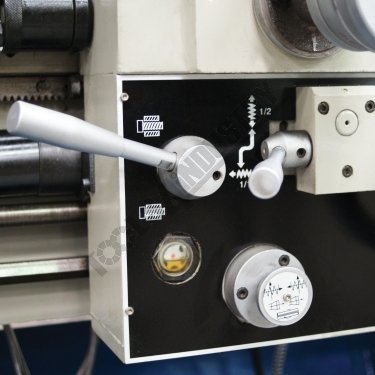

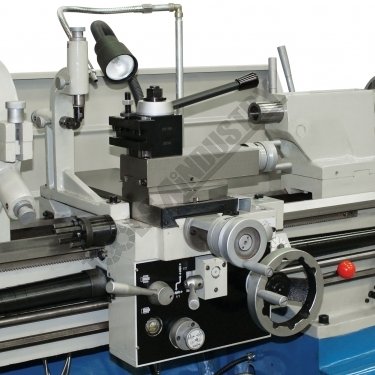

- Powered longitudinal and cross feeds

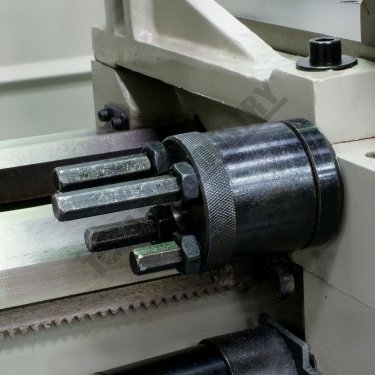

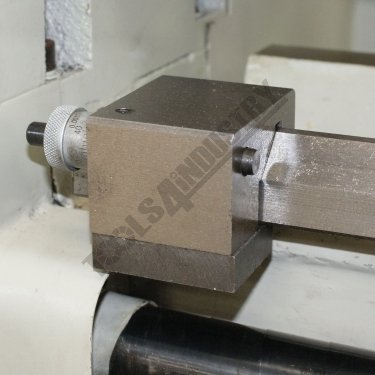

- Adjustable 6 position length-stop on bed-way for accurate repetitive operation

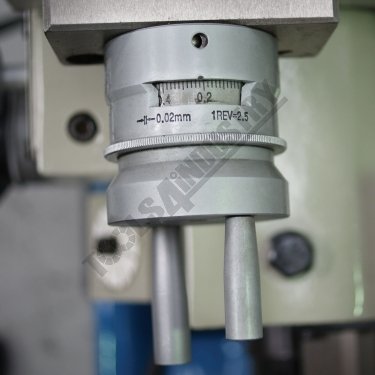

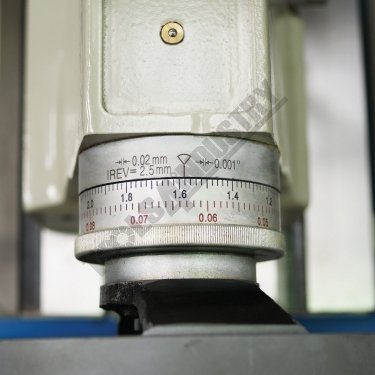

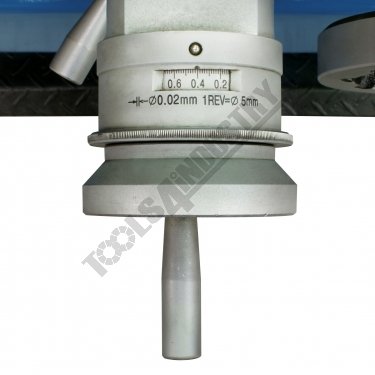

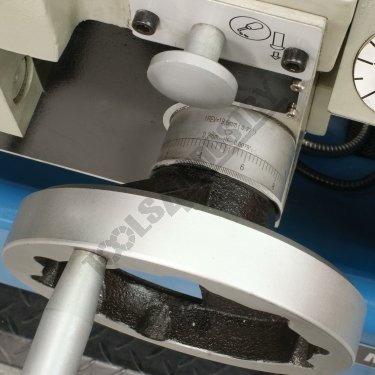

- Dual calibrated dials incorporating metric & imperial graduations
- Coolant system with flexible hose enabling operator to manipulate flow direction
- Oil sight glass for head stock and gearbox

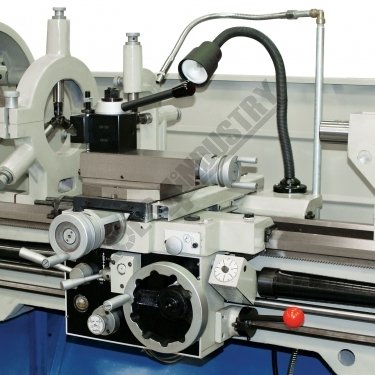

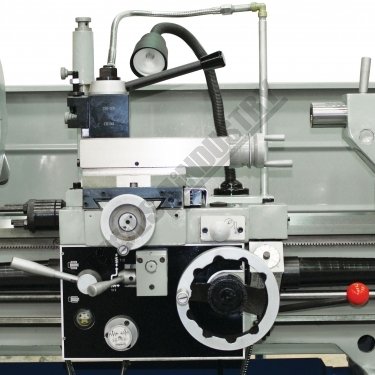

- Low voltage halogen work light

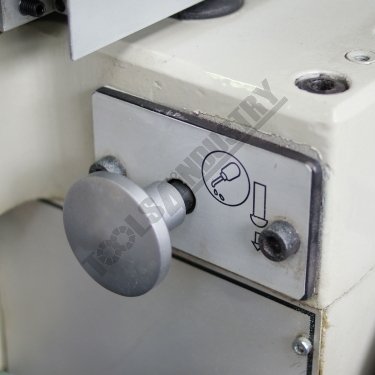

- Lubrication pump on saddle oiling slides
- D1-6 camlock spindle for quick chuck removal
- Large 52mm spindle bore
- 2 speed, 5.5hp, 415V motor

Includes
• 2 Axis digital readout system
• Quick change toolpost
• 200mm 3-jaw chuck with reverse jaws
• 250mm 4-jaw chuck
• Face plate
• Fixed steady with roller bearings
• Travelling steady with roller bearings
• Dead centres

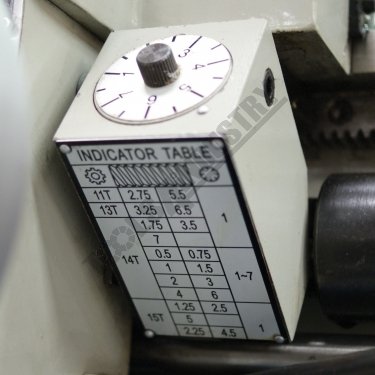

• Thread chasing dial
• Foot brake
• Coolant system
• Work light
• Rear splash guard
• Spindle reducing bush

Array ( [44] => K036 [5] => K037 [45] => K038 [77] => L171 [67] => L171D [78] => L172 [58] => L172D [66] => L173 [76] => L173D [47] => L174 [3] => L179 [4] => L179D [6] => L179E [2] => L179F [46] => L179G [50] => L186 [7] => L186D [54] => L187 [8] => L187D [73] => L188 [62] => L188D [72] => L189 [63] => L189D [51] => L190 [15] => L191D [0] => L201 [1] => L201D [48] => L240 [11] => L240D [49] => L242 [12] => L242D [13] => L244 [14] => L244D [55] => L251D [18] => L254D [10] => L563D [9] => L565D [71] => L580 [53] => L580D [56] => L582D [33] => L586 [36] => L587 [35] => L590 [38] => L591 [39] => L592 [41] => L596 [42] => L597 [43] => L598 [60] => L600 [52] => L600D [16] => L601D [70] => L604 [79] => L604D [19] => L605D [65] => L614 [75] => L616 [64] => L617 [74] => L618 [34] => L620 [37] => L621 [40] => L623 [69] => L625 [22] => L625D [68] => L626 [24] => L626D [27] => L627D [31] => L628D [17] => L632D [20] => L634D [28] => L639D [32] => L642D [21] => L661D [23] => L662D [26] => L664D [25] => L665D [30] => L666D [29] => L667D [61] => L670D [57] => L672D [59] => L673D )
All Sorts: Array ( [0] => K036 [1] => K037 [2] => K038 [3] => L171 [4] => L171D [5] => L172 [6] => L172D [7] => L173 [8] => L173D [9] => L174 [10] => L179 [11] => L179D [12] => L179E [13] => L179F [14] => L179G [15] => L186 [16] => L186D [17] => L187 [18] => L187D [19] => L188 [20] => L188D [21] => L189 [22] => L189D [23] => L190 [24] => L191D [25] => L201 [26] => L201D [27] => L240 [28] => L240D [29] => L242 [30] => L242D [31] => L244 [32] => L244D [33] => L251D [34] => L254D [35] => L563D [36] => L565D [37] => L580 [38] => L580D [39] => L582D [40] => L586 [41] => L587 [42] => L590 [43] => L591 [44] => L592 [45] => L596 [46] => L597 [47] => L598 [48] => L600 [49] => L600D [50] => L601D [51] => L604 [52] => L604D [53] => L605D [54] => L614 [55] => L616 [56] => L617 [57] => L618 [58] => L620 [59] => L621 [60] => L623 [61] => L625 [62] => L625D [63] => L626 [64] => L626D [65] => L627D [66] => L628D [67] => L632D [68] => L634D [69] => L639D [70] => L642D [71] => L661D [72] => L662D [73] => L664D [74] => L665D [75] => L666D [76] => L667D [77] => L670D [78] => L672D [79] => L673D )
All Codes + All Sorts: Array ( [K036] => K036 [K037] => K037 [K038] => K038 [L171] => L171 [L171D] => L171D [L172] => L172 [L172D] => L172D [L173] => L173 [L173D] => L173D [L174] => L174 [L179] => L179 [L179D] => L179D [L179E] => L179E [L179F] => L179F [L179G] => L179G [L186] => L186 [L186D] => L186D [L187] => L187 [L187D] => L187D [L188] => L188 [L188D] => L188D [L189] => L189 [L189D] => L189D [L190] => L190 [L191D] => L191D [L201] => L201 [L201D] => L201D [L240] => L240 [L240D] => L240D [L242] => L242 [L242D] => L242D [L244] => L244 [L244D] => L244D [L251D] => L251D [L254D] => L254D [L563D] => L563D [L565D] => L565D [L580] => L580 [L580D] => L580D [L582D] => L582D [L586] => L586 [L587] => L587 [L590] => L590 [L591] => L591 [L592] => L592 [L596] => L596 [L597] => L597 [L598] => L598 [L600] => L600 [L600D] => L600D [L601D] => L601D [L604] => L604 [L604D] => L604D [L605D] => L605D [L614] => L614 [L616] => L616 [L617] => L617 [L618] => L618 [L620] => L620 [L621] => L621 [L623] => L623 [L625] => L625 [L625D] => L625D [L626] => L626 [L626D] => L626D [L627D] => L627D [L628D] => L628D [L632D] => L632D [L634D] => L634D [L639D] => L639D [L642D] => L642D [L661D] => L661D [L662D] => L662D [L664D] => L664D [L665D] => L665D [L666D] => L666D [L667D] => L667D [L670D] => L670D [L672D] => L672D [L673D] => L673D )
Current: 7
Max: 16
Back: -1
Next: 1
First: L187D
Second: L191D
Third: L201
Fourth: L201D

Code:	L191D
Model:	CL-38A
Capacity:	410 x 1000mm - 52mm Bore
Weight (Nett):	1550 Kg
Weight (Cubic):	3.861 m³
Weight (Freight):	1550 Kg
Dimensions:	260 x 90 x 165
In Stock:	Yes

CODE	L187D	L191D	L201	L201D
Model	AL-540A	CL-38A	AL-1324	AL-1324
Digital Readout System Fitted	Yes	Yes	Optional	Yes
Quick Change Toolpost Fitted	Yes	Yes	Optional	Optional

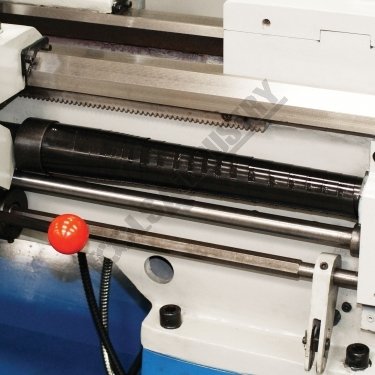

Leadscrew Covers Fitted	Yes	~	Yes	Yes
Taper Turning Attachment	~	~	Optional	Optional
Tool Height To Suit	16mm	20mm	16mm	16mm
Distance Between Centres	1000mm	1000mm	600mm	600mm
Swing Over Bed	356mm	410mm	330mm	330mm
Swing Over Cross-slide	220mm	255mm	200mm	200mm
Swing In Gap	506mm	580mm	490mm	490mm
Centre Height	178mm	205mm	165mm	165mm
Spindle Bore	38mm	52mm	40mm	40mm
Camlock Spindle Size	D1-4	D1-6	D1-4	D1-4
Bed Width	206mm	250mm	190mm	190mm
Head Stock Spindle Taper	5MT	6MT	5MT	5MT

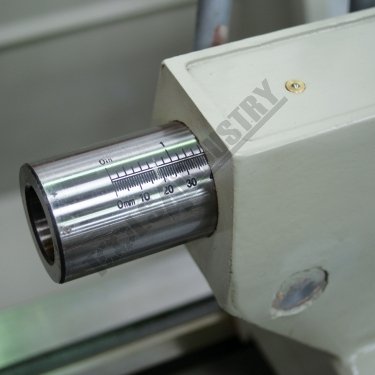

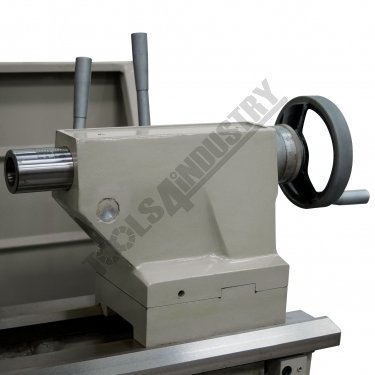

Tail Stock Taper	3MT	4MT	3MT	3MT
Cross Slide Travel	180mm	210mm	175mm	175mm
Compound Slide Travel	100mm	140mm	100mm	100mm
Lead Screw	Metric	Metric	Metric	Metric
Cross Feed Range (X-Axis)	0.015-0.220mm/rev	0.025-0.85mm/rev	0.034~0.468mm/rev	0.034~0.468mm/rev
Longitudinal Feed Range (Z-Axis)	0.043-0.653mm/rev	0.05-1.7mm/rev	0.068~0.936mm/rev	0.068~0.936mm/rev
Metric Thread Steps & Pitch Range	39 (0.45-7.5mm)	39 (0.2-14mm)	30(0.4-7.0mm)	30(0.4-7.0mm)
Imperial Thread Steps & TPI Range	28 (4-112TPI)	45 (2-72TPI)	32(4-56TPI)	32(4-56TPI)
3 Jaw Chuck Diameter	160mm	200mm	160mm	160mm
4 Jaw Chuck Diameter	200mm	250mm	200mm	200mm
Spindle Steps / Speed Range	8 (100-2000rpm)	16 (45-1800rpm)	9 (82-2000rpm)	9 (82-2000rpm)
Motor Power	2.25kW / 3hp	4kW / 5.5hp	2.25kW / 3HP	2.25kW / 3HP
Voltage	240V	415V	415V	415V
Weight (nett)	880Kg	1550Kg	660Kg	660Kg
