L141 Bench Lathe AL-320G
Bench Lathe

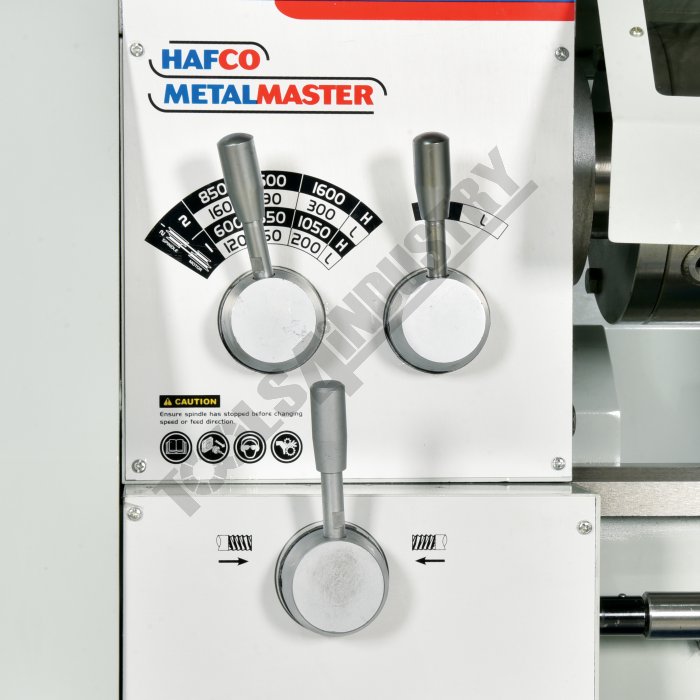

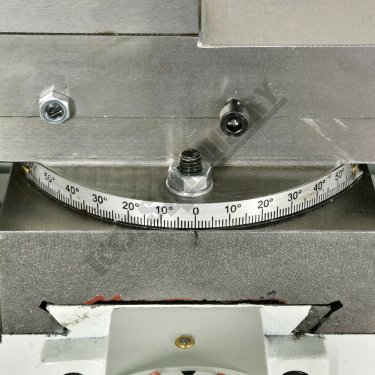

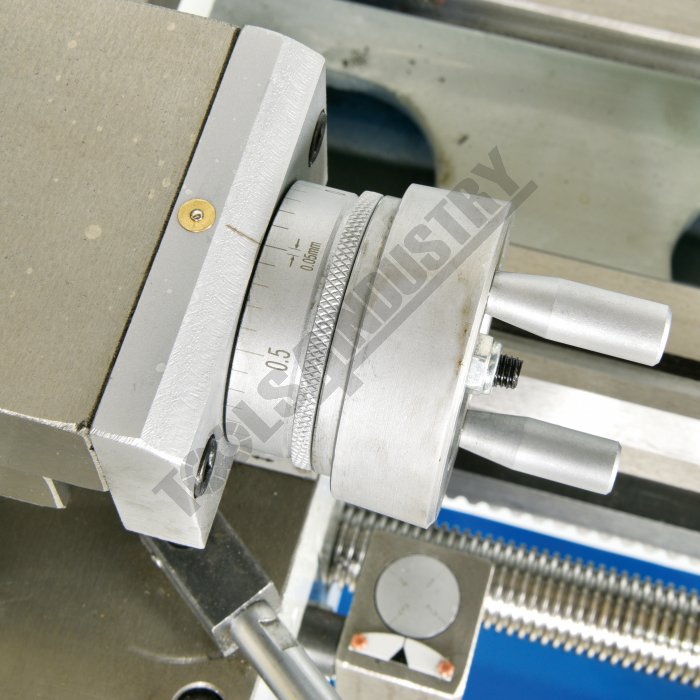

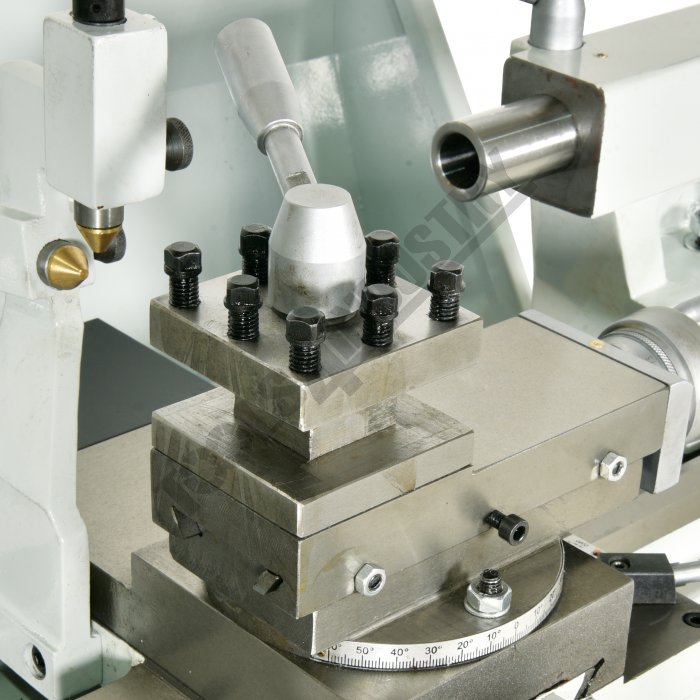

Spindle Speed Lever Selectors 12 speeds (60 1600rpm)Directional Feed Control leverForward Reverse Switch & Emergency StopToolpostCompound Table

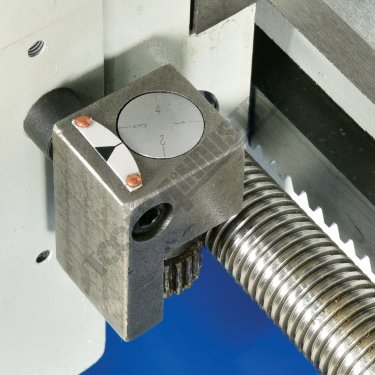

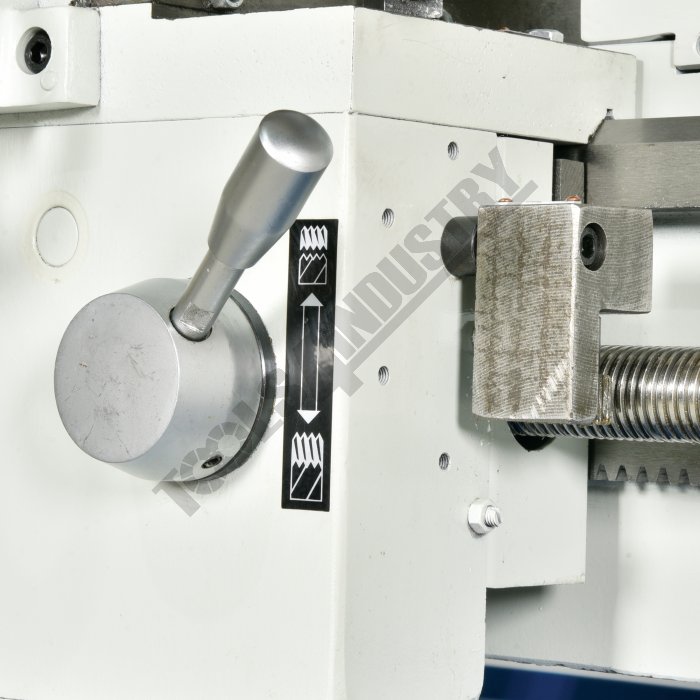

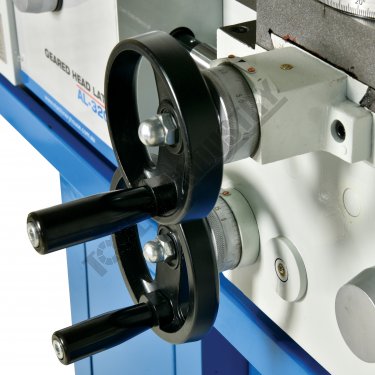

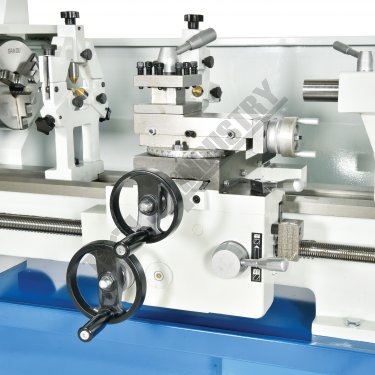

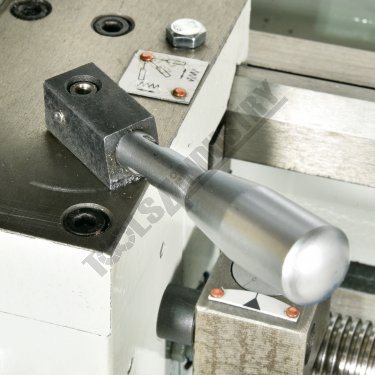

Longitudinal & Cross Feed Engagement LeverScrew Cutting Engagement LeverCross Feed HandleSaddle Hand WheelThread Chasing Dial

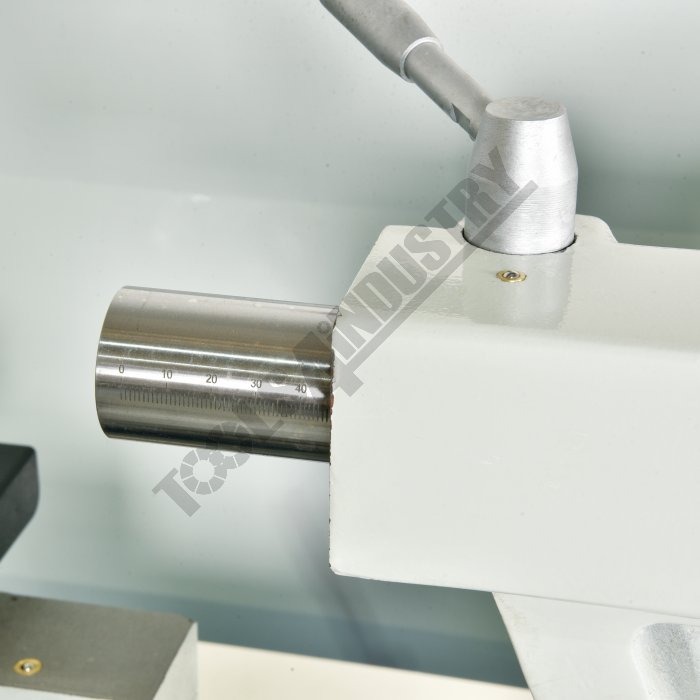

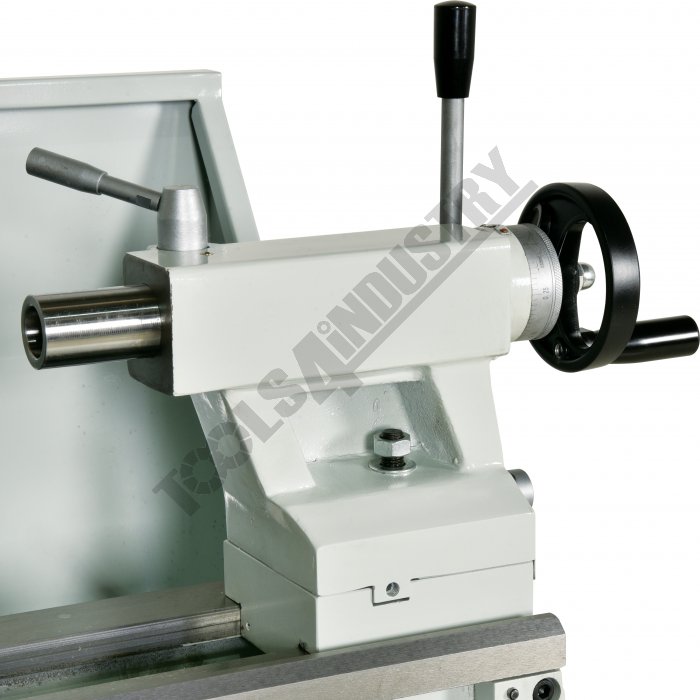

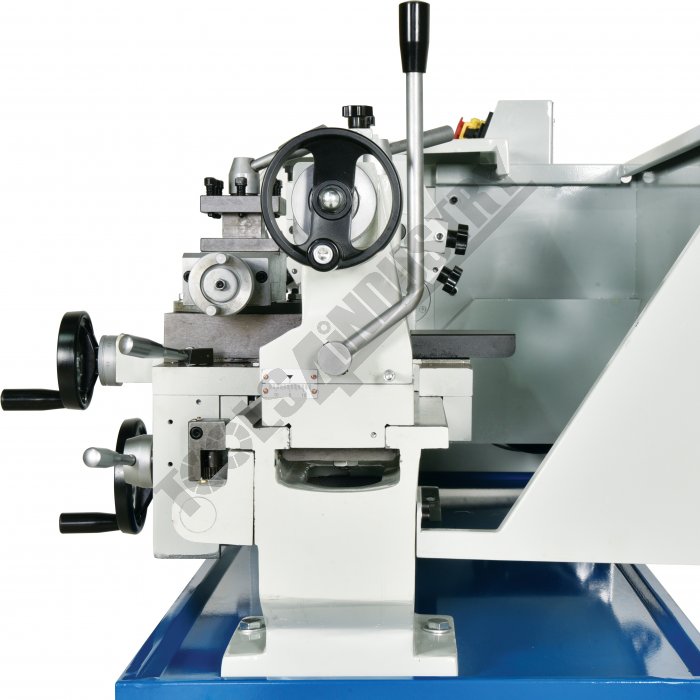

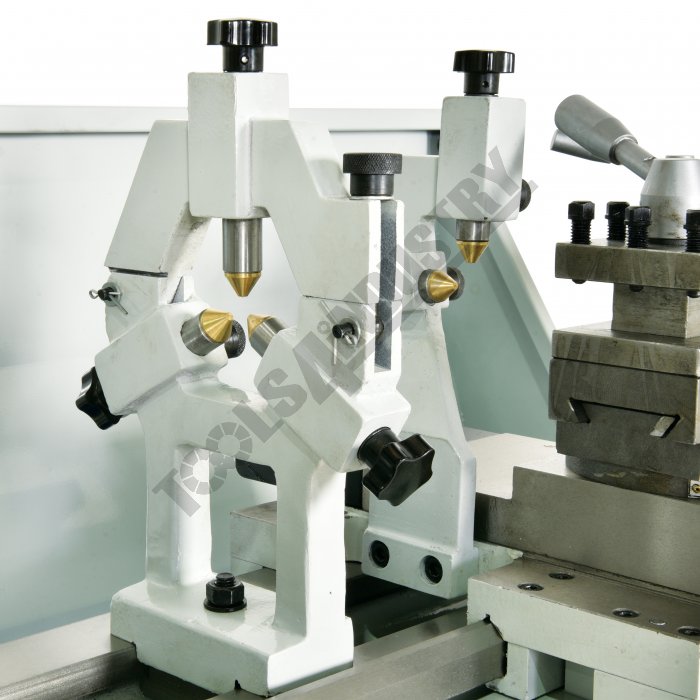

3 Point Fixed Steady2 Point Travelling SteadyTailstockTailstock Spindle
Code:L141
Model:AL-320G
Capacity:320 x 600mm
Weight (Nett):280 Kg
Weight (Cubic):0.730 m3
Weight (Freight):280 Kg
Dimensions:137 x 73 x 73
In Stock:Contact your Dealer

Bench Lathe

Features

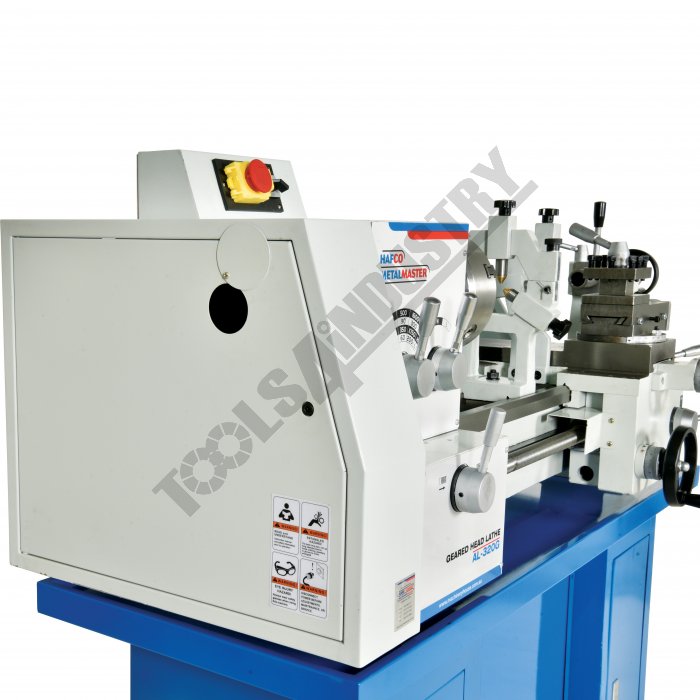

- Geared headstock for quick change of spindle speeds
- 38mm spindle bore

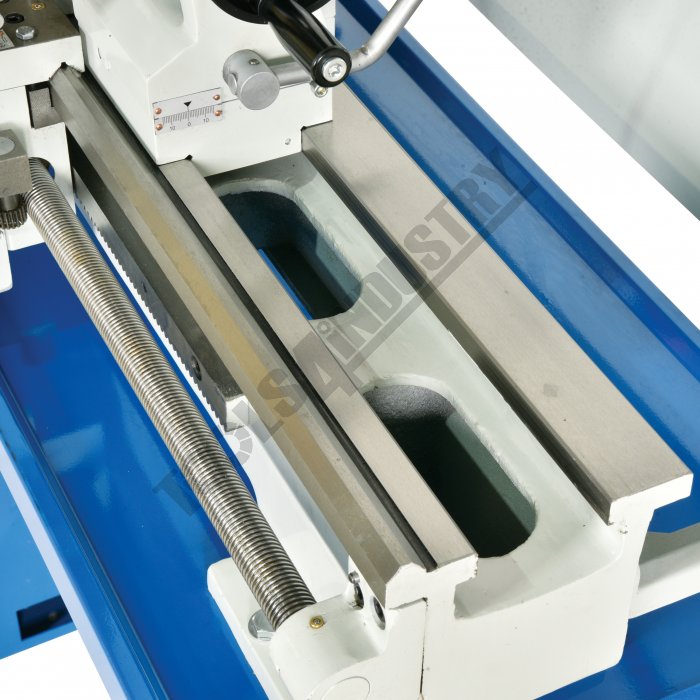

- Hardened and ground bed
- Adjustable taper roller spindle bearings
- Metric & imperial thread cutting
- Powered longitudinal and cross feed
- Head stock oil sight glass
- Thread chasing dial
- Quick action tailstock locking lever
- Forward/reverse spindle switch

Includes

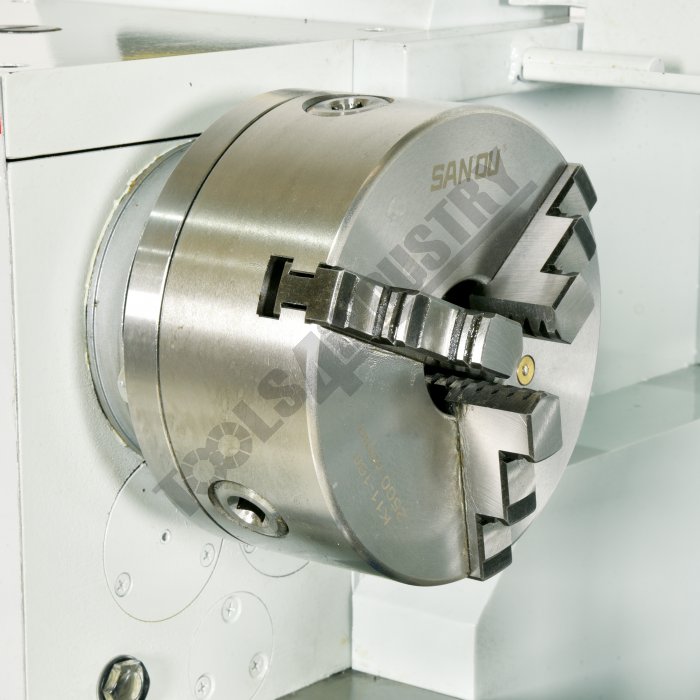

• 160mm 3-jaw chuck with reverse jaws
• 200mm 4-jaw chuck
• Face plate
• Fixed steady
• Travelling steady
• Change gears
• Dead centre
• Rear splash guard & swarf tray
• Spanners
• Tool box

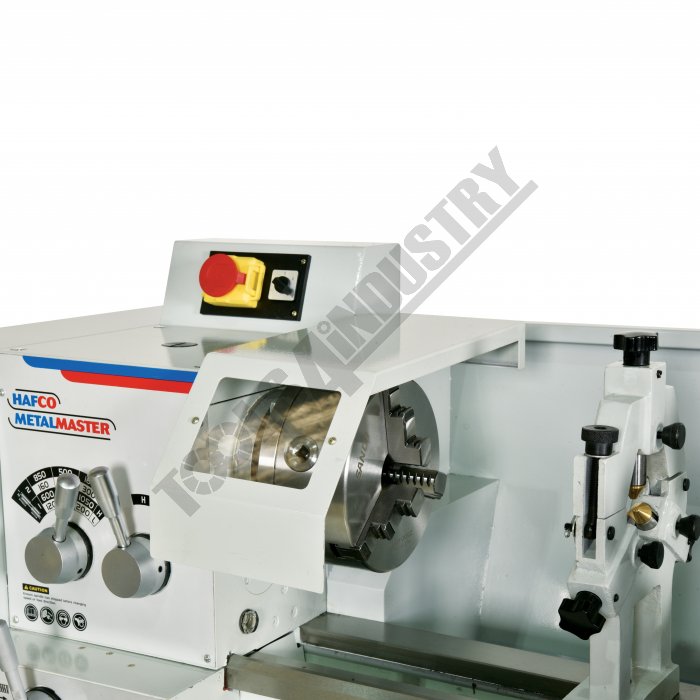

• Safety chuck guard
• Instruction booklet

Optional Accessories

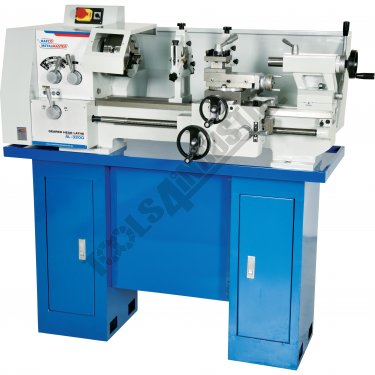

• Lathe stand to suit (L142)

Array
(
    [4] => L141
    [2] => L148
    [3] => L149
    [10] => L1542
    [1] => L157
    [5] => L183
    [0] => L194
    [8] => L237
    [9] => L237D
    [6] => L682
    [7] => L682D
)

All Sorts: Array
(
    [0] => L141
    [1] => L148
    [2] => L149
    [3] => L1542
    [4] => L157
    [5] => L183
    [6] => L194
    [7] => L237
    [8] => L237D
    [9] => L682
    [10] => L682D
)

All Codes +  All Sorts: Array
(
    [L141] => L141
    [L148] => L148
    [L149] => L149
    [L1542] => L1542
    [L157] => L157
    [L183] => L183
    [L194] => L194
    [L237] => L237
    [L237D] => L237D
    [L682] => L682
    [L682D] => L682D
)

Current: 1
Max: 10
Back: NO
Next: 1
First: L141
Second: L148
Third: L149
Fourth: L157


CODEL141L148L149L157
ModelAL-320GAL-60AL-250GAL-50GA
Digital Readout System FittedOptionalOptionalOptionalOptional
Quick Change Toolpost FittedOptionalOptionalOptionalOptional
Leadscrew Covers Fitted~YesYes~
Tool Height To Suit12mm12mm16mm10mm
Distance Between Centres600mm550mm500mm500mm
Swing Over Bed320mm250mm250mm230mm
Swing Over Cross-slide210mm150mm150mm130mm
Swing In Gap~~~~
Centre Height160mm125mm125mm115mm
Spindle Bore38mm20mm26mm20mm
Spindle Nose TypeFixedAmerican TaperFixedThreaded
Bed Width160mm135mm140mm115mm
Headstock Taper5MT3MT4MT3MT
Tailstock Taper3MT2MT3MT2MT
Cross-slide Travel200mm105mm145mm115mm
Compound-slide Travel100mm75mm75mm50mm
Leadscrew TypeMetricImperialMetricImperial
Cross Feed Range (X-Axis)0.022 - 0.15mm/rev~0.017 - 0.187mm/rev~
Longitudinal Feed Range (Z-Axis)0.1 - 1.4mm/rev0.1 - 0.2mm/rev0.035 - 0.375mm/rev0.1 - 0.2mm/rev
Metric Thread Steps & Pitch Range11 (0.5 - 4mm)11 (0.4 - 3mm)15 (0.25 - 2.5mm)11 (0.5 - 3mm)
Imperial Thread Steps & TPI Range27 (9 - 48tpi)27 (10 - 44tpi)~27 (8 - 56tpi)
Three Jaw Chuck Diameter160mm125mm130mm100mm
Four Jaw Chuck Diameter160mmOptionalOptional190mm
Spindle Steps / Speed Range12 (60 - 1600rpm)6 (125 - 2000rpm)12 (80 - 1600rpm)6 (100 - 1800rpm)
Motor Power0.75kW / 1hp0.55kW / 0.75hp0.75kW / 1hp0.55kW / 0.75hp
Voltage240V240V240V240V
Weight (Nett)280kg160kg180kg105kg
