Cutting Tools > Lathe Cutting Tools > Inserts - Parting

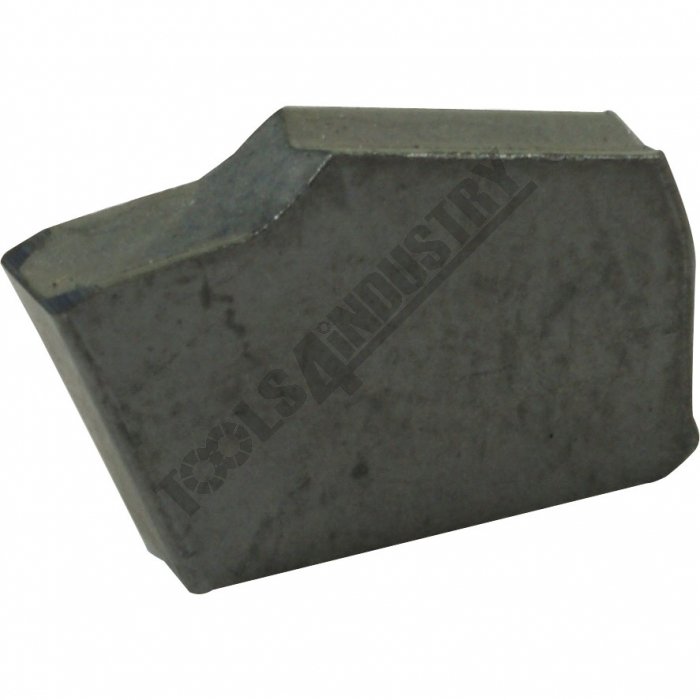

L0671 Parting Insert GCMX20EN
Parting Insert

Tip
Code:L0671
Model:GCMX20EN
Capacity:2.2 x 9mm (Grade S5K)
Weight (Nett):0.02 Kg
Weight (Cubic):0.000 m3
Weight (Freight):0.02 Kg
Dimensions:9.8 x 4 x 1.1
In Stock:Yes

Parting Insert

Description
INDEXABLE INSERTS
VANDURIT CARBIDE is manufactured in Italy

Features
- S5K - Uncoated grade: Suitable for severe applications at relatively low cutting speeds on plain carbon, alloy steels and stainless steels

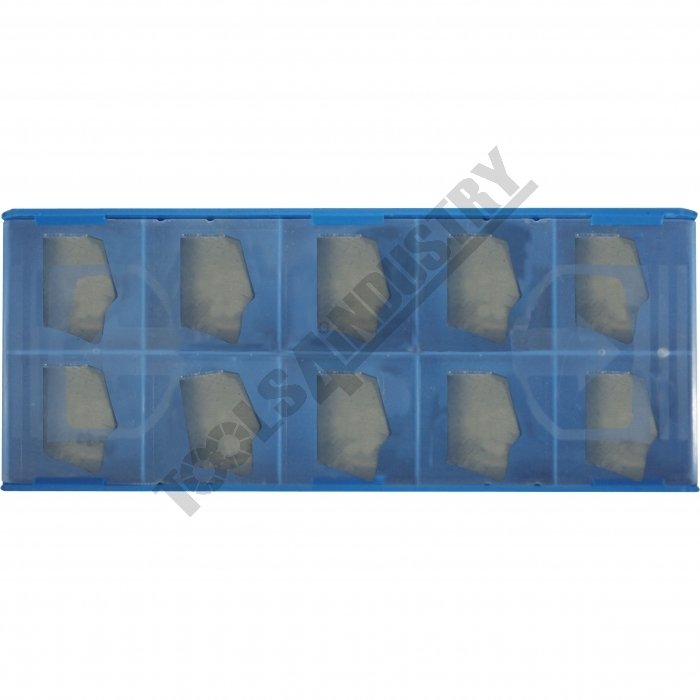

- Packet of 10

Array
(
    [4] => L0512
    [5] => L0513
    [0] => L067
    [1] => L0671
    [2] => L068
    [3] => L0681
)

All Sorts: Array
(
    [0] => L0512
    [1] => L0513
    [2] => L067
    [3] => L0671
    [4] => L068
    [5] => L0681
)

All Codes +  All Sorts: Array
(
    [L0512] => L0512
    [L0513] => L0513
    [L067] => L067
    [L0671] => L0671
    [L068] => L068
    [L0681] => L0681
)

Current: 4
Max: 6
Back: -1
Next: 1
First: L067
Second: L0671
Third: L068
Fourth: L0681
CODEISOGradeLengthSD
L0512A2022N00CR02K502511mm2.4mm7.6°
L0513A2030N00CR02K502511mm3.1mm7.6°
L067GCMX20ENV1349mm2.2mm7º
L0671GCMX20ENS5K9mm2.2mm7º
L068GCMX30ENV23411mm3.1mm7º
L0681GCMX30ENS5K11mm3.1mm7º

Recommended Accessories

L027 - 26mm Blade Parting Block 12mm
L028 - 26mm Blade Parting Block 16mm
L029 - 26mm Blade Parting Block 20mm
