L058 Internal Threading Insert 16IR

Cutting Tools > Lathe Cutting Tools > Inserts - Threading
L058 Internal Threading Insert 16IR

Code:	L058
Model:	16IR
Capacity:	60º (Grade TT7010)
Weight (Nett):	0.02 Kg
Weight (Cubic):	0.000 m³
Weight (Freight):	0.02 Kg
Dimensions:	9.8 x 4 x 1.1
In Stock:	Yes

Internal Threading Insert

Features
- 0.5-3.0mm (METRIC)

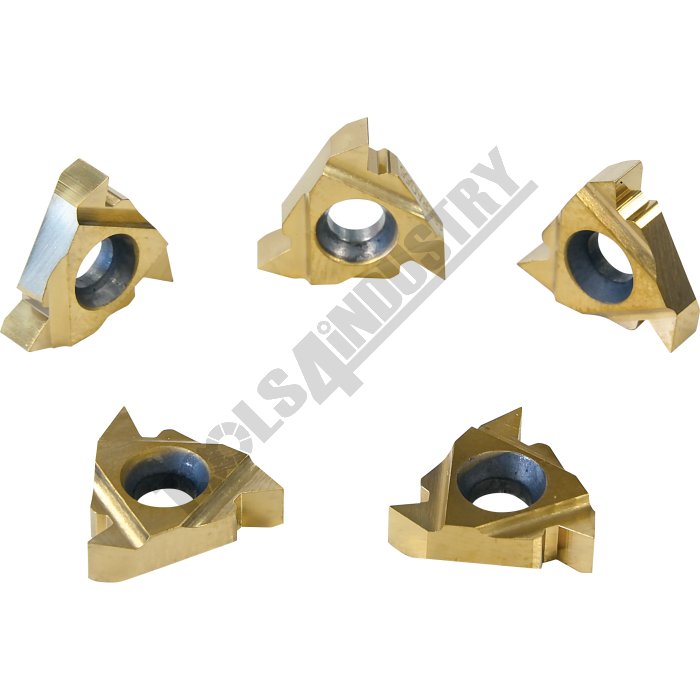

- Packet x 5
- Grade: TT7010

Array
(
    [0] => L0545
    [1] => L0546
    [2] => L055
    [3] => L056
    [4] => L057
    [5] => L058
)

All Sorts: Array
(
    [0] => L0545
    [1] => L0546
    [2] => L055
    [3] => L056
    [4] => L057
    [5] => L058
)

All Codes +  All Sorts: Array
(
    [L0545] => L0545
    [L0546] => L0546
    [L055] => L055
    [L056] => L056
    [L057] => L057
    [L058] => L058
)

Current: 6
Max: 6
Back: -1
Next: NO
First: L055
Second: L056
Third: L057
Fourth: L058

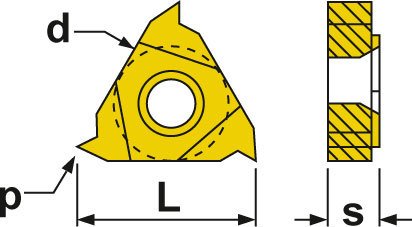

CODE	Type	ISO	Grade	p	TPI	Pitch/range	I	s	d
L0545	External	11ER	GP	55º	48-16TPI	0.5-1.5mm	11	3.18	6.35
L0546	External	11ER	GP	60º	48-16TPI	0.5-1.5mm	11	3.18	6.35
L055	External	16ERAG-55	TT7010	55º	48-8TPI	0.5-3.0mm	16.5mm	3.67mm	9.52mm
L056	External	16ERAG-60	TT7010	60º	48-8TPI	0.5-3.0mm	16.5mm	3.67mm	9.52mm
L057	Internal	16IRAG-55	TT7010	55º	48-8TPI	0.5-3.0mm	16.5mm	3.67mm	9.52mm
L058	Internal	16IR	TT7010	60º	48-8TPI	0.5-3.0mm	16.5mm	3.67mm	9.52mm

Recommended Accessories

L036 - SINR1516-16 Internal Threading 16mm Bar (13mm step down)
L037 - SINR2016-16 Internal Threading 16mm Bar
L038 - SINR2420-16 Internal Threading 20mm Bar
