L0546 External Threading Insert 11ER

Cutting Tools > Lathe Cutting Tools > Inserts - Threading

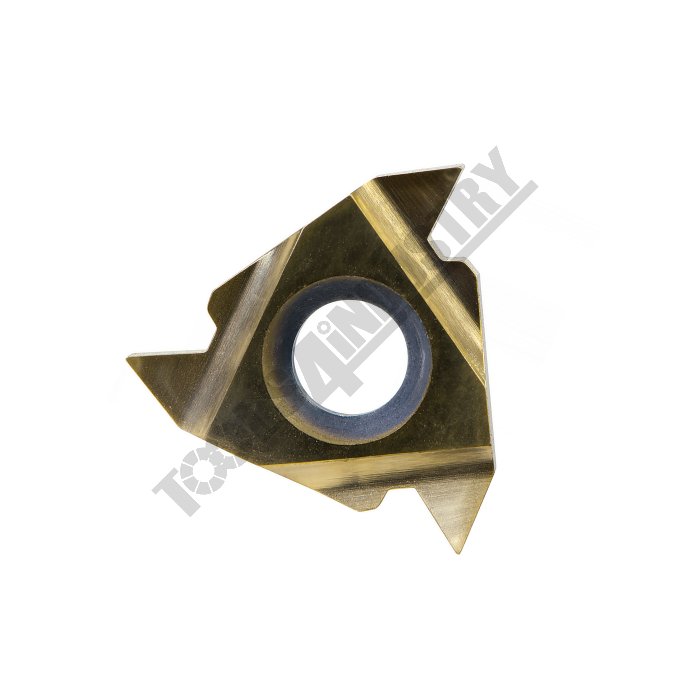

L0546 External Threading Insert 11ER

Code:	L0546
Model:	11ER
Capacity:	60º
Weight (Nett):	0.02 Kg
Weight (Cubic):	0.000 m³
Weight (Freight):	0.02 Kg
Dimensions:	9.8 x 4 x 1.1
In Stock:	Yes

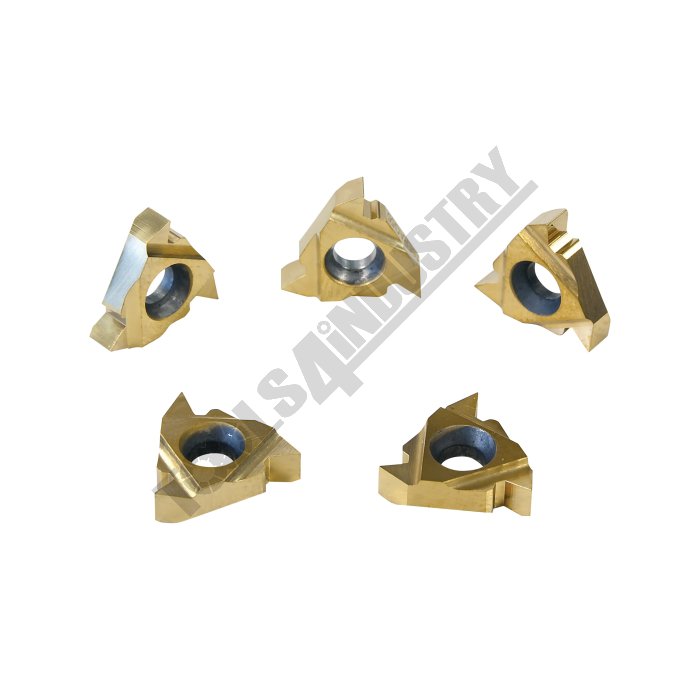

External Threading Insert

Features
- 60º will cut 48-16TPI (IMPERIAL) only
- Packet x 5
- Grade: General Purpose

Array
(
    [0] => L0545
    [1] => L0546
    [2] => L055
    [3] => L056
    [4] => L057
    [5] => L058
)

All Sorts: Array
(
    [0] => L0545
    [1] => L0546
    [2] => L055
    [3] => L056
    [4] => L057
    [5] => L058
)

All Codes +  All Sorts: Array
(
    [L0545] => L0545
    [L0546] => L0546
    [L055] => L055
    [L056] => L056
    [L057] => L057
    [L058] => L058
)

Current: 2
Max: 6
Back: -1
Next: 1
First: L0545
Second: L0546
Third: L055
Fourth: L056

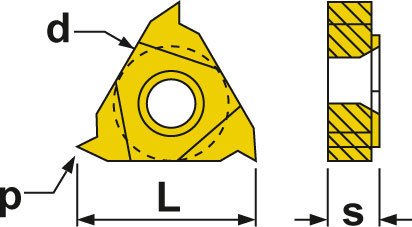

CODE	Type	ISO	Grade	p	TPI	Pitch/range	I	s	d
L0545	External	11ER	GP	55º	48-16TPI	0.5-1.5mm	11	3.18	6.35
L0546	External	11ER	GP	60º	48-16TPI	0.5-1.5mm	11	3.18	6.35
L055	External	16ERAG-55	TT7010	55º	48-8TPI	0.5-3.0mm	16.5mm	3.67mm	9.52mm
L056	External	16ERAG-60	TT7010	60º	48-8TPI	0.5-3.0mm	16.5mm	3.67mm	9.52mm
L057	Internal	16IRAG-55	TT7010	55º	48-8TPI	0.5-3.0mm	16.5mm	3.67mm	9.52mm
L058	Internal	16IR	TT7010	60º	48-8TPI	0.5-3.0mm	16.5mm	3.67mm	9.52mm
