L016 Left Hand Turning Tool Holder STGCL1212F11

Cutting Tools > Lathe Cutting Tools > Tool Holders - Insert Type - Turning
L016 Left Hand Turning Tool Holder STGCL1212F11

Code:

L016

Model:

STGCL1212F11

Capacity:

12mm

Weight (Nett):

0.14 Kg

Weight (Cubic):

0.000 m³

Weight (Freight):

0.14 Kg

Dimensions:

12 x 2.5 x 2.3

In Stock:

Yes

Instruction Sheets

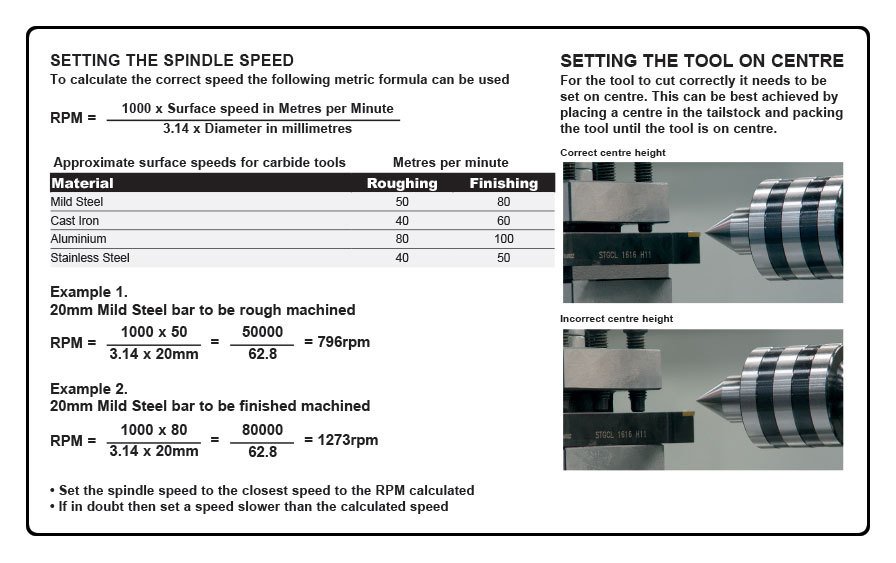

Technical Information [160.95 KB]

Left Hand Turning Tool Holder

Description
Quality Tipped Tool Holders ISO Standard to suit Tungsten Carbide Indexable Insert Tips.

NOTE: Inserts not included with Toolholders

Use insert TCMT 110204 (L062)

Features
- Positive rake turning tool holder with 90º approach angle
- Suitable for low powered machines
- Left hand tool holder suitable for facing operations

Array
(
    [0] => L012
    [1] => L0121
    [2] => L0122
    [3] => L0123
    [4] => L015
    [5] => L016
    [8] => L017
    [9] => L018
    [15] => L039
    [16] => L040
    [20] => L041
    [21] => L042
    [12] => L044
    [13] => L045
    [14] => L046
    [17] => L047
    [18] => L048
    [19] => L049
    [6] => L400
    [7] => L401
    [10] => L404
    [11] => L405
)

All Sorts: Array
(
    [0] => L012
    [1] => L0121
    [2] => L0122
    [3] => L0123
    [4] => L015
    [5] => L016
    [6] => L017
    [7] => L018
    [8] => L039
    [9] => L040
    [10] => L041
    [11] => L042
    [12] => L044
    [13] => L045
    [14] => L046
    [15] => L047
    [16] => L048
    [17] => L049
    [18] => L400
    [19] => L401
    [20] => L404
    [21] => L405
)

All Codes +  All Sorts: Array
(
    [L012] => L012
    [L0121] => L0121
    [L0122] => L0122
    [L0123] => L0123
    [L015] => L015
    [L016] => L016
    [L017] => L017
    [L018] => L018
    [L039] => L039
    [L040] => L040
    [L041] => L041
    [L042] => L042
    [L044] => L044
    [L045] => L045
    [L046] => L046
    [L047] => L047
    [L048] => L048
    [L049] => L049
    [L400] => L400
    [L401] => L401
    [L404] => L404
    [L405] => L405
)

Current: 2
Max: 18
Back: -1
Next: 1
First: L015
Second: L016
Third: L017
Fourth: L018

CODE	Size	Hand	Style	A	B	C	E	F
L015	12mm	Right	STGC	12mm	12mm	100mm	~	16mm
L016	12mm	Left	STGC	12mm	12mm	100mm	~	16mm
L017	16mm	Right	STGC	16mm	16mm	100mm	~	20mm
L018	16mm	Left	STGC	16mm	16mm	100mm	~	20mm
L039	20mm	Right	WTJN	20mm	20mm	125mm	~	25mm
L040	20mm	Left	WTJN	20mm	20mm	125mm	~	25mm
L041	25mm	Right	WTJN	25mm	25mm	150mm	~	32mm
L042	25mm	Left	WTJN	25mm	25mm	150mm	~	32mm
L044	16mm	Right	MTJN	16mm	16mm	100mm	30mm	20mm
L045	16mm	Left	MTJN	16mm	16mm	100mm	30mm	20mm
L046	20mm	Right	WTJN	20mm	20mm	125mm	32mm	20mm
L047	20mm	Left	WTJN	20mm	20mm	125mm	32mm	20mm
L048	25mm	Right	WTJN	25mm	25mm	150mm	32mm	25mm
L049	25mm	Left	WTJN	25mm	25mm	150mm	32mm	25mm
L400	12mm	Right	CTGP	12mm	12mm	80mm	20mm	16mm
L401	12mm	Left	CTGP	12mm	12mm	80mm	20mm	16mm
L404	16mm	Right	CTGP	16mm	16mm	100mm	20mm	20mm
L405	16mm	Left	CTGP	16mm	16mm	100mm	20mm	20mm

Recommended Accessories

L062 - TCMT 110204 Turning Insert 11mm (Grade CA5525)
L525 - Turning Tool Holder - Screw
L526 - Key to Suit Tool Holder
