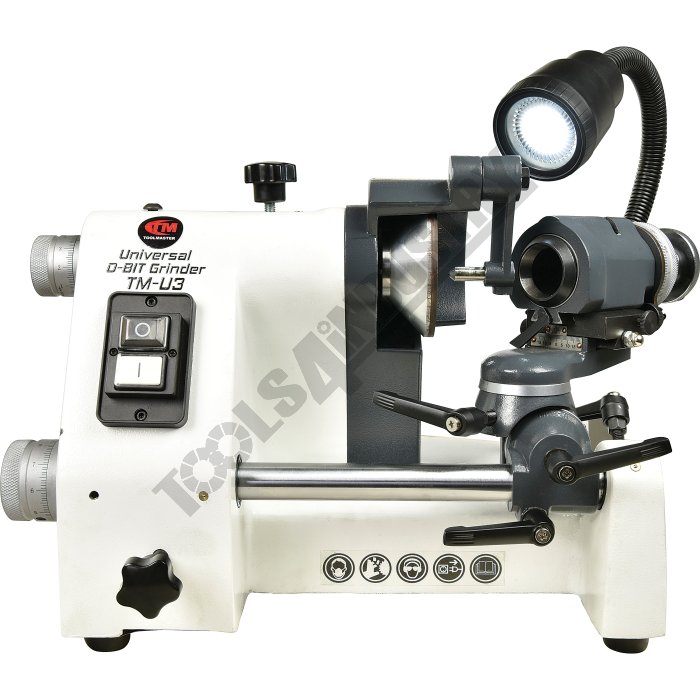

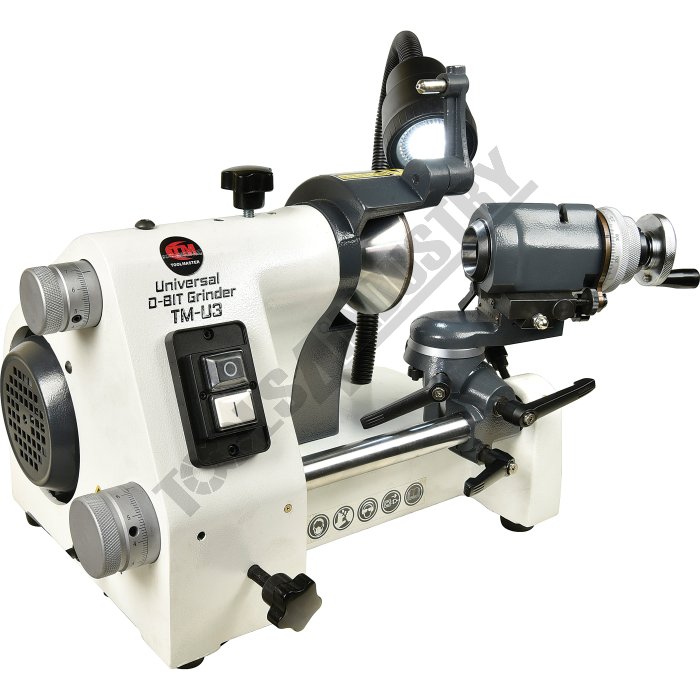

Description

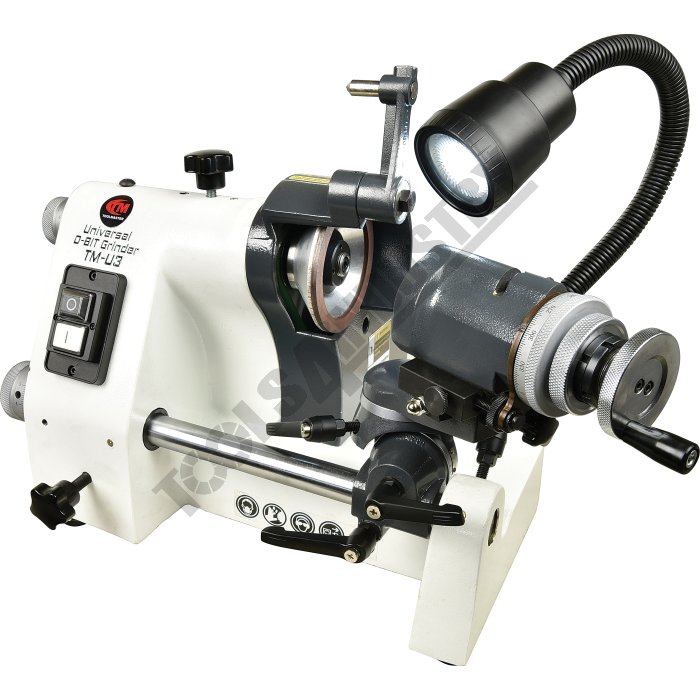

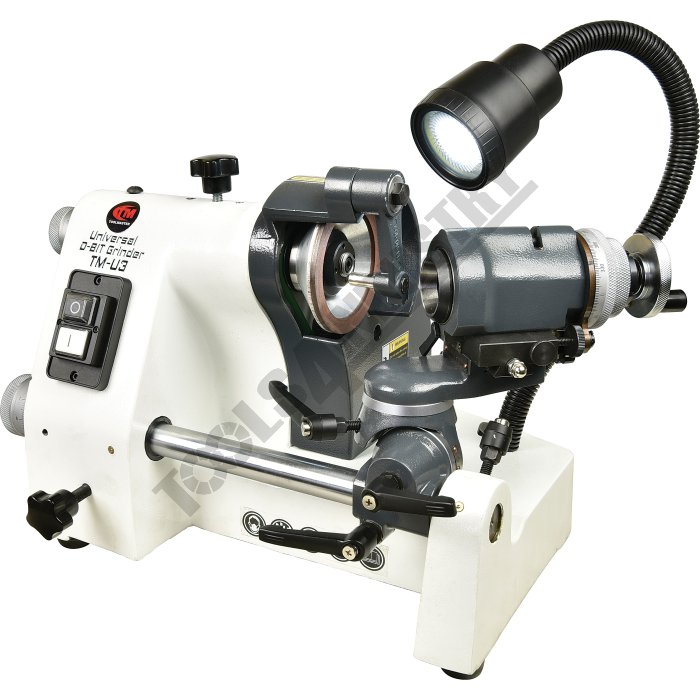

Used for grinding of HSS and carbide engraving cutters with single and multiple flutes in various shapes.
With the accessories provided the universal "D" bit grinder can be set up to grind end mills, slot drills and drill bits.
For more information see the manual.
(The manual can be found by clicking "Brochures & Downloads")
Features

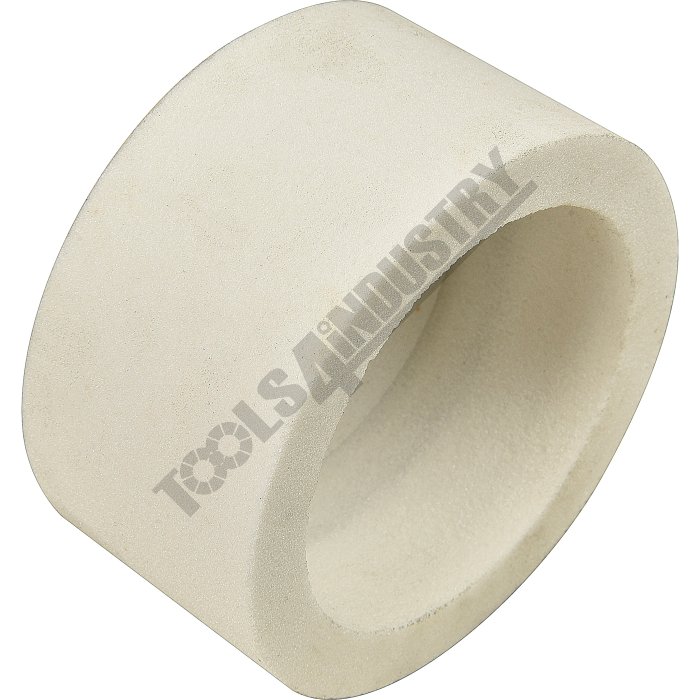

- Grinding wheel size 100 x 50 x 20mm
- Halogen Light 12V
- 180W 240V motor
- Taper angles 0 - 180º
- Relief angle 0 - 45º
- Negative angle 0 - 26º

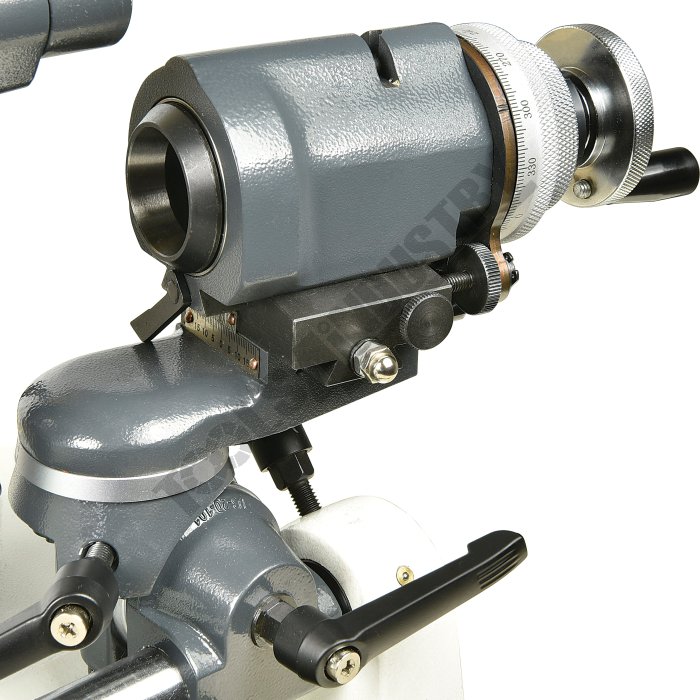

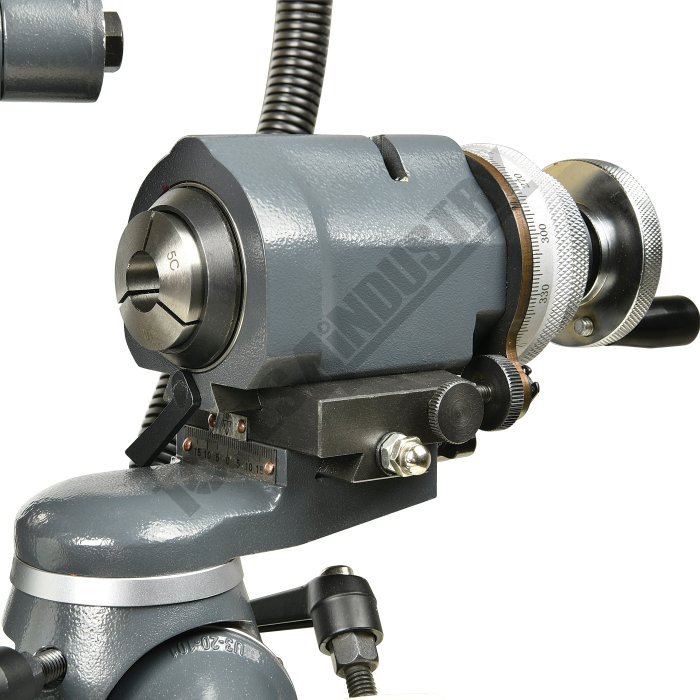

- Large range 5C collets
- Spindle speed 3600rpm
Includes
• Wheel dresser with diamond
• Wheel flange mounted
• Diamond wheel

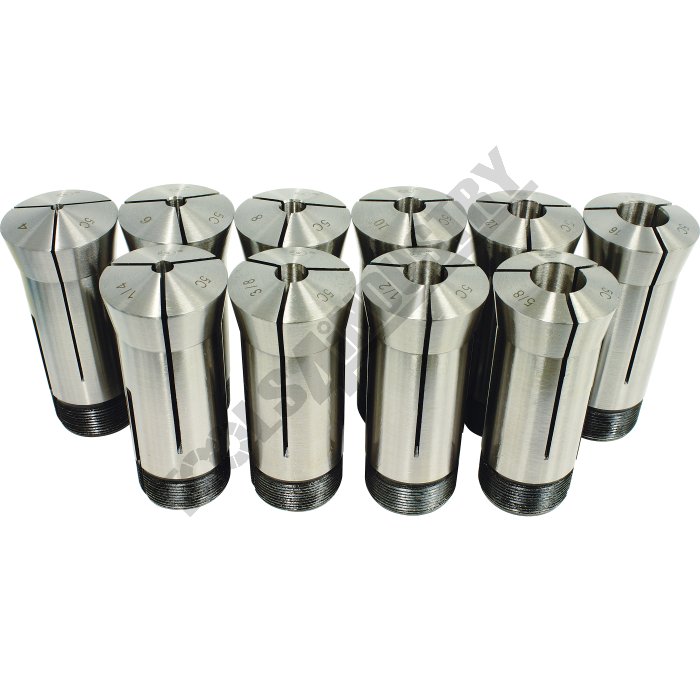

• 5C Collets included: 6, 8, 10, 12, 16mm, 1/4", 3/8", 1/2" & 5/8"
• Aligning finger

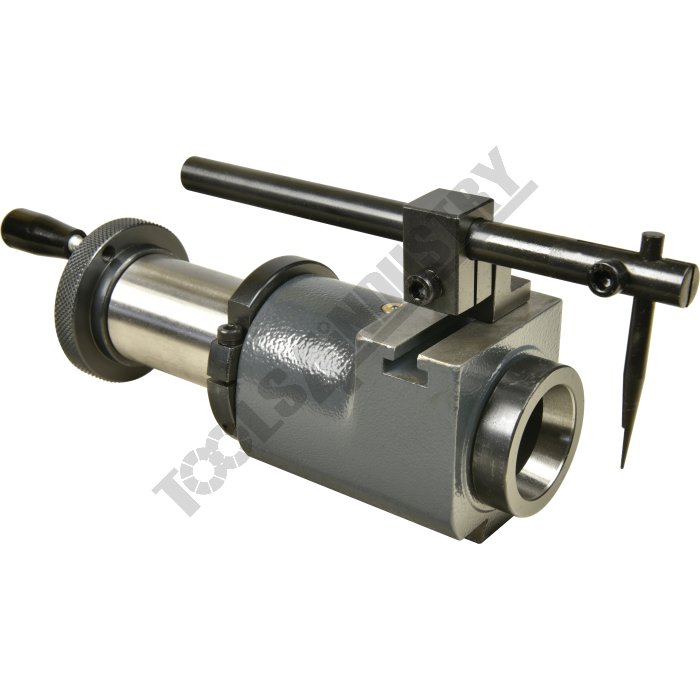

• End mill grinding attachment

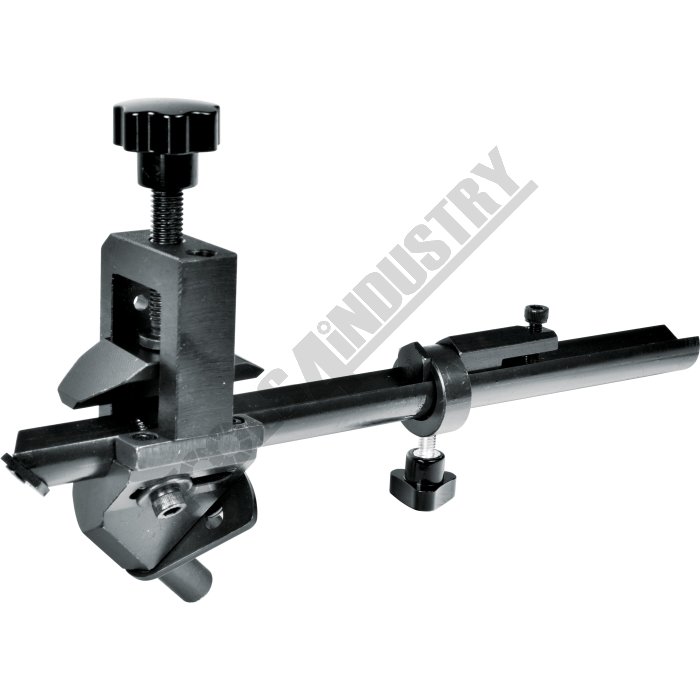

• Drill grinding attachment

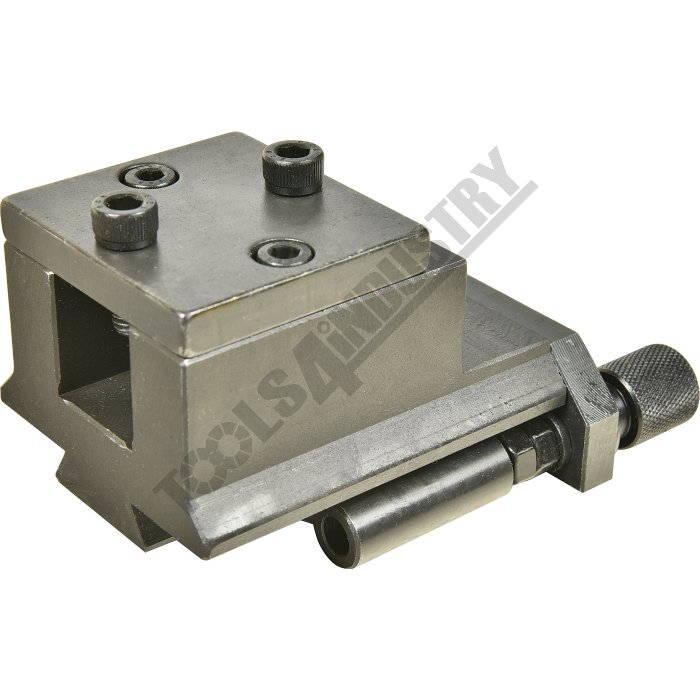

• Lathe grinding attachment
