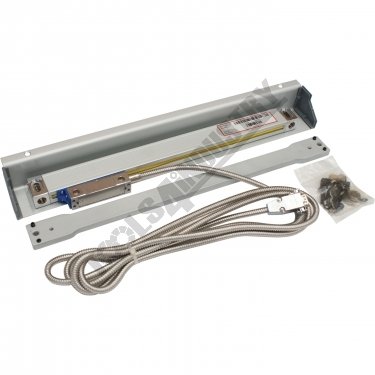

D720 Easson DRO Scales GS10

Code:

D720

Model:

GS10

Capacity:

200mm

Weight (Nett):

1.65 Kg

Weight (Cubic):

0.003 m³

Weight (Freight):

1.65 Kg

Dimensions:

41 x 10 x 8

In Stock:

Contact your Dealer

Instruction Sheets

Reader Head Replacement [133.87 KB]

Installation Manual [2.48 MB]

Easson DRO Scales

Description
Easson GS series Glass Grating Linear Transducer: EASSON - Always committed to Quality, Technology & Innovation

Features
- DOUBLE SEAL DESIGNED SCALES:
- The plastic seals of the transducer use an innovative material to offer superior oil resistance, high elastic recovery properties and durability, carefully designed lip geometry offer low slide resistance.
-
- 100% LASER CALIBRATION:
- All glass grating transducers are individually inspected and calibrated by our in-house laser calibrator to ensure accuracy complies 100% with the specifications.
-
- ADVANCED OPTICAL MEASURING SYSTEM:
- The slide carrier of the GS series scales, use a five bearing design for optical grating linear transducer which has been proven as the most reliable system design in today's market.
- The glass grating slide-ways are lapped, and JIS standard P5 grade bearings are used to achieve smooth and accurate movement and long working life.
-

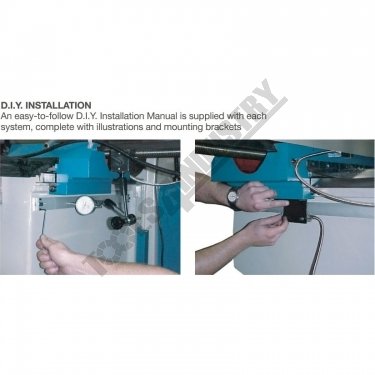

- D.I.Y. INSTALLATION:
- An easy-to-follow D.I.Y. Installation Manual is supplied with each system, complete with illustrations and mounting brackets.

Array
(
    [0] => D718
    [1] => D719
    [2] => D720
    [3] => D720C
    [7] => D721
    [8] => D721C
    [11] => D722
    [12] => D722A
    [13] => D722C
    [17] => D723
    [18] => D723A
    [19] => D724
    [21] => D725
    [22] => D726
    [23] => D727
    [25] => D728
    [27] => D730
    [28] => D731
    [29] => D732
    [31] => D734
    [32] => D736
    [33] => D736A
    [34] => D737
    [35] => D738
    [36] => D739
    [37] => D741
    [38] => D745
    [39] => D750
    [40] => D751
    [41] => D752
    [42] => D755
    [4] => D758
    [9] => D7582
    [14] => D7583
    [5] => D762
    [6] => D7622
    [10] => D7625
    [16] => D763
    [15] => D7635
    [20] => D764
    [24] => D765
    [26] => D766
    [30] => D767
)

All Sorts: Array
(
    [0] => D718
    [1] => D719
    [2] => D720
    [3] => D720C
    [4] => D721
    [5] => D721C
    [6] => D722
    [7] => D722A
    [8] => D722C
    [9] => D723
    [10] => D723A
    [11] => D724
    [12] => D725
    [13] => D726
    [14] => D727
    [15] => D728
    [16] => D730
    [17] => D731
    [18] => D732
    [19] => D734
    [20] => D736
    [21] => D736A
    [22] => D737
    [23] => D738
    [24] => D739
    [25] => D741
    [26] => D745
    [27] => D750
    [28] => D751
    [29] => D752
    [30] => D755
    [31] => D758
    [32] => D7582
    [33] => D7583
    [34] => D762
    [35] => D7622
    [36] => D7625
    [37] => D763
    [38] => D7635
    [39] => D764
    [40] => D765
    [41] => D766
    [42] => D767
)

All Codes +  All Sorts: Array
(
    [D718] => D718
    [D719] => D719
    [D720] => D720
    [D720C] => D720C
    [D721] => D721
    [D721C] => D721C
    [D722] => D722
    [D722A] => D722A
    [D722C] => D722C
    [D723] => D723
    [D723A] => D723A
    [D724] => D724
    [D725] => D725
    [D726] => D726
    [D727] => D727
    [D728] => D728
    [D730] => D730
    [D731] => D731
    [D732] => D732
    [D734] => D734
    [D736] => D736
    [D736A] => D736A
    [D737] => D737
    [D738] => D738
    [D739] => D739
    [D741] => D741
    [D745] => D745
    [D750] => D750
    [D751] => D751
    [D752] => D752
    [D755] => D755
    [D758] => D758
    [D7582] => D7582
    [D7583] => D7583
    [D762] => D762
    [D7622] => D7622
    [D7625] => D7625
    [D763] => D763
    [D7635] => D7635
    [D764] => D764
    [D765] => D765
    [D766] => D766
    [D767] => D767
)

Current: 3
Max: 39
Back: -1
Next: 1
First: D719
Second: D720
Third: D720C
Fourth: D721

CODE	Model	Travel	Scale Accuracy	Cable Length	Backing Support Plate	Type	Width x Height (W x H)	Overall Length (L)
D718	GS30	100mm	5µm	3M	Yes	Compact	20 x 28.5mm	244mm
D719	GS30	150mm	5µm	3M	Yes	Compact	20 x 28.5mm	294mm
D720	GS10	200mm	5µm	3M	Yes	Standard	21.5 x 34mm	347mm
D720C	GS30	200mm	5µm	3M	Yes	Compact	20 x 28.5mm	344mm
D721	GS10	250mm	5µm	3M	Yes	Standard	21.5 x 34mm	397mm
D721C	GS30	250mm	5µm	3M	Yes	Compact	20 x 28.5mm	394mm
D722	GS10	300mm	5µm	3M	Yes	Standard	21.5 x 34mm	447mm
D722A	GS10	300mm	5µm	5M	Yes	Standard	21.5 x 34mm	447mm
D722C	GS30	300mm	5µm	5M	Yes	Compact	20 x 28.5mm	444mm
D723	GS10	350mm	5µm	3M	Yes	Standard	21.5 x 34mm	497mm
D723A	GS10	350mm	5µm	5M	Yes	Standard	21.5 x 34mm	497mm
D724	GS10	400mm	5µm	3M	Yes	Standard	21.5 x 34mm	547mm
D725	GS10	450mm	5µm	3M	Yes	Standard	21.5 x 34mm	597mm
D726	GS10	500mm	5µm	3M	Yes	Standard	21.5 x 34mm	647mm
D727	GS10	550mm	5µm	3M	~	Standard	21.5 x 34mm	697mm
D728	GS10	600mm	5µm	3M	~	Standard	21.5 x 34mm	747mm
D730	GS10	700mm	5µm	3M	~	Standard	21.5 x 34mm	847mm
D731	GS10	750mm	5µm	3M	~	Standard	21.5 x 34mm	897mm
D732	GS10	800mm	5µm	3M	~	Standard	21.5 x 34mm	947mm
D734	GS10	900mm	5µm	3M	~	Standard	21.5 x 34mm	1047mm
D736	GS10	1000mm	5µm	5M	~	Standard	21.5 x 34mm	1147mm
D736A	GS10	1100mm	5µm	5M	~	Standard	21.5 x 34mm	1247mm
D737	GS10	1200mm	5µm	5M	~	Standard	21.5 x 34mm	1347mm
D738	GS10	1300mm	5µm	5M	~	Standard	21.5 x 34mm	1447mm
D739	GS20	1500mm	5µm	5M	~	Long	28 x 46mm	1651mm
D741	GS20	1700mm	5µm	5M	~	Long	28 x 46mm	1851mm
D745	GS20	2000mm	5µm	5M	~	Long	28 x 46mm	2151mm
D750	GS20	3000mm	5µm	5M	~	Long	28 x 46mm	3151mm
D751	DM3000	3000mm	5µm	5M	~	Long	28 x 46mm	3120mm
D752	DM4000	4000mm	5µm	5M	~	Long	28 x 46mm	4120mm
D755	DM5000	5000mm	5µm	5M	~	Long	28 x 46mm	5120mm
D762	GS11	200mm	1µm	3M	~	High Accuracy	21.5 x 34mm	347mm
D7622	GS31	200mm	1µm	3M	Yes	Compact	20 x 28.5mm	344mm
D7625	GS31	250mm	1µm	3M	Yes	Compact	20 x 28.5mm	394mm
D763	GS11	300mm	1µm	3M	~	High Accuracy	21.5 x 34mm	447mm
D7635	GS31	300mm	1µm	5M	Yes	Compact	20 x 28.5mm	444mm
D764	GS11	400mm	1µm	3M	~	High Accuracy	21.5 x 34mm	547mm
D765	GS11	500mm	1µm	3M	~	High Accuracy	21.5 x 34mm	647mm
D766	GS11	600mm	1µm	3M	~	High Accuracy	21.5 x 34mm	747mm
