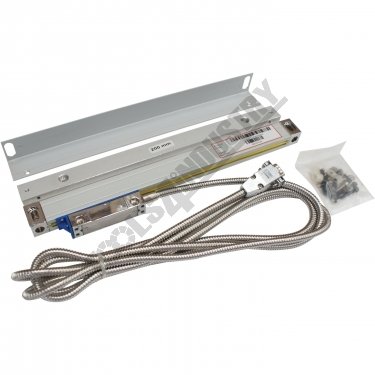

D719 Easson Scales GS30

Code:

D719

Model:

GS30

Capacity:

150mm Compact

Weight (Nett):

1.5 Kg

Weight (Cubic):

0.002 m³

Weight (Freight):

1.5 Kg

Dimensions:

25 x 9 x 9

In Stock:

Yes

Instruction Sheets

Reader Head Replacement [133.87 KB]

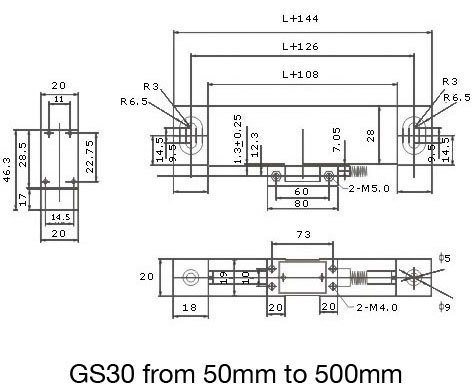

Installation Dimensions [540.97 KB]

Easson Scales

Description

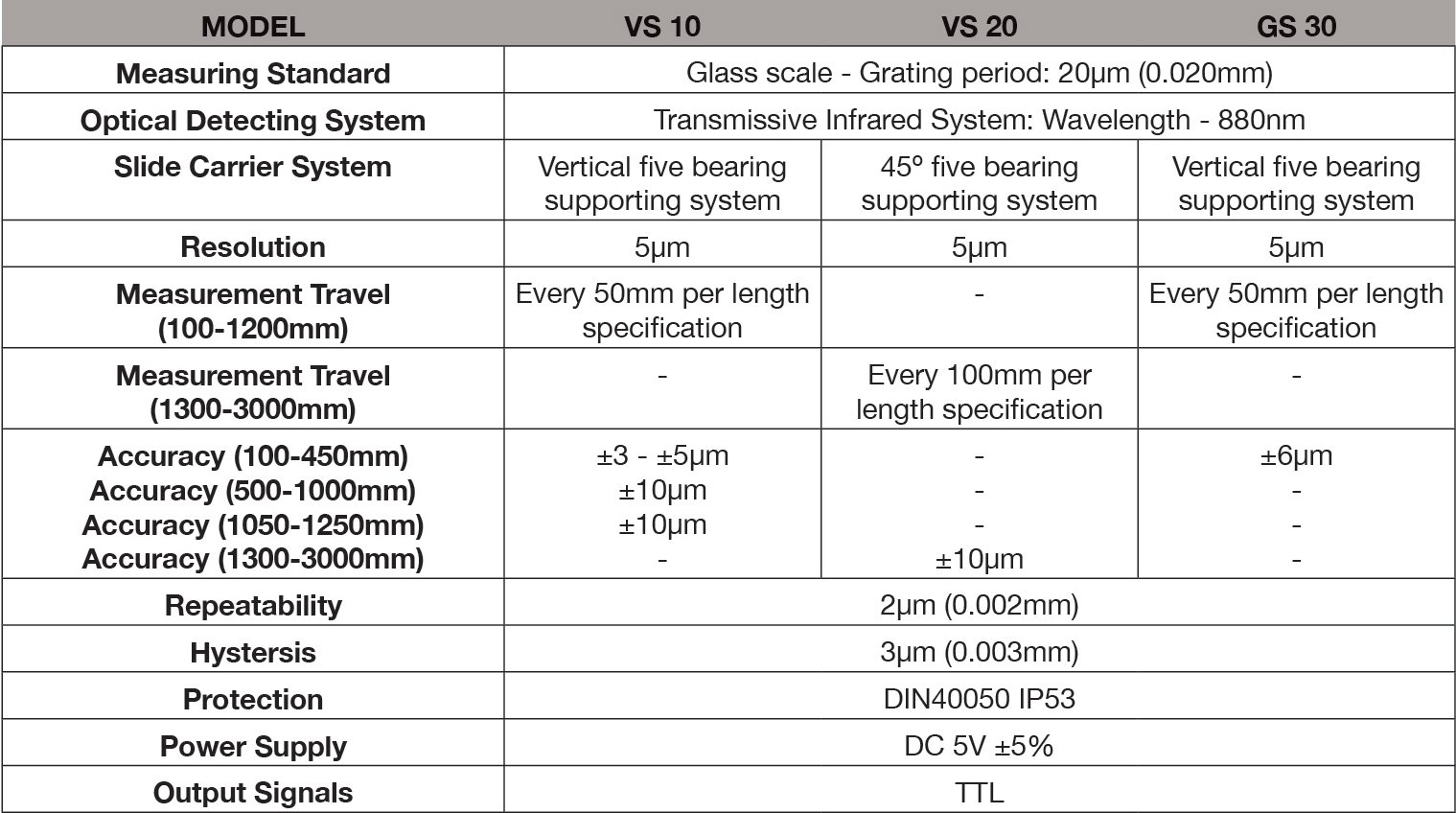

Easson GS series Glass Grating Linear Transducer: EASSON - Always committed to Quality, Technology & Innovation

Double Seal Designed Scales
The plastic seals of the transducer use an innovative material to offer superior oil resistance, high elastic recovery properties and durability, carefully designed lip geometry offer low slide resistance.

100% Laser Calibration
All glass grating transducers are individually inspected and calibrated by our in-house laser calibrator to ensure accuracy complies 100% with the specifications.

Advanced Optical Measuring System
The slide carrier of the GS series scales, use a five bearing design for optical grating linear transducer which has been proven as the most reliable system design in today's market.
The glass grating slide-ways are lapped, and JIS standard P5 grade bearings are used to achieve smooth and accurate movement and long working life.

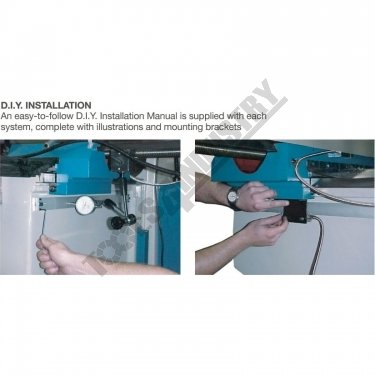

D.I.Y. INSTALLATION
An easy-to-follow D.I.Y. Installation Manual is supplied with each system, complete with illustrations and mounting brackets.

Features
- Robust design - totally sealed
- State-of-the-art electronics
- Highly durable switching membrane
- High noise immunity and designed to EMC specifications
- Ultra low temperature rise transformers
- Packed with performance features

Array
(
    [0] => D718
    [1] => D719
    [2] => D720
    [3] => D720C
    [6] => D721
    [7] => D721C
    [9] => D722
    [10] => D722A
    [11] => D722C
    [14] => D723
    [15] => D723A
    [16] => D724
    [18] => D725
    [19] => D726
    [21] => D727
    [22] => D728
    [24] => D730
    [25] => D731
    [26] => D732
    [28] => D734
    [29] => D736
    [30] => D736A
    [31] => D737
    [32] => D738
    [33] => D739
    [34] => D741
    [35] => D745
    [36] => D750
    [4] => D762
    [5] => D7622
    [8] => D7625
    [12] => D763
    [13] => D7635
    [17] => D764
    [20] => D765
    [23] => D766
    [27] => D767
)

All Sorts: Array
(
    [0] => D718
    [1] => D719
    [2] => D720
    [3] => D720C
    [4] => D721
    [5] => D721C
    [6] => D722
    [7] => D722A
    [8] => D722C
    [9] => D723
    [10] => D723A
    [11] => D724
    [12] => D725
    [13] => D726
    [14] => D727
    [15] => D728
    [16] => D730
    [17] => D731
    [18] => D732
    [19] => D734
    [20] => D736
    [21] => D736A
    [22] => D737
    [23] => D738
    [24] => D739
    [25] => D741
    [26] => D745
    [27] => D750
    [28] => D762
    [29] => D7622
    [30] => D7625
    [31] => D763
    [32] => D7635
    [33] => D764
    [34] => D765
    [35] => D766
    [36] => D767
)

All Codes +  All Sorts: Array
(
    [D718] => D718
    [D719] => D719
    [D720] => D720
    [D720C] => D720C
    [D721] => D721
    [D721C] => D721C
    [D722] => D722
    [D722A] => D722A
    [D722C] => D722C
    [D723] => D723
    [D723A] => D723A
    [D724] => D724
    [D725] => D725
    [D726] => D726
    [D727] => D727
    [D728] => D728
    [D730] => D730
    [D731] => D731
    [D732] => D732
    [D734] => D734
    [D736] => D736
    [D736A] => D736A
    [D737] => D737
    [D738] => D738
    [D739] => D739
    [D741] => D741
    [D745] => D745
    [D750] => D750
    [D762] => D762
    [D7622] => D7622
    [D7625] => D7625
    [D763] => D763
    [D7635] => D7635
    [D764] => D764
    [D765] => D765
    [D766] => D766
    [D767] => D767
)

Current: 2
Max: 36
Back: -1
Next: 1
First: D718
Second: D719
Third: D720
Fourth: D720C

CODE	Travel	Accuracy	Cable	Model	Backing Plate	Type	L
D718	100mm	5µm	3m	GS30	Yes	Compact	244mm
D719	150mm	5µm	3m	GS30	Yes	Compact	294mm
D720	200mm	5µm	3m	GS10	Yes	Standard	347mm
D720C	200mm	5µm	3m	GS30	Yes	Compact	344mm
D721	250mm	5µm	3m	GS10	Yes	Standard	397mm
D721C	250mm	5µm	3m	GS30	Yes	Compact	394mm
D722	300mm	5µm	3m	GS10	Yes	Standard	447mm
D722A	300mm	5µm	5m	GS10	Yes	Standard	447mm
D722C	300mm	5µm	5m	GS30	Yes	Compact	444mm
D723	350mm	5µm	3m	GS10	Yes	Standard	497mm
D723A	350mm	5µm	5m	GS10	Yes	Standard	497mm
D724	400mm	5µm	3m	GS10	Yes	Standard	547mm
D725	450mm	5µm	3m	GS10	Yes	Standard	597mm
D726	500mm	5µm	3m	GS10	Yes	Standard	647mm
D727	550mm	5µm	3m	GS10	~	Standard	697mm
D728	600mm	5µm	3m	GS10	~	Standard	747mm
D730	700mm	5µm	3m	GS10	~	Standard	847mm
D731	750mm	5µm	3m	GS10	~	Standard	897mm
D732	800mm	5µm	3m	GS10	~	Standard	947mm
D734	900mm	5µm	3m	GS10	~	Standard	1047mm
D736	1000mm	5µm	5m	GS10	~	Standard	1147mm
D736A	1100mm	5µm	5m	GS10	~	Standard	1247mm
D737	1200mm	5µm	5m	GS10	~	Standard	1347mm
D738	1300mm	5µm	5m	GS10	~	Standard	1447mm
D739	1500mm	5µm	5m	GS20	~	Long	1651mm
D741	1700mm	5µm	5m	GS20	~	Long	1851mm
D745	2000mm	5µm	5m	GS20	~	Long	2151mm
D750	3000mm	5µm	5m	GS20	~	Long	3151mm
D762	200mm	1µm	3m	GS11	~	High Accuracy	347mm
D7622	200mm	1µm	3m	GS31	Yes	Compact	344mm
D7625	250mm	1µm	3m	GS31	Yes	Compact	394mm
D763	300mm	1µm	3m	GS11	~	High Accuracy	447mm
D7635	300mm	1µm	5m	GS31	Yes	Compact	444mm
D764	400mm	1µm	3m	GS11	~	High Accuracy	547mm
D765	500mm	1µm	3m	GS11	~	High Accuracy	647mm
D766	600mm	1µm	3m	GS11	~	High Accuracy	747mm
