This Product Is No Longer Available
| Code | D0021 |
|---|---|
| Model | BS-1A |
| Capacity | 128mm Centre Height |
| Weight (kg) | 36 |
| Weight (m3) | 0.059 |
| Weight (Freight) | 36 |
| Dimensions (cm) | 56 x 30 x 35 |
Product Brochure
This Product Is No Longer Available

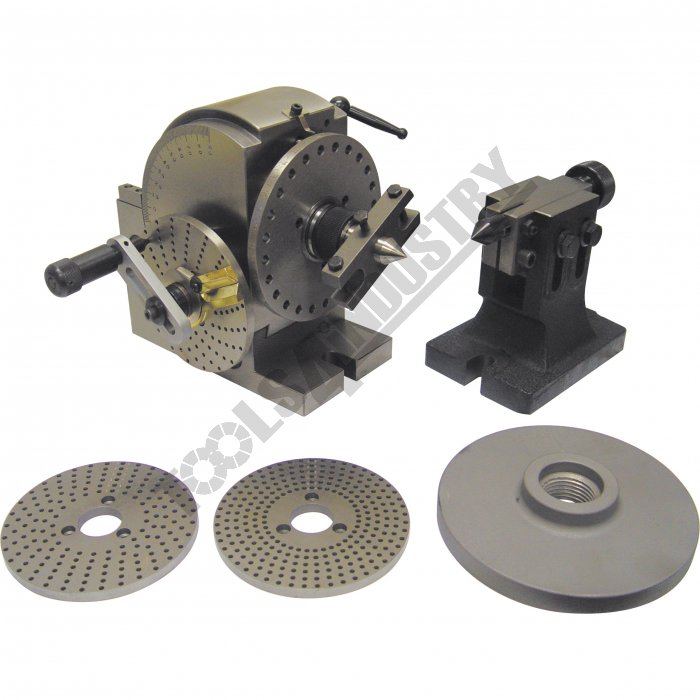

Dividing Head - Semi Universal BS-1A 128mm Centre Height
Features
- Suitable for direct and indirect indexing
- Hardened and ground spindle rigidly held between taper roller bearings
- Threaded spindle nose for chuck mount
- Worm is hardened and ground with ratio between worm and worm wheel 40:1
- Direct indexing designed for quick divisions of No's 2, 3, 4, 6, 8, 12 & 24
- The head can be swivelled from 10º below horizontal to 90º vertical
- Designed to carry out all types of gear cutting, precision dividing
- Slotted base on dividing head & tailstock for use with key steel to align quickly on machine
Includes
- Backing plate suits 160mm front mount 3 jaw chuck
- Dividing plates
- Tailstock
- Spindle thread 1-1/8" x 12TPI
Optional Accessories
- Replacement Dividing Plates (D0025)

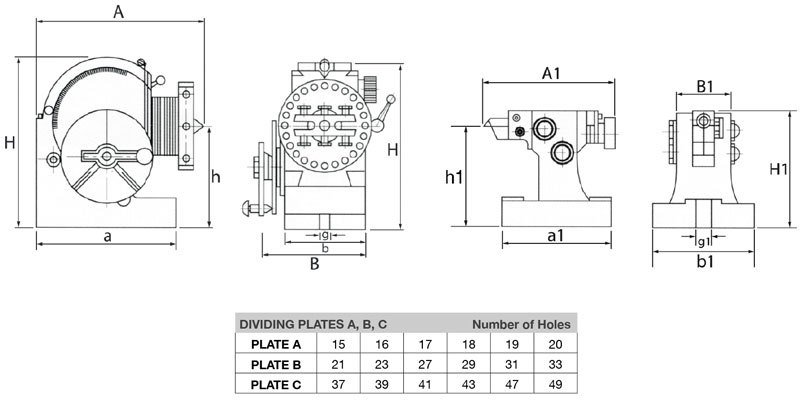

Specifications
- Compare 4 Products
- ORDER CODE
- MODEL
- TaperMT
- Boremm
- Amm
- Bmm
- Hmm
- hmm
- amm
- b mm
- gmm
- A1mm
- B1mm
- H1mm
- h1mm
- a1mm
- b1mm
- g1mm
- Nett Weightkg
| ORDER CODE | BS-1A |
|---|---|
| MODEL | MT3 |
| TaperMT | 20 |
| Boremm | 293 |
| Amm | 156 |
| Bmm | 220 |
| Hmm | 128 |
| hmm | 207 |
| amm | 114 |
| b mm | 16 |
| gmm | 191 |
| A1mm | 88 |
| B1mm | 137 |
| H1mm | 128 |
| h1mm | 150 |
| a1mm | 108 |
| b1mm | 16 |
| g1mm | 30 |
| Nett Weightkg |
