Machine Tool Accessories > Milling Accessories > Collet & Chuck Sets

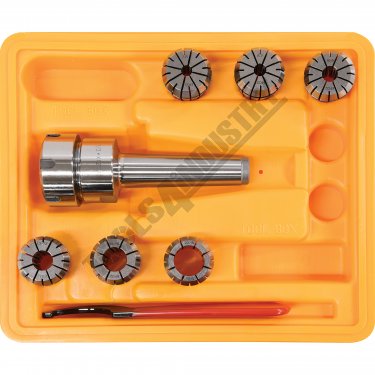

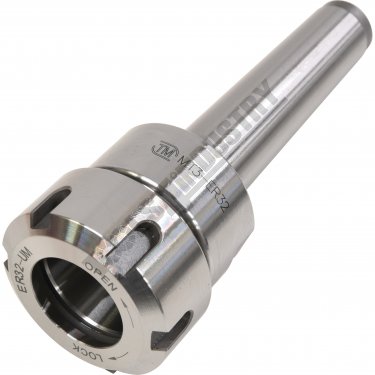

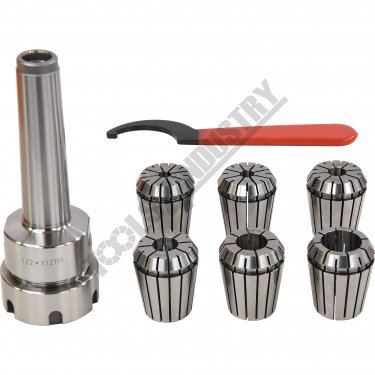

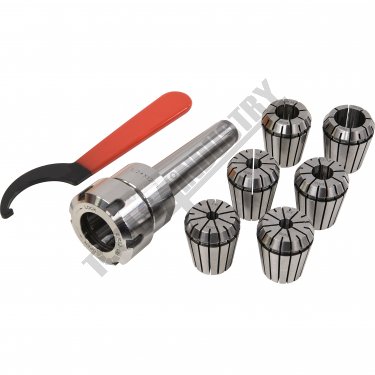

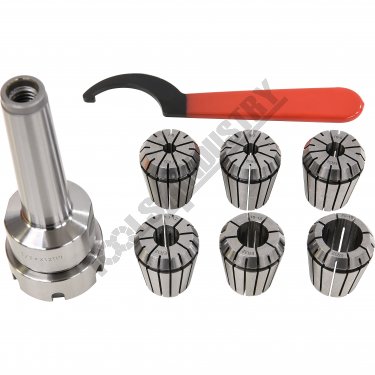

C922B Collet & Chuck Set 3MT x ER32
Collet & Chuck Set

TOOLMASTER LOGO
Code:C922B
Model:3MT x ER32
Capacity:6 x Collets 6-20mm
Weight (Nett):2.2 Kg
Weight (Cubic):0.004 m3
Weight (Freight):2.2 Kg
Dimensions:24 x 20 x 9
In Stock:Yes
Instruction Sheets
How to Install ER Collets [82.94 KB]

Collet & Chuck Set

Description
Toolmaster 6 piece collet set with collets that will cover both metric and imperial end mill and slot drill shanks from 6-20mm & 1/4"-3/4"

Features
- Includes spanner

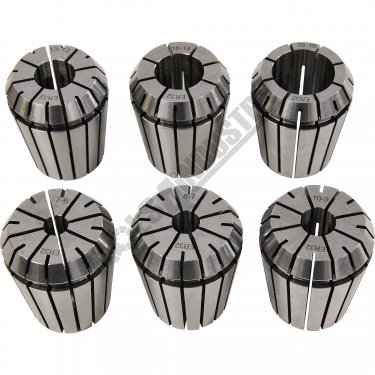

- Chuck and 6 collets as listed

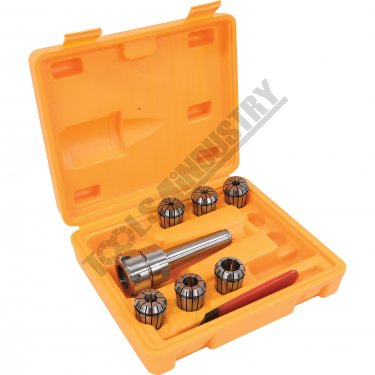

- Blow-mould case

Array
(
    [18] => C123
    [19] => C124
    [1] => C922A
    [0] => C922B
    [2] => C923
    [3] => C924
    [4] => C9245
    [5] => C925
    [6] => C926
    [7] => C927
    [8] => C928
    [9] => C929
    [10] => C929A
    [11] => C960
    [12] => C961
    [13] => C962
    [14] => C964
    [15] => C965
    [16] => C966
    [17] => C967
)

All Sorts: Array
(
    [0] => C123
    [1] => C124
    [2] => C922A
    [3] => C922B
    [4] => C923
    [5] => C924
    [6] => C9245
    [7] => C925
    [8] => C926
    [9] => C927
    [10] => C928
    [11] => C929
    [12] => C929A
    [13] => C960
    [14] => C961
    [15] => C962
    [16] => C964
    [17] => C965
    [18] => C966
    [19] => C967
)

All Codes +  All Sorts: Array
(
    [C123] => C123
    [C124] => C124
    [C922A] => C922A
    [C922B] => C922B
    [C923] => C923
    [C924] => C924
    [C9245] => C9245
    [C925] => C925
    [C926] => C926
    [C927] => C927
    [C928] => C928
    [C929] => C929
    [C929A] => C929A
    [C960] => C960
    [C961] => C961
    [C962] => C962
    [C964] => C964
    [C965] => C965
    [C966] => C966
    [C967] => C967
)

Current: 4
Max: 20
Back: -1
Next: 1
First: C922A
Second: C922B
Third: C923
Fourth: C924
CODEChuck TaperCollet TypeCollet QuantityRangeRangeRangeRangeRangeRangeRangeRangeDrawbar Thread
C1233MTPosilock8 Piece6, 10, 12, 16mm1/4", 3/8", 1/2", 5/8"~~~~~~1/2" Whitworth
C124R8Posilock8 Piece6, 10, 12, 16mm1/4", 3/8", 1/2", 5/8"~~~~~~7/16" UNF
C922A3MTER326 piece6-5, 8-7, 10-9, 12-11,16-15, 20-19mm~~~~~~1/2" Whitworth
C922B3MTER326 piece7-6, 8-7, 10-9, 13-12,16-15, 20-19mm~~~~~~1/2" Whitworth
C923R8ER326 piece6-5, 8-7, 10-9, 12-11,16-15, 20-19mm~~~~~~7/16" UNF
C924NT30ER326 piece6-5, 8-7, 10-9, 12-11,16-15, 20-19mm~~~~~~M12
C9245NT30ER326 piece7-6, 8-7, 10-9, 13-12,16-15, 20-19mm~~~~~~M12
C925NT40ER326 piece6-5, 8-7, 10-9, 12-11,16-15, 20-19mm~~~~~~M16
C9263MTER3218 piece3, 4, 5, 6, 7, 8, 9, 10,11, 12, 13, 14, 15, 16, 17, 18, 19, 20mm~~~~~1/2" Whitworth
C927R8ER3218 piece3, 4, 5, 6, 7, 8, 9, 10,11, 12, 13, 14, 15,16, 17, 18, 19, 20mm~~~~~7/16" UNF
C928NT30ER3218 piece3, 4, 5, 6, 7, 8, 9, 10,11, 12, 13, 14, 15,16, 17, 18, 19, 20mm~~~~~M12
C929NT40ER3218 piece3, 4, 5, 6, 7, 8, 9, 10,11, 12, 13, 14, 15,16, 17, 18, 19, 20mm~~~~~M16
C929ABT40ER3218 piece3, 4, 5, 6, 7, 8, 9, 10,11, 12, 13, 14, 15,16, 17, 18, 19, 20mm~~~~~M16
C960R8ER407 piece6-5, 8-7, 10-9, 12-11,16-15, 20-9, 25-24mm~~~~~~7/16" UNF
C961NT30ER407 piece6-5, 8-7, 10-9, 12-11,16-15, 20-19, 25-24mm~~~~~~M12
C962NT40ER407 piece6-5, 8-7, 10-9, 12-11,16-15, 20-9mm~~~~~~M16
C964R8ER4023 piece4-3, 5-4, 6-5, 7-6, 8-7, 9-8, 10-9, 11-10,12-11, 13-12, 14-13,15-14, 16-15, 17-15,18-17, 19-18, 20-19,21-20, 22-21, 23-22,24-23, 24-24, 25-24,26-25mm7/16" UNF
C965NT30ER4023 piece4-3, 5-4, 6-5, 7-6, 8-7, 9-8, 10-9, 11-10,12-11, 13-12, 14-13,15-14, 16-15, 17-15,18-17, 19-18, 20-19,21-20, 22-21, 23-22,24-23, 24-24, 25-24,26-25mmM12
C966NT40ER4023 piece4-3, 5-4, 6-5, 7-6, 8-7, 9-8, 10-9, 11-10,12-11, 13-12, 14-13,15-14, 16-15, 17-15,18-17, 19-18, 20-19,21-20, 22-21, 23-22,24-23, 24-24, 25-24,26-25mmM16
C967BT40ER4023 piece4-3, 5-4, 6-5, 7-6, 8-7, 9-8, 10-9, 11-10,12-11, 13-12, 14-13,15-14, 16-15, 17-15,18-17, 19-18, 20-19,21-20, 22-21, 23-22,24-23, 24-24, 25-24,26-25mmM16

Recommended Accessories

C117 - Plain Nut Collet Nut ER ER32
C932 - ER32 Collet Chuck Wrench ER
C105 - 3MT x ER32 Collet Chuck - 3MT x ER32 2-20mm
C912 - ER32 Collet 12-11mm
