Machine Tool Accessories > Lathe Accessories > Lathe Chuck - 3 Jaw - Camlock
C270 3 Jaw Self Centring Lathe Chuck k11 - 380

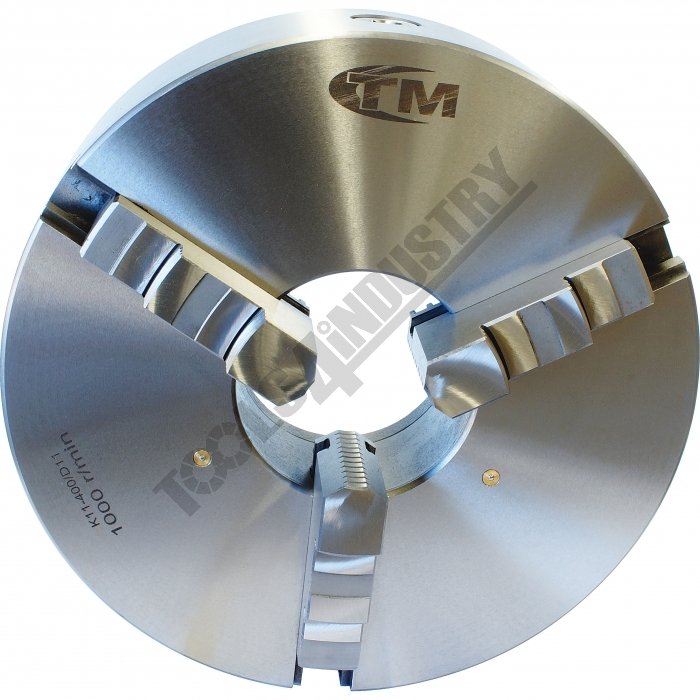

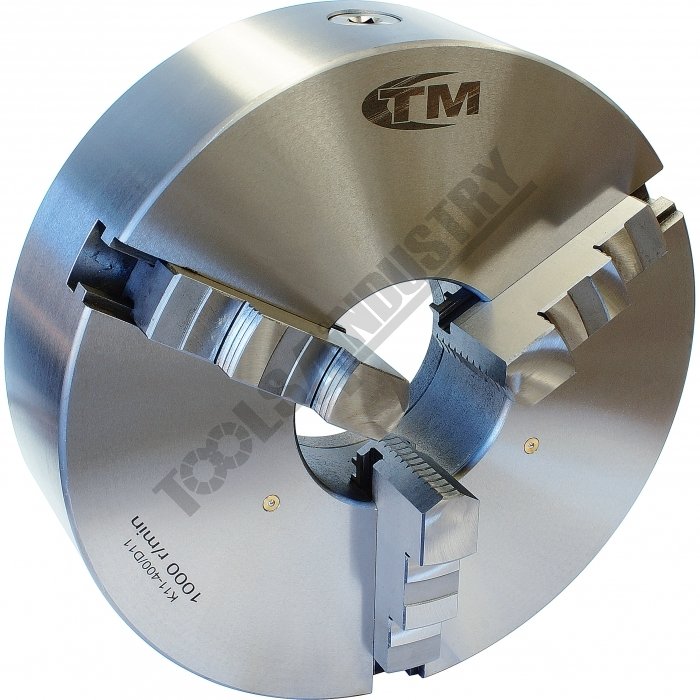

3 Jaw Self Centring Lathe Chuck

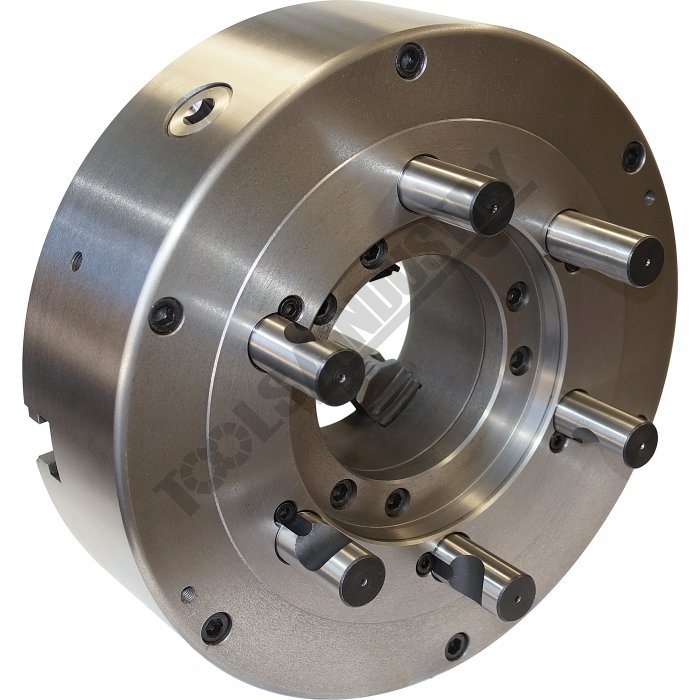

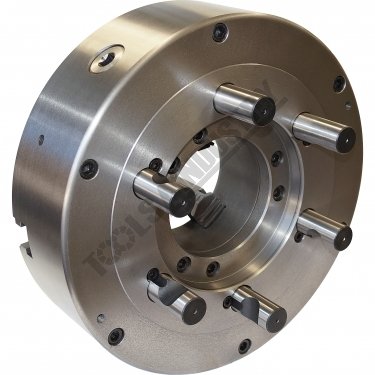

Camlock Mount
FUERDA
Code:C270
Model:k11 - 380
Capacity:380mm
Weight (Nett):90 Kg
Weight (Cubic):0.057 m3
Weight (Freight):90 Kg
Dimensions:48 x 46 x 26
In Stock:Contact your Dealer
Instruction Sheets
How To Determine a Camlock Size [39.88 KB]
LATHE CHUCK - SAFETY NOTES [35.87 KB]

3 Jaw Self Centring Lathe Chuck

Description
K11 SERIES Cast Iron Body
Standard GB/T 4346.2-2002

Features
- Manufactured by the world's largest chuck producer, established in 1938
- Comprehensive quality assurance and accuracy testing ensure standards remain high
- Each chuck is supplied with a set of inside and outside jaws and a chuck key

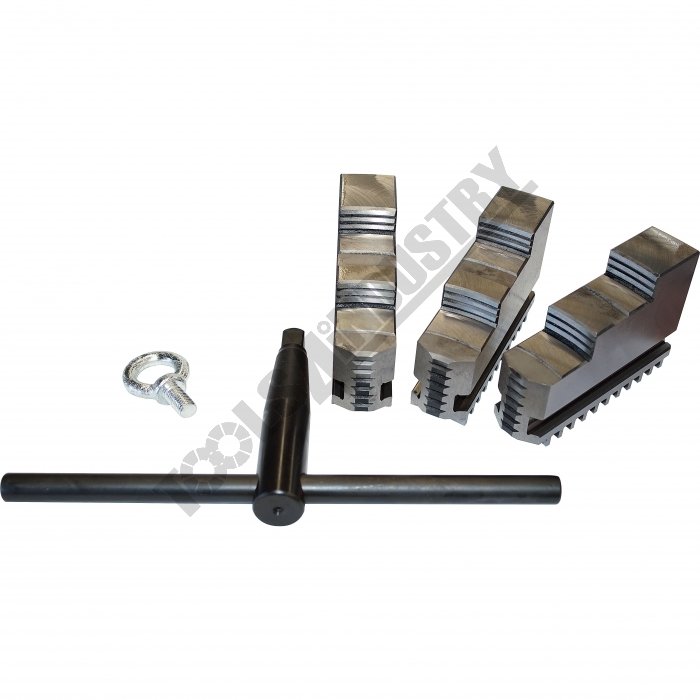

Includes
• Outside jaws
• Inside jaws
• Mounting screws
• Chuck key

Array
(
    [0] => C260
    [3] => C262
    [6] => C263
    [7] => C264
    [10] => C269
    [13] => C2695
    [14] => C270
    [17] => C2706
    [2] => C2841
    [5] => C2843
    [21] => C2844
    [12] => C2845
    [8] => C2849
    [1] => C7064
    [4] => C7084
    [9] => C7106
    [11] => C7128
    [15] => C7168
    [16] => C7169
    [20] => C741
    [19] => C743
    [18] => C747
)

All Sorts: Array
(
    [0] => C260
    [1] => C262
    [2] => C263
    [3] => C264
    [4] => C269
    [5] => C2695
    [6] => C270
    [7] => C2706
    [8] => C2841
    [9] => C2843
    [10] => C2844
    [11] => C2845
    [12] => C2849
    [13] => C7064
    [14] => C7084
    [15] => C7106
    [16] => C7128
    [17] => C7168
    [18] => C7169
    [19] => C741
    [20] => C743
    [21] => C747
)

All Codes +  All Sorts: Array
(
    [C260] => C260
    [C262] => C262
    [C263] => C263
    [C264] => C264
    [C269] => C269
    [C2695] => C2695
    [C270] => C270
    [C2706] => C2706
    [C2841] => C2841
    [C2843] => C2843
    [C2844] => C2844
    [C2845] => C2845
    [C2849] => C2849
    [C7064] => C7064
    [C7084] => C7084
    [C7106] => C7106
    [C7128] => C7128
    [C7168] => C7168
    [C7169] => C7169
    [C741] => C741
    [C743] => C743
    [C747] => C747
)

Current: 6
Max: 17
Back: -1
Next: 1
First: C269
Second: C270
Third: C2706
Fourth: C2841

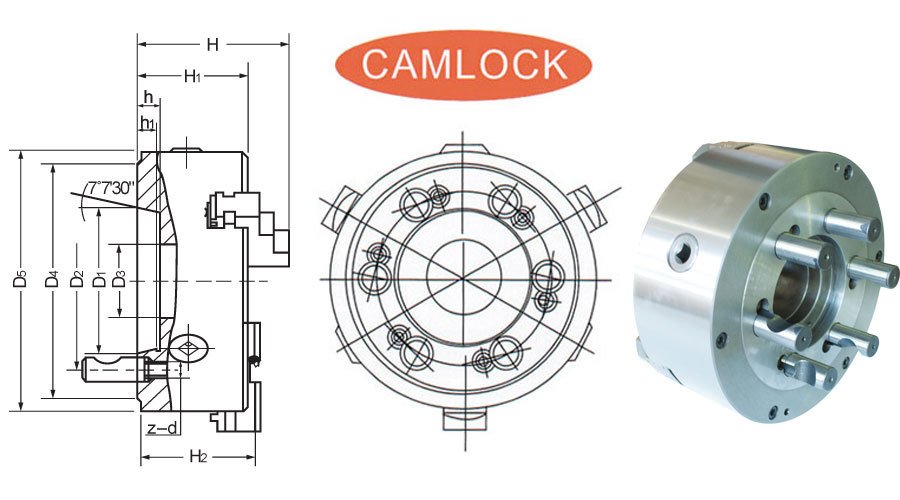

CODESizeCamlockOutside JawInside JawSpeedD1D2D3D4D5HH1hh1z-dWeight (nett)
C260160mmD1-43-55mm55-145mm2500rpm63.52mm82.6mm40mm117mm160mm94mm70mm13mm10mm3-M1010kg
C262200mmD1-44-85mm65-200mm2000rpm63.52mm82.6mm60mm117mm200mm118mm84mm13mm10mm3-M1018kg
C263250mmD1-66-110mm90-250mm1600rpm106.37mm133.4mm70mm181mm250mm138mm98mm16mm13mm6-M1633kg
C264250mmD1-86-110mm90-250mm1600rpm139.72mm171.4mm80mm225mm250mm138mm98mm16mm13mm6-M1633kg
C269320mmD1-811.5-165mm110-3201200rpm139.72mm171.4mm100mm225mm320mm163.5mm106mm18mm14mm6-M2061kg
C270380mmD1-1111.5-210mm110-400mm1000rpm196.87mm235mm135mm298mm380mm191.5mm118mm18mm16mm6-M2281kg
C2706500mmD1-1111.5-210mm150-500mm1000rpm196.87mm235mm190mm298mm500mm222mm135mm20mm16mm6-M22159kg
C2841160mmD1-43-55mm55-160mm4000rpm63.52mm82.6mm40mm117mm160mm94mm70mm13mm10mm3-M1010kg
C2843200mmD1-64-85mm65-200mm3500rpm106.37mm133.4mm50mm181mm200mm120mm86mm16mm13mm6-M1217kg
C2844250mmD1-66-110mm3000rpm~~~~250mm~~~~~
C2845315mmD1-811.5-165mm100-315mm2300rpm139.72mm171.4mm100mm225mm315mm161mm103.5mm18mm14mm6-M2050kg
C7064160mmD1-43-64mm50-160mm3000rpm63.52mm82.6mm42mm~160mm105.5mm81.5mm13mm~~10kg
C7084200mmD1-44-90mm60-200mm2500rpm63.52mm82.6mm55mm~200mm125mm91mm-~~18kg
C7106250mmD1-65-118mm77-250mm2000rpm106.37mm133.4mm76mm~250mm143.5mm103.5mm16mm~~27kg
C7128315mmD1-810-131mm90-315mm1500rpm139.72mm171.4mm103mm~315mm175mm117.7mm18mm~~50kg
C7168400mmD1-810-180mm103-400mm1000rpm139.72mm171.4mm136mm~400mm202mm128.5mm18mm16mm~100kg
C7169400mmD1-1110-180mm103-400mm1000rpm139.72mm171.4mm136mm~400mm202mm128.5mm18mm16mm~100kg
