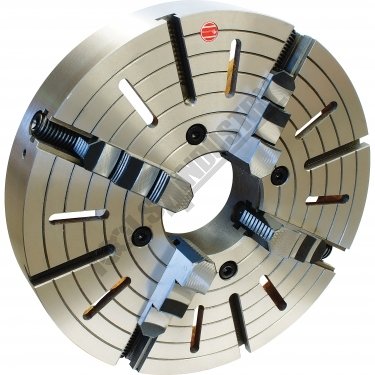

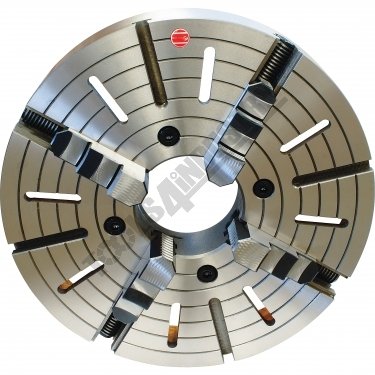

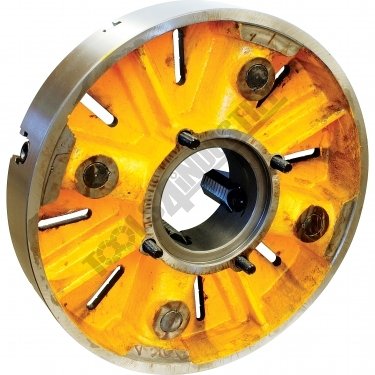

C259A 4 Jaw Independent Lathe Chuck K72-630

Machine Tool Accessories > Lathe Accessories > Lathe Chuck - 4 Jaw Independant - Backplate
C259A 4 Jaw Independent Lathe Chuck K72-630

Code:

C259A

Model:

K72-630

Capacity:

630mm

Weight (Nett):

112 Kg

Weight (Cubic):

0.192 m³

Weight (Freight):

112 Kg

Dimensions:

80 x 80 x 30

In Stock:

Contact your Dealer

Instruction Sheets

LATHE CHUCK - SAFETY NOTES [36.29 KB]

4 Jaw Independent Lathe Chuck

Description
Manufactured from High Strength semi steel and precision machined
Jaws are case-hardened to minimise wear
Operating screws are made from alloy steel and case-hardened

Features
- Front Mounting

Array
(
    [1] => C230
    [2] => C232
    [4] => C250
    [5] => C251
    [6] => C255
    [7] => C257
    [8] => C257A
    [9] => C258
    [10] => C259
    [12] => C2595
    [11] => C259A
    [3] => L151
    [0] => L195
)

All Sorts: Array
(
    [0] => C230
    [1] => C232
    [2] => C250
    [3] => C251
    [4] => C255
    [5] => C257
    [6] => C257A
    [7] => C258
    [8] => C259
    [9] => C2595
    [10] => C259A
    [11] => L151
    [12] => L195
)

All Codes +  All Sorts: Array
(
    [C230] => C230
    [C232] => C232
    [C250] => C250
    [C251] => C251
    [C255] => C255
    [C257] => C257
    [C257A] => C257A
    [C258] => C258
    [C259] => C259
    [C2595] => C2595
    [C259A] => C259A
    [L151] => L151
    [L195] => L195
)

Current: 11
Max: 11
Back: -1
Next: NO
First: C258
Second: C259
Third: C2595
Fourth: C259A

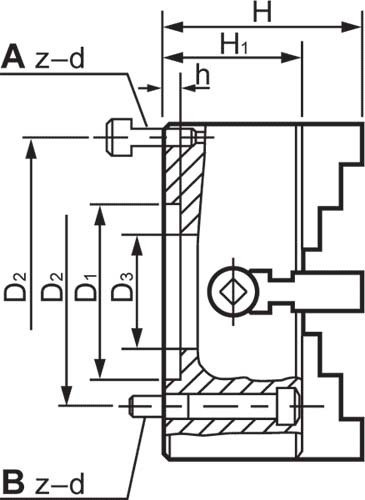

CODE	Size	D1	D2	D3	H	H1	h	z-d	Internal Jaw Range	External Jaw Range	Weight (nett)
C230	100mm	72mm	84mm	25mm	74mm	54mm	4mm	4-M8 (A)	6-45mm	40-100mm	4kg
C232	125mm	95mm	108mm	30mm	78mm	56mm	4.5mm	4-M8 (A)	7-57mm	48-125mm	6kg
C250	160mm	65mm	95mm	45mm	96.5mm	65mm	5mm	4-M10 (B)	8-80mm	50-160mm	10kg
C251	200mm	75mm	95mm	56mm	110mm	75mm	6mm	4-M10 (B)	4-90mm	130-200mm	17kg
C255	250mm	150mm	104.8mm	65mm	117.5mm	85mm	6mm	4-M12 (B)	5-118mm	160-250mm	25kg
C257	320mm	140mm	165mm	95mm	134mm	90mm	6mm	4-M16 (B)	20-170mm	100-315mm	40kg
C257A	350mm	130mm	168mm	80mm	145mm	80mm	8mm	4-M16 (B)	20-206mm	100-350mm	53kg
C258	400mm	160mm	185mm	125mm	143mm	95mm	8mm	4-M16 (B)	25-250mm	118-400mm	57kg
C259	500mm	200mm	236mm	160mm	161mm	106mm	8mm	4-M16 (B)	35-300mm	125-500mm	116kg
C2595	800mm	250mm	300mm	210mm	210mm	135mm	12mm	8-M20 (B)	70-540mm	200-800mm	300kg
C259A	630mm	220mm	258mm	180mm	180mm	115mm	10mm	4-M20 (B)	50-400mm	160-630mm	159kg
