C256A 4 Jaw Independent Lathe Chuck K72-320/D1-8

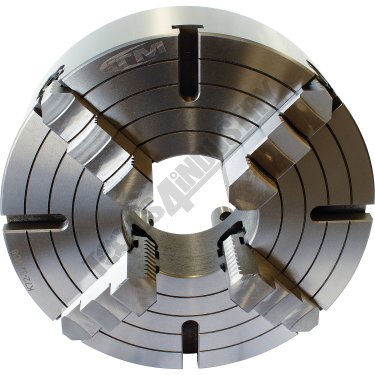

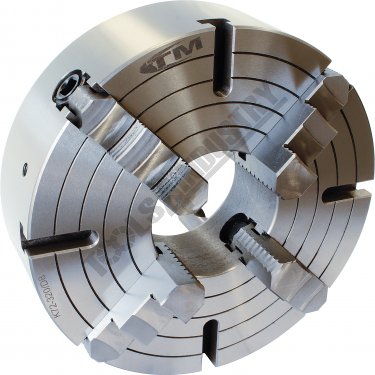

4 Jaw Independent Lathe Chuck

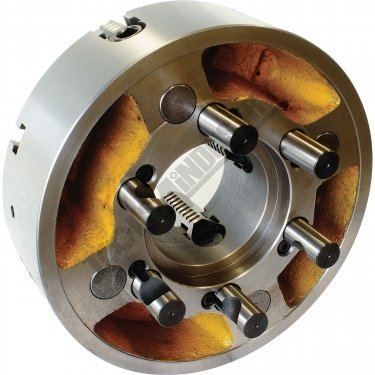

Camlock Mount
FUERDA
Code:C256A
Model:K72-320/D1-8
Capacity:320mm
Weight (Nett):39.5 Kg
Weight (Cubic):0.018 m3
Weight (Freight):39.5 Kg
Dimensions:34 x 34 x 16
In Stock:Yes
Instruction Sheets
How To Determine a Camlock Size [39.88 KB]
LATHE CHUCK - SAFETY NOTES [36.29 KB]

4 Jaw Independent Lathe Chuck

Description
Manufactured from High Strength semi steel and precision machined
Jaws are case-hardened to minimize wear
Operating screws are made from alloy steel and case-hardened.
Supplied with camlock pins, 1 set of jaws and wrench.

Array
(
    [0] => C252
    [1] => C256
    [2] => C256A
    [4] => C271
    [5] => C272
    [6] => C2728
    [3] => C273
    [7] => C762
)

All Sorts: Array
(
    [0] => C252
    [1] => C256
    [2] => C256A
    [3] => C271
    [4] => C272
    [5] => C2728
    [6] => C273
    [7] => C762
)

All Codes +  All Sorts: Array
(
    [C252] => C252
    [C256] => C256
    [C256A] => C256A
    [C271] => C271
    [C272] => C272
    [C2728] => C2728
    [C273] => C273
    [C762] => C762
)

Current: 3
Max: 7
Back: -1
Next: 1
First: C256
Second: C256A
Third: C271
Fourth: C272

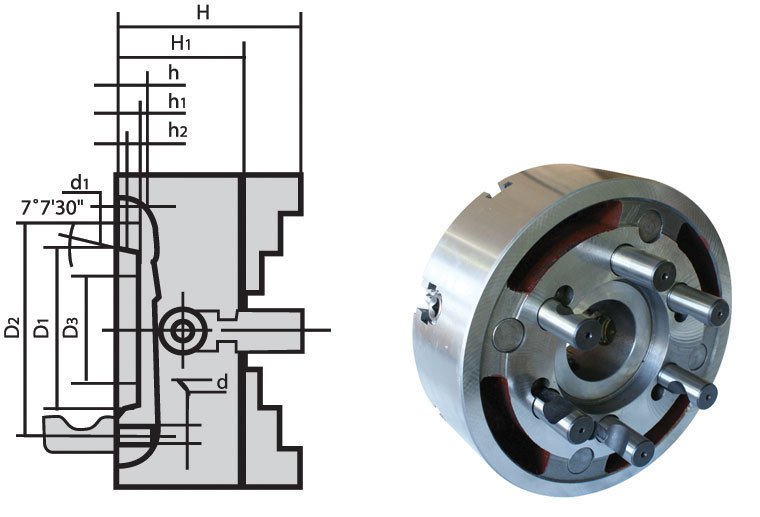

CODESizeTaperD1D2D3HH1hh1h2d1Weight (nett)
C252200mmD1-463.52mm82.6mm55mm107mm78mm13mm10mm6.5mm14.7mm15kg
C256250mmD1-6106.38mm133.4mm75mm102mm80mm16mm13mm6.5mm19.5mm24kg
C256A320mmD1-8139.72mm171.4mm95mm134mm90mm18mm14mm8mm24.2mm53kg
C271400mmD1-11196.87mm235mm125mm143mm95mm20mm16mm10mm29.4mm102kg
C272500mmD1-11196.87mm235mm125mm143mm95mm20mm16mm10mm29.4mm110kg
C2728500mmD1-8139.72mm171.4mm130mm161mm106mm18mm14mm8mm24.2mm110kg
C273400mmD1-8139.72mm171.4mm125mm143mm95mm18mm14mm8mm24.2mm58kg
