Machine Tool Accessories > Lathe Accessories > Lathe Chuck - 4 Jaw Independant - Camlock
C256 4 Jaw Independent Lathe Chuck PI4-250/D1-6

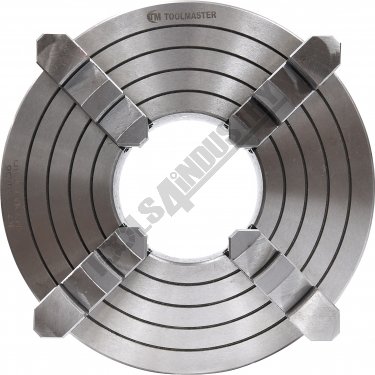

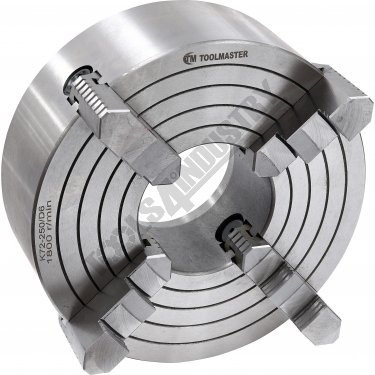

4 Jaw Independent Lathe Chuck

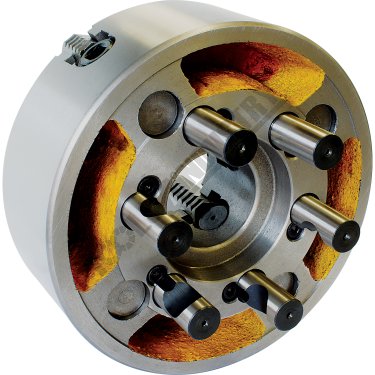

Camlock Mount
FUERDA
Code:C256
Model:PI4-250/D1-6
Capacity:250mm
Weight (Nett):23 Kg
Weight (Cubic):0.019 m3
Weight (Freight):23 Kg
Dimensions:30 x 31 x 20
In Stock:Contact your Dealer
Instruction Sheets
How To Determine a Camlock Size [39.88 KB]
LATHE CHUCK - SAFETY NOTES [36.29 KB]

4 Jaw Independent Lathe Chuck

Description
The "P" series chucks are to German standards and feature jaws that are individually adjustable, allowing firm gripping of odd shaped items. The semi steel chuck has jaws manufactured from hardened high quality alloy steel. Thrust bearings and operating screws made of case hardened steel.
Supplied with CAMLOCK PINS, 1 set of jaws and wrench.

Features
- German design

Array
(
    [0] => C252
    [1] => C256
    [2] => C256A
    [4] => C271
    [5] => C272
    [6] => C2728
    [3] => C273
    [7] => C762
)

All Sorts: Array
(
    [0] => C252
    [1] => C256
    [2] => C256A
    [3] => C271
    [4] => C272
    [5] => C2728
    [6] => C273
    [7] => C762
)

All Codes +  All Sorts: Array
(
    [C252] => C252
    [C256] => C256
    [C256A] => C256A
    [C271] => C271
    [C272] => C272
    [C2728] => C2728
    [C273] => C273
    [C762] => C762
)

Current: 2
Max: 7
Back: -1
Next: 1
First: C252
Second: C256
Third: C256A
Fourth: C271
CODESizeTaperD1D2D3HH1hh1h2d1Weight (nett)
C252200mmD1-463.52mm82.6mm55mm107mm78mm13mm10mm6.5mm14.7mm15kg
C256250mmD1-6106.38mm133.4mm75mm102mm80mm16mm13mm6.5mm19.5mm24kg
C256A320mmD1-8139.72mm171.4mm95mm134mm90mm18mm14mm8mm24.2mm53kg
C271400mmD1-11196.87mm235mm125mm143mm95mm20mm16mm10mm29.4mm102kg
C272500mmD1-11196.87mm235mm125mm143mm95mm20mm16mm10mm29.4mm110kg
C2728500mmD1-8139.72mm171.4mm130mm161mm106mm18mm14mm8mm24.2mm110kg
C273400mmD1-8139.72mm171.4mm125mm143mm95mm18mm14mm8mm24.2mm58kg
