This Product Is No Longer Available
| Code | C0641 |
|---|---|
| Weight (kg) | 3.74 |
| Weight (m3) | 0.003 |
| Weight (Freight) | 3.74 |
| Dimensions (cm) | 31 x 16 x 6 |
Product Brochure
This Product Is No Longer Available

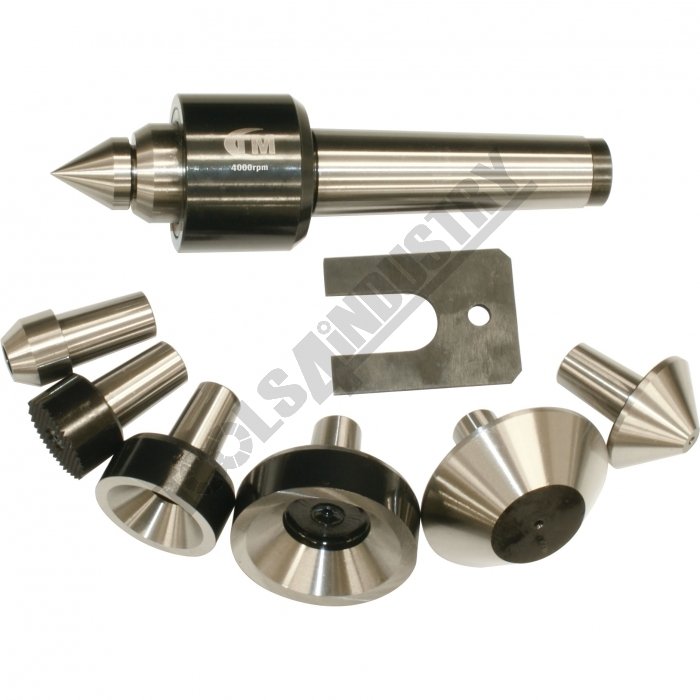

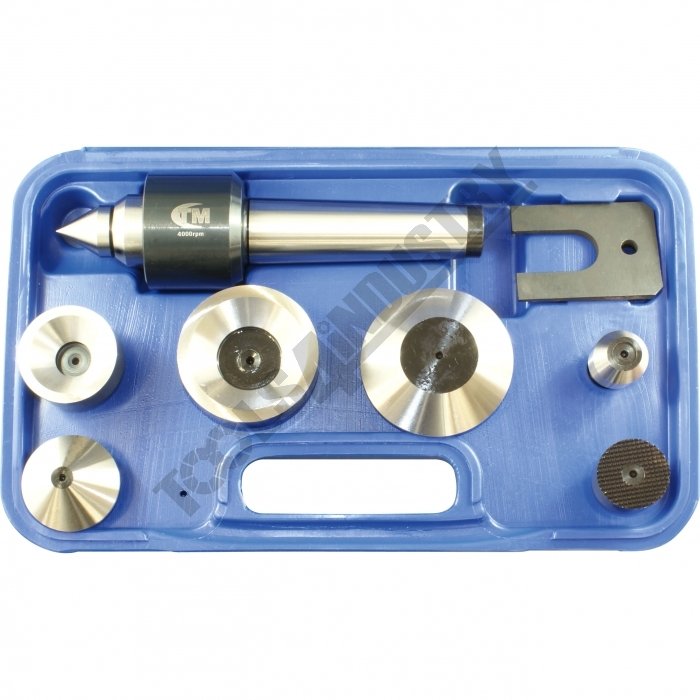

4MT Live Centre Set - Interchangeable Centring Tips
Description
Toolmaster live centre sets are fitted with needle thrust and ball bearings. Suitable for High Speed CNC turning with medium to heavy loads. The shaft is made from alloy steel heat treated to HRC 60° providing high rigidity and high durability.Features
- Maximum Speed: 4000rpm
- Maximum Load: 1200kg
- Accuracy: 0.005mm
- 7 x interchangeable centre tips
Includes

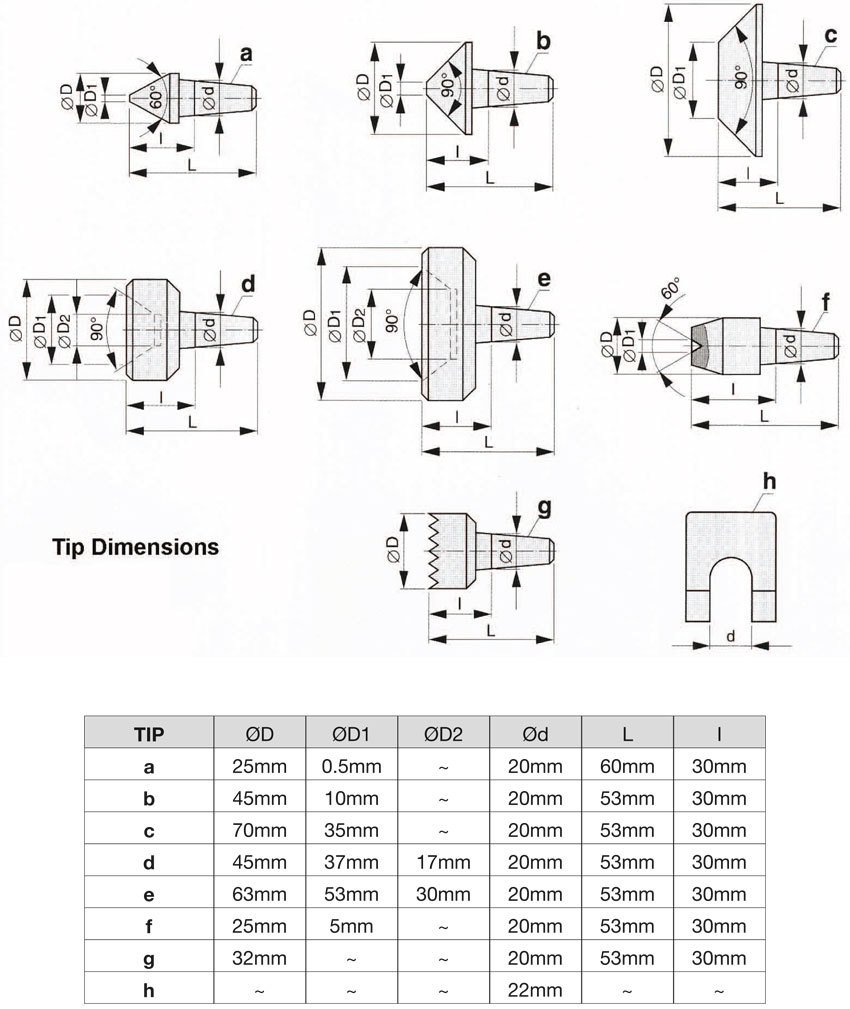

- Interchangeable centre tips:
- 1 x Carbide tip extended point
- 1 x Pipe centre (a)
- 2 x Female cone (b,c)
- 3 x Various standard points
Specifications
- Compare 8 Products
- ORDER CODE
- TaperMT
- Maximum Speedrpm
- Maximum Load Capacitykg
- θ Angle
- A
- B
- C
- D
- D1
- L
- Nett Weightkg
| ORDER CODE | 4MT |
|---|---|
| TaperMT | 4000 |
| Maximum Speedrpm | 1200 |
| Maximum Load Capacitykg | 60 |
| θ Angle | ~ |
| A | ~ |
| B | ~ |
| C | ~ |
| D | ~ |
| D1 | ~ |
| L | 1.74 |
| Nett Weightkg |
