This Product Is No Longer Available

C0631

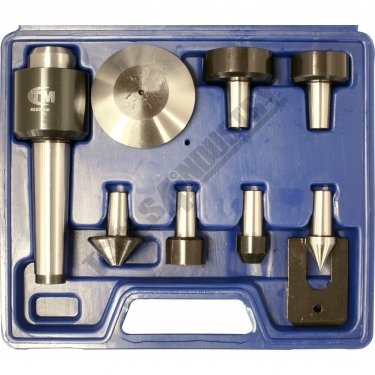

Top View in Case

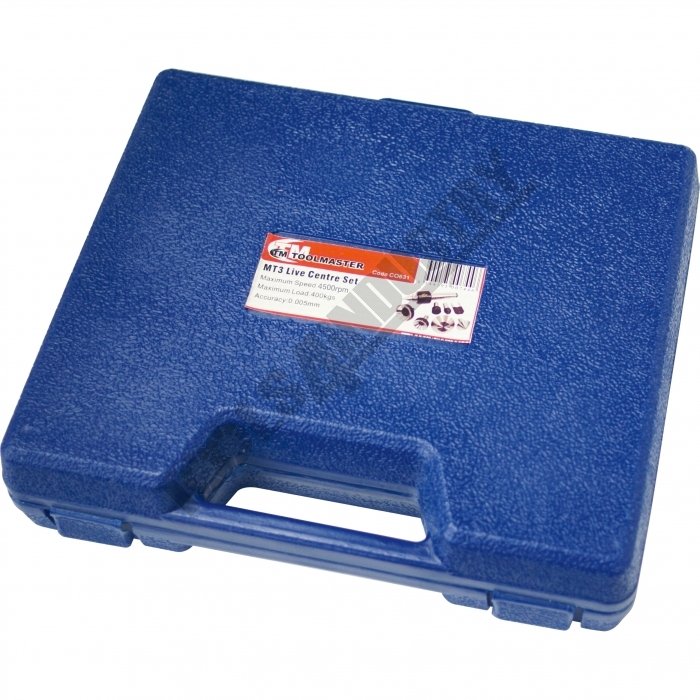

Plastic Case

Code	C0631
Weight (kg)	1.74
Weight (m³)	0.003
Weight (Freight)	1.74
Dimensions (cm)	31 x 16 x 6

Product Brochure

This Product Is No Longer Available

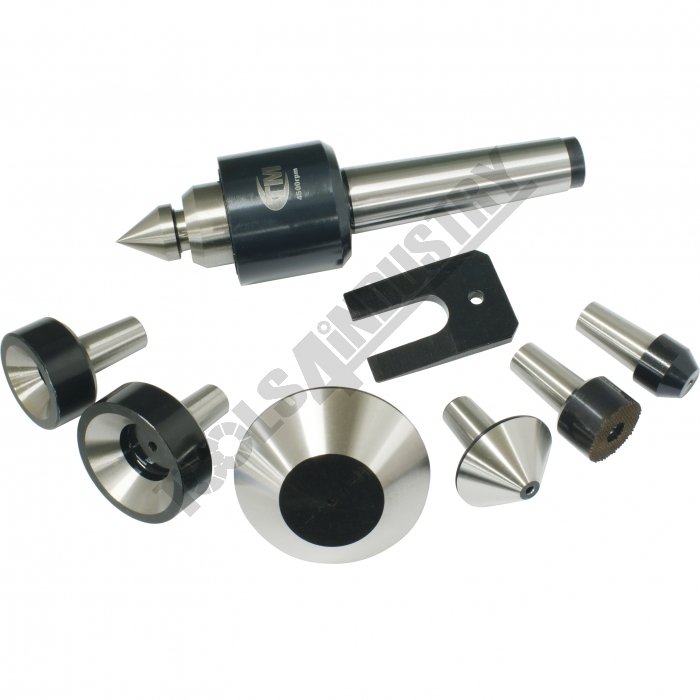

3MT Live Centre Set - Interchangeable Centring Tips

Description

Toolmaster live centre sets are fitted with needle thrust and ball bearings. Suitable for High Speed CNC turning with medium to heavy loads. The shaft is made from alloy steel heat treated to HRC 60° providing high rigidity and high durability.

Features

Maximum Speed: 4500rpm
Maximum Load: 400kg
Accuracy: 0.005mm
7 x interchangeable centre tips

Includes

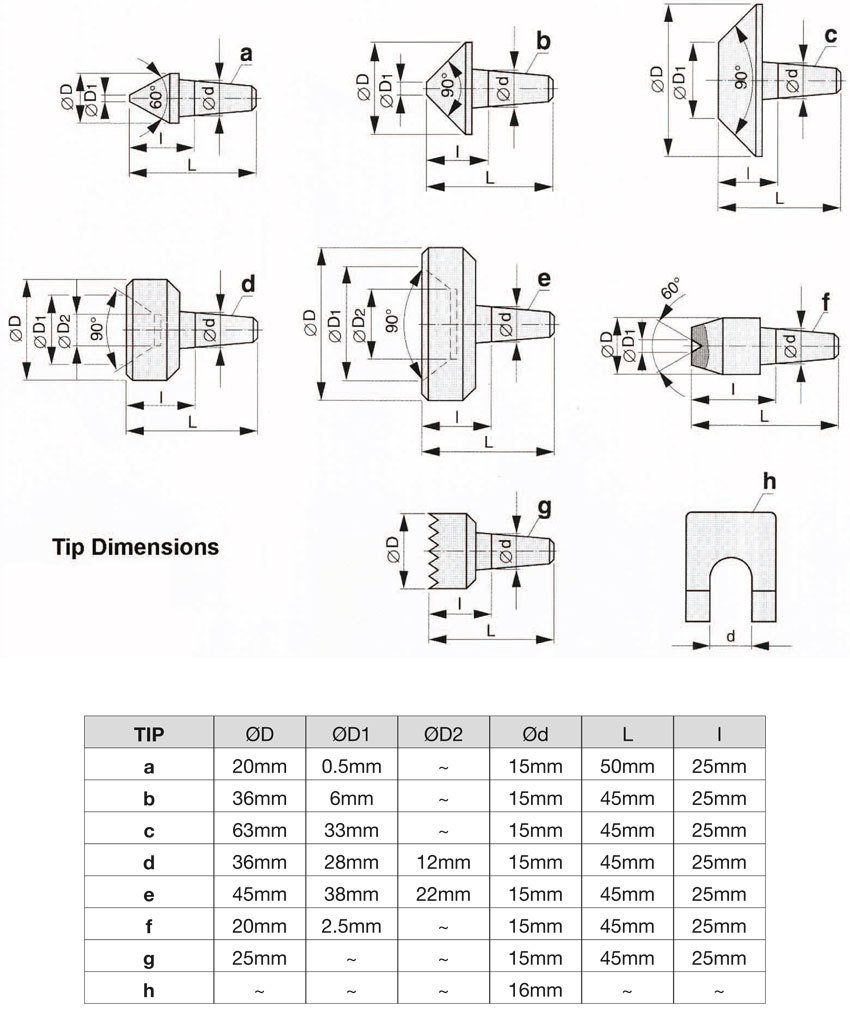

Interchangeable centre tips:
1 x Carbide tip extended point
1 x Pipe centre (a)
2 x Female cone (b,c)
3 x Various standard points

Specifications

Compare 8 Products
ORDER CODE
TaperMT
Maximum Speedrpm
Maximum Load Capacitykg
θ Angle
A
B
C
D
D1
L
Nett Weightkg

C0631
3MT
4500
400
60
~
~
~
~
~
~
1.74

C063
3MT
4000
~
~
~
~
~
~
~
~
1.4

C064
4MT
~
~
~
~
~
~
~
~
~
2.5

C0625
2MT
5000
200
60
22
36
69
32
25
127
0.9

C0635
3MT
3500
400
60
23
44
86
41
30
153
1.2

C0641
4MT
4000
1200
60
~
~
~
~
~
~
1.74

C0645
4MT
3000
600
60
23
51
108
47
32
182
1.65

C062
2MT
4500
~
~
~
~
~
~
~
~
1.75

ORDER CODE	3MT
TaperMT	4500
Maximum Speedrpm	400
Maximum Load Capacitykg	60
θ Angle	~
A	~
B	~
C	~
D	~
D1	~
L	1.74
Nett Weightkg
