C052 Live Centre

Code:	C052
Model:
Capacity:	3MT
Weight (Nett):	1.14 Kg
Weight (Cubic):	0.001 m³
Weight (Freight):	1.14 Kg
Dimensions:	19.7 x 5.9 x 6
In Stock:	Yes

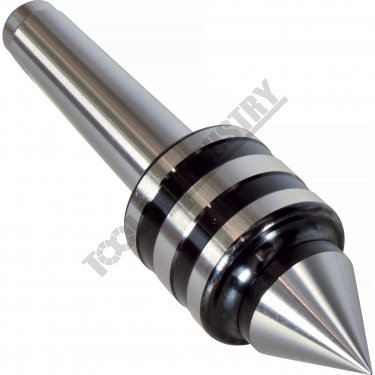

Live Centre

Features
- Centre shaft manufactured from SKS3 steel and vacuum heat treated
- Precision ground
- Concentricity within 0.01mm
- Centre runs on taper roller bearing and needle roller bearing

Array
(
    [0] => C050
    [2] => C052
    [7] => C054
    [13] => C070
    [4] => C072
    [3] => C0731
    [14] => C074
    [8] => C0741
    [16] => C075
    [10] => C0751
    [12] => C076
    [1] => C079
    [6] => C080
    [5] => C0801
    [15] => C081
    [9] => C0811
    [17] => C082
    [11] => C0821
)

All Sorts: Array
(
    [0] => C050
    [1] => C052
    [2] => C054
    [3] => C070
    [4] => C072
    [5] => C0731
    [6] => C074
    [7] => C0741
    [8] => C075
    [9] => C0751
    [10] => C076
    [11] => C079
    [12] => C080
    [13] => C0801
    [14] => C081
    [15] => C0811
    [16] => C082
    [17] => C0821
)

All Codes +  All Sorts: Array
(
    [C050] => C050
    [C052] => C052
    [C054] => C054
    [C070] => C070
    [C072] => C072
    [C0731] => C0731
    [C074] => C074
    [C0741] => C0741
    [C075] => C075
    [C0751] => C0751
    [C076] => C076
    [C079] => C079
    [C080] => C080
    [C0801] => C0801
    [C081] => C081
    [C0811] => C0811
    [C082] => C082
    [C0821] => C0821
)

Current: 2
Max: 11
Back: -1
Next: 1
First: C050
Second: C052
Third: C054
Fourth: C0731

CODE	Taper	Point Type	B	E	F	G	L	Maximum RPM	Maximum Load Capacity	Weight (nett)
C050	2MT	Standard	45mm	44mm	26mm	25mm	145mm	5000rpm	~	0.6kg
C052	3MT	Standard	49.5mm	47mm	36.5mm	24mm	170mm	4500rpm	~	1.14kg
C054	4MT	Standard	50mm	37.3mm	27mm	22.3mm	185mm	~	~	1.32kg
C0731	3MT	Standard	47mm	47mm	32mm	30mm	162mm	5000rpm	400kg	0.98kg
C0741	4MT	Standard	55mm	46mm	43mm	35mm	198mm	3500rpm	1300kg	1.37kg
C0751	5MT	Standard	70mm	54mm	55mm	45mm	240mm	3500rpm	2000kg	3.03kg
C079	2MT	Extended	36mm	29.5mm	28.35mm	22mm	125mm	6000rpm	280kg	0.36kg
C080	3MT	Extended	47mm			30mm	167mm	5000rpm	400kg	0.84kg
C0801	3MT	Extended	47mm	58mm	35mm	30mm	165.5mm	4500rpm	350kg	1kg
C0811	4MT	Extended	55mm	53mm	51mm	35mm	206.5mm	3500rpm	800kg	1kg
C0821	5MT	Extended	70mm	65.5mm	69mm	45mm	264mm	3000rpm	1500kg	~
