B607 Band Saw Blade SUIT BS-12AF

Metal Working > Band Saws & Accessories > Metal Band Saw Blades
B607 Band Saw Blade SUIT BS-12AF

Code:

B607

Model:

SUIT BS-12AF

Capacity:

10-14TPI Bimetal

Weight (Nett):

0.88 Kg

Weight (Cubic):

0.015 m³

Weight (Freight):

4.995 Kg

Dimensions:

50 x 7 x 44

In Stock:

Contact your Dealer

Instruction Sheets

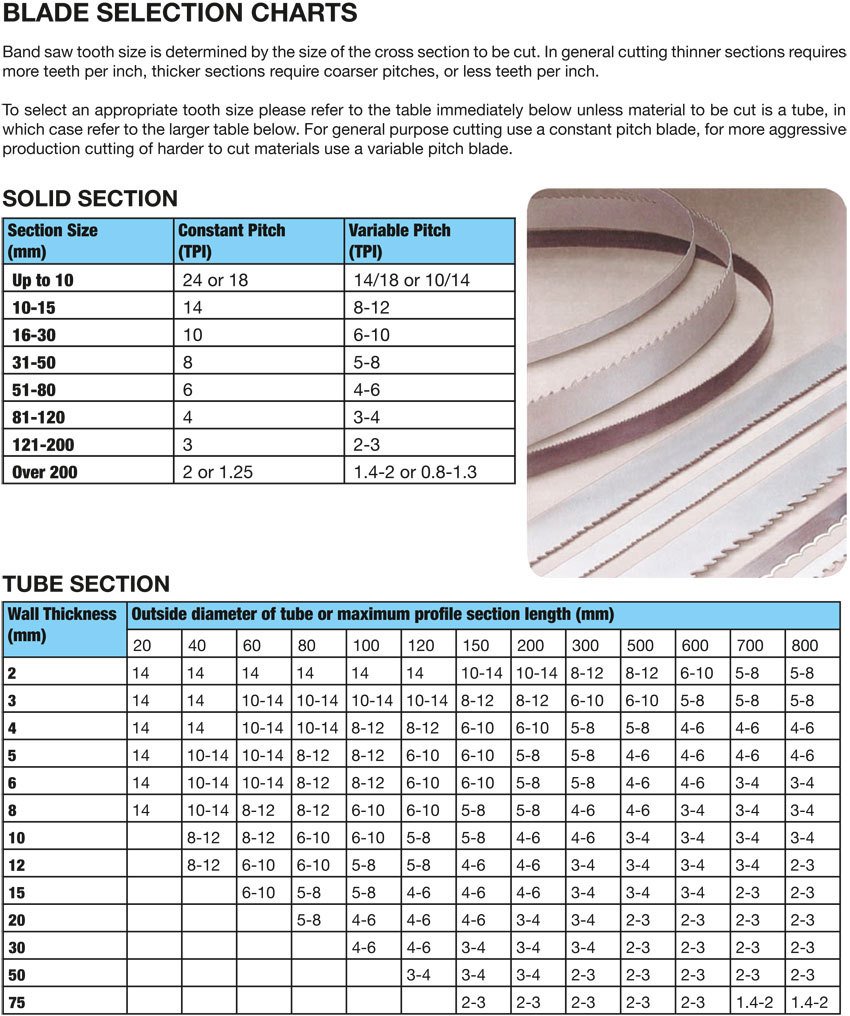

Blade Selection Chart [381.95 KB]

Trouble Shooting Guide [330.4 KB]

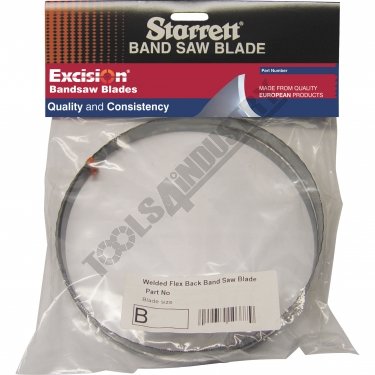

Band Saw Blade

Description
Blades to suit BS-12AF metal cutting band saws

IMPORTANT RUN-IN INSTRUCTIONS FOR BI-METAL BLADES
• Avoid excessive feed pressure on run-in
• Run-in at 3/4 normal feed pressure for first 25 square inches on tough material
• After run-in, gradually increase feed to maximum cutting rate

Array
(
    [1] => B200
    [2] => B203
    [3] => B205
    [4] => B206
    [5] => B207
    [6] => B208
    [7] => B210
    [8] => B212
    [9] => B214
    [10] => B216
    [14] => B220
    [15] => B223
    [16] => B226
    [20] => B228
    [21] => B229
    [22] => B230
    [41] => B240
    [42] => B241
    [29] => B244
    [30] => B246
    [31] => B248
    [32] => B250
    [11] => B400
    [12] => B404
    [13] => B408
    [17] => B412
    [18] => B414
    [19] => B418
    [23] => B419
    [24] => B419A
    [25] => B419B
    [33] => B435
    [34] => B436
    [35] => B438
    [36] => B440
    [94] => B444
    [57] => B446
    [58] => B448
    [59] => B449
    [51] => B452
    [52] => B454
    [53] => B456
    [54] => B458
    [43] => B462
    [44] => B463
    [45] => B464
    [46] => B466
    [47] => B468
    [85] => B469
    [88] => B469A
    [87] => B470
    [90] => B470A
    [86] => B471
    [89] => B471A
    [60] => B478
    [61] => B479
    [62] => B480
    [93] => B484
    [95] => B488
    [72] => B494
    [73] => B496
    [74] => B498
    [75] => B506
    [76] => B507
    [77] => B508
    [26] => B510
    [27] => B512
    [28] => B514
    [67] => B516
    [66] => B518
    [68] => B520
    [69] => B521
    [70] => B522
    [71] => B523
    [91] => B525
    [92] => B526
    [63] => B530
    [64] => B531
    [65] => B532
    [48] => B560
    [49] => B562
    [50] => B564
    [55] => B590
    [56] => B592
    [78] => B593
    [79] => B594
    [80] => B596
    [81] => B598
    [82] => B600
    [83] => B601
    [84] => B602
    [37] => B604
    [38] => B605
    [39] => B606
    [40] => B607
    [0] => M594
)

All Sorts: Array
(
    [0] => B200
    [1] => B203
    [2] => B205
    [3] => B206
    [4] => B207
    [5] => B208
    [6] => B210
    [7] => B212
    [8] => B214
    [9] => B216
    [10] => B220
    [11] => B223
    [12] => B226
    [13] => B228
    [14] => B229
    [15] => B230
    [16] => B240
    [17] => B241
    [18] => B244
    [19] => B246
    [20] => B248
    [21] => B250
    [22] => B400
    [23] => B404
    [24] => B408
    [25] => B412
    [26] => B414
    [27] => B418
    [28] => B419
    [29] => B419A
    [30] => B419B
    [31] => B435
    [32] => B436
    [33] => B438
    [34] => B440
    [35] => B444
    [36] => B446
    [37] => B448
    [38] => B449
    [39] => B452
    [40] => B454
    [41] => B456
    [42] => B458
    [43] => B462
    [44] => B463
    [45] => B464
    [46] => B466
    [47] => B468
    [48] => B469
    [49] => B469A
    [50] => B470
    [51] => B470A
    [52] => B471
    [53] => B471A
    [54] => B478
    [55] => B479
    [56] => B480
    [57] => B484
    [58] => B488
    [59] => B494
    [60] => B496
    [61] => B498
    [62] => B506
    [63] => B507
    [64] => B508
    [65] => B510
    [66] => B512
    [67] => B514
    [68] => B516
    [69] => B518
    [70] => B520
    [71] => B521
    [72] => B522
    [73] => B523
    [74] => B525
    [75] => B526
    [76] => B530
    [77] => B531
    [78] => B532
    [79] => B560
    [80] => B562
    [81] => B564
    [82] => B590
    [83] => B592
    [84] => B593
    [85] => B594
    [86] => B596
    [87] => B598
    [88] => B600
    [89] => B601
    [90] => B602
    [91] => B604
    [92] => B605
    [93] => B606
    [94] => B607
    [95] => M594
)

All Codes +  All Sorts: Array
(
    [B200] => B200
    [B203] => B203
    [B205] => B205
    [B206] => B206
    [B207] => B207
    [B208] => B208
    [B210] => B210
    [B212] => B212
    [B214] => B214
    [B216] => B216
    [B220] => B220
    [B223] => B223
    [B226] => B226
    [B228] => B228
    [B229] => B229
    [B230] => B230
    [B240] => B240
    [B241] => B241
    [B244] => B244
    [B246] => B246
    [B248] => B248
    [B250] => B250
    [B400] => B400
    [B404] => B404
    [B408] => B408
    [B412] => B412
    [B414] => B414
    [B418] => B418
    [B419] => B419
    [B419A] => B419A
    [B419B] => B419B
    [B435] => B435
    [B436] => B436
    [B438] => B438
    [B440] => B440
    [B444] => B444
    [B446] => B446
    [B448] => B448
    [B449] => B449
    [B452] => B452
    [B454] => B454
    [B456] => B456
    [B458] => B458
    [B462] => B462
    [B463] => B463
    [B464] => B464
    [B466] => B466
    [B468] => B468
    [B469] => B469
    [B469A] => B469A
    [B470] => B470
    [B470A] => B470A
    [B471] => B471
    [B471A] => B471A
    [B478] => B478
    [B479] => B479
    [B480] => B480
    [B484] => B484
    [B488] => B488
    [B494] => B494
    [B496] => B496
    [B498] => B498
    [B506] => B506
    [B507] => B507
    [B508] => B508
    [B510] => B510
    [B512] => B512
    [B514] => B514
    [B516] => B516
    [B518] => B518
    [B520] => B520
    [B521] => B521
    [B522] => B522
    [B523] => B523
    [B525] => B525
    [B526] => B526
    [B530] => B530
    [B531] => B531
    [B532] => B532
    [B560] => B560
    [B562] => B562
    [B564] => B564
    [B590] => B590
    [B592] => B592
    [B593] => B593
    [B594] => B594
    [B596] => B596
    [B598] => B598
    [B600] => B600
    [B601] => B601
    [B602] => B602
    [B604] => B604
    [B605] => B605
    [B606] => B606
    [B607] => B607
    [M594] => M594
)

Current: 37
Max: 37
Back: -1
Next: NO
First: B604
Second: B605
Third: B606
Fourth: B607

CODE	Suits Band Saw Models	Blade Size	TPI	Type	Application
B200	BS-4A/5	1645 x 12.7mm	6TPI	CARBON	Timber
B203	BS-4A/5	1645 x 12.7mm	14TPI	CARBON	Solid Steel
B205	BS-4A/5	1645 x 12.7mm	18TPI	CARBON	Tubular Steel
B206	BS-5S	1727 x 12.7mm	6TPI	CARBON	Timber
B207	BS-5S	1727 x 12.7mm	14TPI	CARBON	Solid Steel
B208	BS-5S	1727 x 12.7mm	18TPI	CARBON	Tubular Steel
B210	BS-7LA/S	2362 x 19mm	6TPI	CARBON	From 25-50mm
B212	BS-7LA/S	2362 x 19mm	8TPI	CARBON	From 13-40mm
B214	BS-7LA/S	2362 x 19mm	10TPI	CARBON	From 9.5-35mm
B216	BS-7LA/S	2362 x 19mm	14TPI	CARBON	From 6.4-22mm
B220	BS-912	2654 x 25.4mm	6TPI	CARBON	From 25-50mm
B223	BS-912	2654 x 25.4mm	10TPI	CARBON	From 9.5-35mm
B226	BS-912	2654 x 25.4mm	14TPI	CARBON	From 6.4-22mm
B400	BS-7LA/S	2362 x 19mm	4-6TPI	BIMETAL	From 25-75mm
B404	BS-7LA/S	2362 x 19mm	6-10TPI	BIMETAL	From 9.5-50mm
B408	BS-7LA/S	2362 x 19mm	10-14TPI	BIMETAL	From 6.4-35mm
B412	BS-912	2654 x 25.4mm	4-6TPI	BIMETAL	From 25-75mm
B414	BS-912	2654 x 25.4mm	6-10TPI	BIMETAL	From 9.5-50mm
B418	BS-912	2654 x 25.4mm	10-14TPI	BIMETAL	From 6.4-35mm
B462	BS-250 or BS-10L	3302 x 25.4mm	2-3TPI	BIMETAL	From 50-150mm
B464	BS-250 or BS-10L	3302 x 25.4mm	4-6TPI	BIMETAL	From 25-75mm
B466	BS-250 or BS-10L	3302 x 25.4mm	6-10TPI	BIMETAL	From 9.5-50mm
B468	BS-250 or BS-10L	3302 x 25.4mm	10-14TPI	BIMETAL	From 6.4-35mm
B480	EB-260A/280DS	2480 x 27mm	10-14TPI	BIMETAL	From 6.4-35mm
B590	BS-13DS	3810 x 27mm	3-4TPI	BIMETAL	From 38-100mm
B592	BS-13DS	3810 x 27mm	4-6TPI	BIMETAL	From 25-75mm
B593	H-300HA-NC	3920 x 34 x 1.1mm	3-4TPI	BIMETAL	From 38-100mm
B594	H-300HA-NC	3920 x 34 x 1.1mm	4-6TPI	BIMETAL	From 25-75mm
B596	H-400HA-NC	4880 x 41 x 1.3mm	4-6TPI	BIMETAL	From 25-75mm
B598	H-400HA-NC	4880 x 41 x 1.3mm	6-10TPI	BIMETAL	From 9.5-50mm
B600	H-460HA-NC	5450 x 41 x 1.3mm	2-3TPI	BIMETAL	From 40-110mm
B601	H-460HA-NC	5450 x 41 x 1.3mm	3-4TPI	BIMETAL	From 38-100mm
B602	H-460HA-NC	5450 x 41 x 1.3mm	4-6TPI	BIMETAL	From 25-75mm
B604	BS-12AF	3820 x 27 x 0.9mm	2-3TPI	BIMETAL	From 40-110mm
B605	BS-12AF	3820 x 27 x 0.9mm	4-6TPI	BIMETAL	From 25-75mm
B606	BS-12AF	3820 x 27 x 0.9mm	6-10TPI	BIMETAL	From 9.5-50mm
B607	BS-12AF	3820 x 27 x 0.9mm	10-14TPI	BIMETAL	From 6.4-35mm
