B062 Swivel Head Metal Cutting Band Saw EB-260A

Metal Working > Band Saws & Accessories > Horizontal Metal Band Saws
B062 Swivel Head Metal Cutting Band Saw EB-260A

Code:

B062

Model:

EB-260A

Capacity:

245 x 180mm (W x H) Rectangle

Weight (Nett):

216 Kg

Weight (Cubic):

0.693 m³

Weight (Freight):

230.769 Kg

Dimensions:

135 x 57 x 90

In Stock:

Yes

Instruction Sheets

Trouble Shooting Guide [330.4 KB]

Blade Selection Chart [381.95 KB]

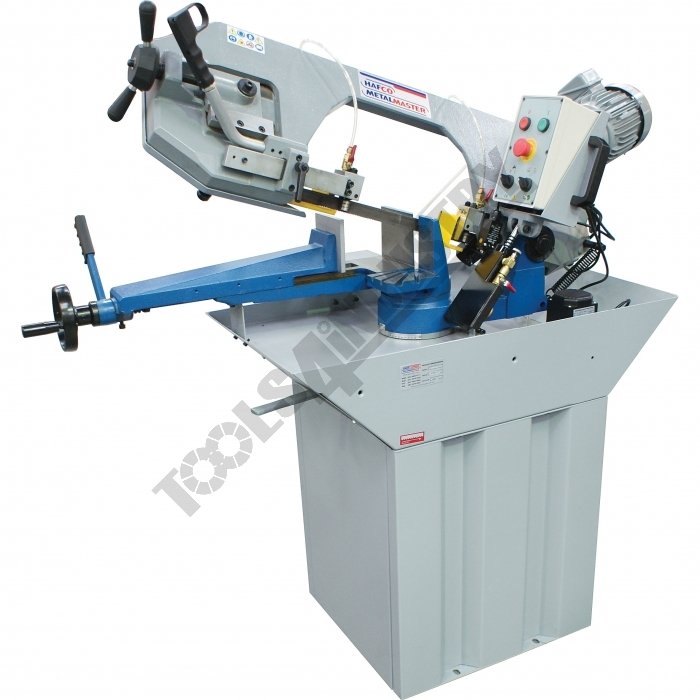

Swivel Head Metal Cutting Band Saw

Features
- 245 x 180mm rectangular capacity
- Larger cutting capacity than conventional cold saws

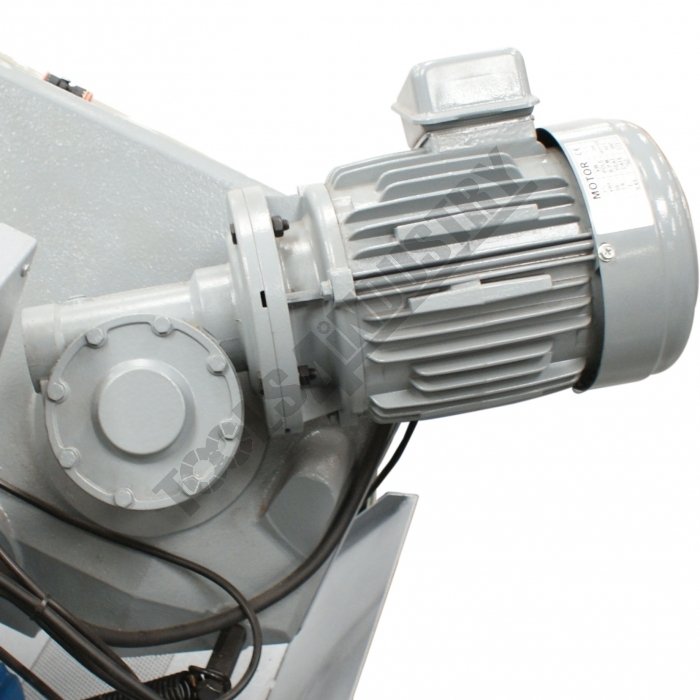

- Heavy-duty gear drive system

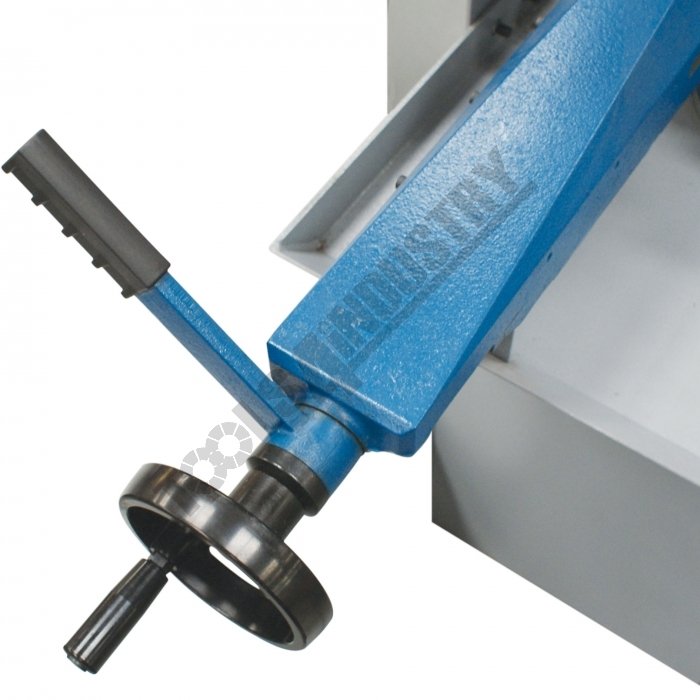

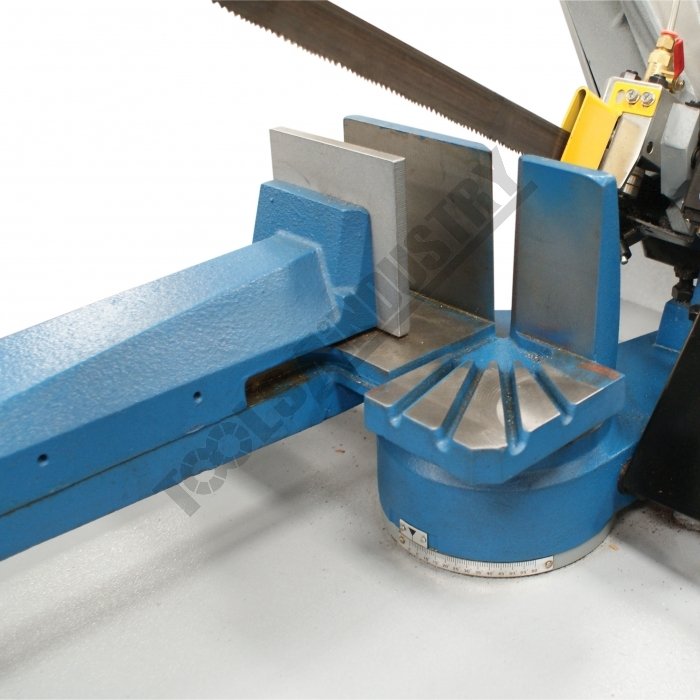

- Quick-action lock/release vice

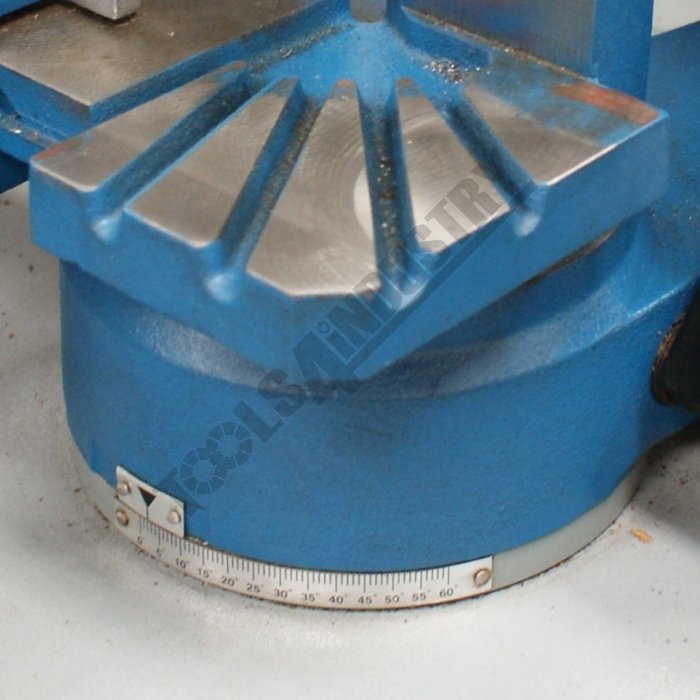

- Swivel head mitre cut to 60º right
- Quick action lock/release lever for swivel head

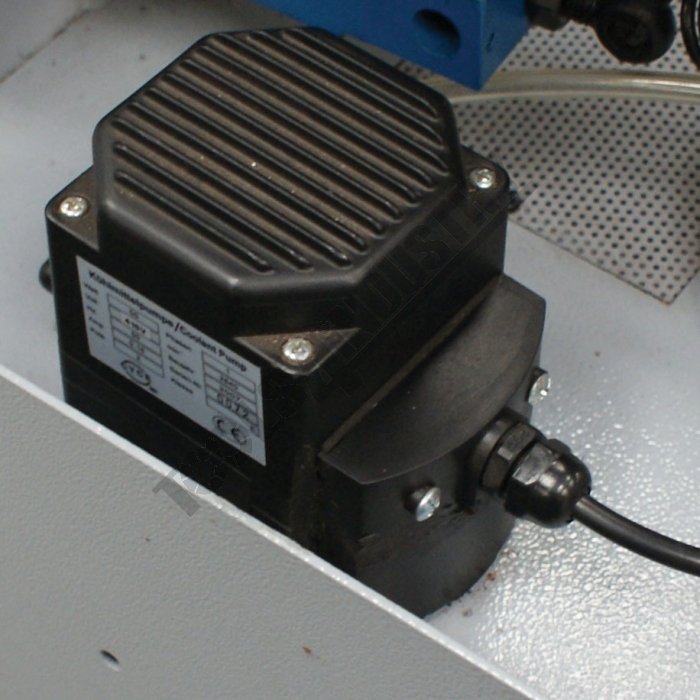

- Coolant system for cutting efficiency and blade life
- Input support roller for long stock

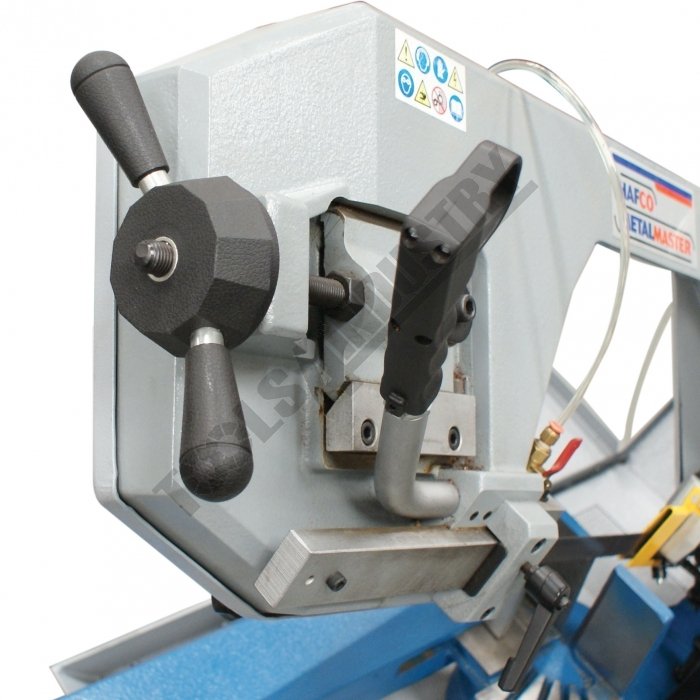

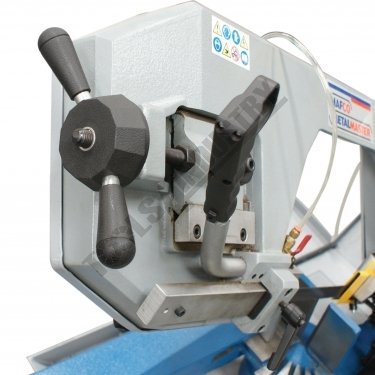

- User friendly blade tension system

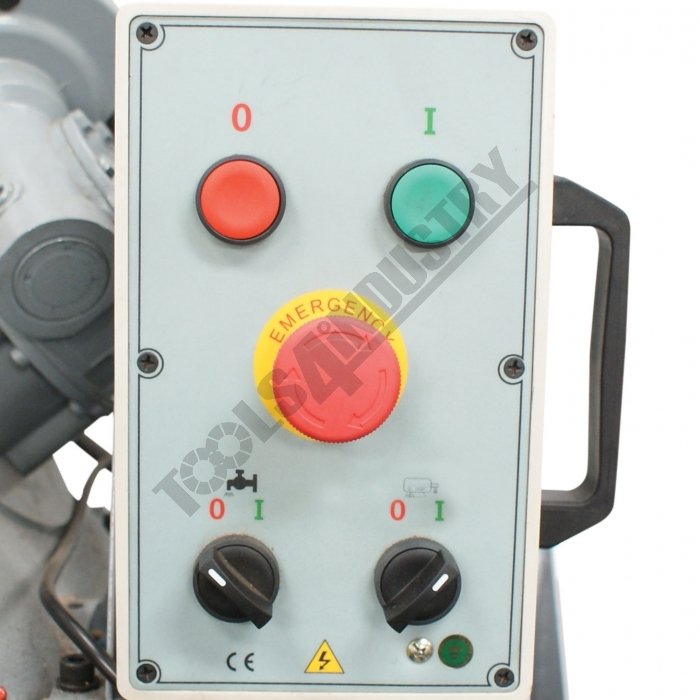

- Control panel mounted for easy access

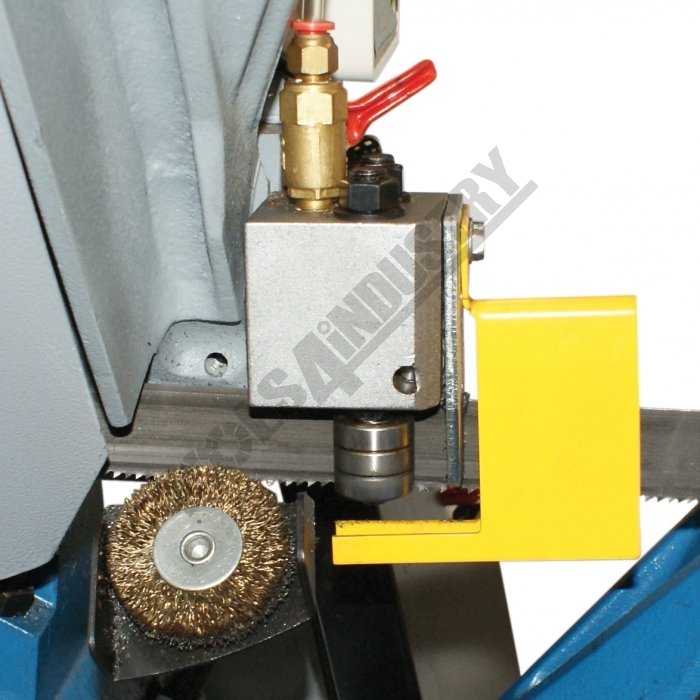

- Ball bearing blade guides ensures minimal blade clearance wear & increases blade life due to less friction
- Blade cleaning brush incorporated into blade guide system

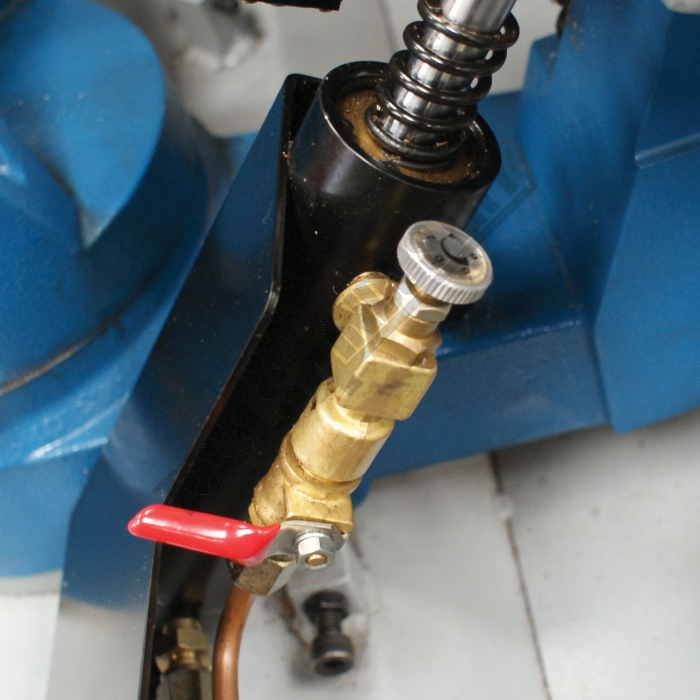

- Adjustable hydraulic cylinder for auto feed
- 1-speed 240V motor enabling blade speeds of 90mpm
- Vibration free, low noise operation ensures clean & high precision cuts
- Machine stand with integrated cooling fitted as standard

Array
(
    [0] => B002
    [2] => B003
    [39] => B005
    [3] => B006
    [4] => B008A
    [1] => B009
    [5] => B014
    [6] => B015
    [42] => B016
    [14] => B018
    [15] => B021
    [16] => B028
    [17] => B029
    [18] => B030
    [38] => B031
    [45] => B033
    [21] => B034
    [22] => B035
    [19] => B036
    [20] => B037
    [40] => B038V
    [44] => B039
    [24] => B040
    [46] => B041A
    [25] => B042
    [7] => B061
    [8] => B062
    [9] => B063
    [10] => B067
    [11] => B067D
    [41] => B068
    [13] => B072
    [26] => B090
    [23] => B100
    [43] => B106
    [27] => B118
    [28] => B120
    [29] => B122
    [30] => B124
    [31] => B128
    [32] => B129
    [33] => B130
    [34] => B131
    [35] => B132
    [36] => B134
    [37] => B140
    [12] => K003
)

All Sorts: Array
(
    [0] => B002
    [1] => B003
    [2] => B005
    [3] => B006
    [4] => B008A
    [5] => B009
    [6] => B014
    [7] => B015
    [8] => B016
    [9] => B018
    [10] => B021
    [11] => B028
    [12] => B029
    [13] => B030
    [14] => B031
    [15] => B033
    [16] => B034
    [17] => B035
    [18] => B036
    [19] => B037
    [20] => B038V
    [21] => B039
    [22] => B040
    [23] => B041A
    [24] => B042
    [25] => B061
    [26] => B062
    [27] => B063
    [28] => B067
    [29] => B067D
    [30] => B068
    [31] => B072
    [32] => B090
    [33] => B100
    [34] => B106
    [35] => B118
    [36] => B120
    [37] => B122
    [38] => B124
    [39] => B128
    [40] => B129
    [41] => B130
    [42] => B131
    [43] => B132
    [44] => B134
    [45] => B140
    [46] => K003
)

All Codes +  All Sorts: Array
(
    [B002] => B002
    [B003] => B003
    [B005] => B005
    [B006] => B006
    [B008A] => B008A
    [B009] => B009
    [B014] => B014
    [B015] => B015
    [B016] => B016
    [B018] => B018
    [B021] => B021
    [B028] => B028
    [B029] => B029
    [B030] => B030
    [B031] => B031
    [B033] => B033
    [B034] => B034
    [B035] => B035
    [B036] => B036
    [B037] => B037
    [B038V] => B038V
    [B039] => B039
    [B040] => B040
    [B041A] => B041A
    [B042] => B042
    [B061] => B061
    [B062] => B062
    [B063] => B063
    [B067] => B067
    [B067D] => B067D
    [B068] => B068
    [B072] => B072
    [B090] => B090
    [B100] => B100
    [B106] => B106
    [B118] => B118
    [B120] => B120
    [B122] => B122
    [B124] => B124
    [B128] => B128
    [B129] => B129
    [B130] => B130
    [B131] => B131
    [B132] => B132
    [B134] => B134
    [B140] => B140
    [K003] => K003
)

Current: 11
Max: 12
Back: -1
Next: 1
First: B021
Second: B061
Third: B062
Fourth: K003

CODE	B021	B061	B062	K003
Model	BS-10LS	EB-260A	EB-260A (240V)	EB-320DSV
Cutting Head Beam	Manual	Manual	Manual	Manual
Operation Type	Swivel Head	Swivel Head	Swivel Head	Swivel Head - Dual Mitre
Round @ 90º	250mm	225mm	225mm	255mm
Round @ 45º	235mm	160mm	160mm	195mm
Round @ 60º	~	100mm	100mm	115mm
Square @ 90º	250mm	220mm	220mm	230mm
Square @ 45º	235mm	160mm	160mm	195mm
Square @ 60º	~	100mm	100mm	115mm
Rectangle (W x H) @ 90º	468 x 250mm	245 x 180mm	245 x 180mm	315 x 230mm
Rectangle (W x H) @ 45º	250 x 240mm	160 x 160mm	160 x 160mm	195 x 230mm
Rectangle (W x H) @ 60º	~	100 x 100mm	100 x 100mm	115 x 160mm
Cutting Beam Return	Manual	Manual	Manual	Manual
Vice Clamping Fixture	Manual	Manual - Quick Action	Manual - Quick Action	Manual - Quick Action
Bundle Cutting Fixture	~	~	~	~
Coolant System	Yes	Yes	Yes	Yes
Table Working Height	570mm	950mm	950mm	950mm
Blade Steps / Speeds	Variable 18-102 M/min	45-90 M/min	90 M/min	20-75 M/min
Blade Size (L x W x T)	3090 x 27 x 0.9mm	2480 x 27 x 0.9mm	2480 x 27 x 0.9mm	2750 x 27 x 0.9mm
Motor Power	1.5kW / 2hp	1.1kW / 1.5hp	1.1kW / 1.5hp	1.5kW / 2hp
Voltage	415V	415V	240V	415V
Weight (nett)	380kg	216kg	216kg	380kg

Recommended Accessories

S091 - Soluble Oil Type Synthetic Metal Cutting Fluid 20 Litre
S090 - Soluble Oil Type Synthetic Metal Cutting Fluid 5 Litre
L812 - 290mm Roller Conveyor 3 Metre
L814 - 290mm Roller Conveyor Stand 715-1050mm
L800 - 3000mm Roller Conveyor Length Stop Suits 290mm Conveyor
M800 - RFM-1500 Rubber Mat - Anti-Fatigue 1505 x 905mm
