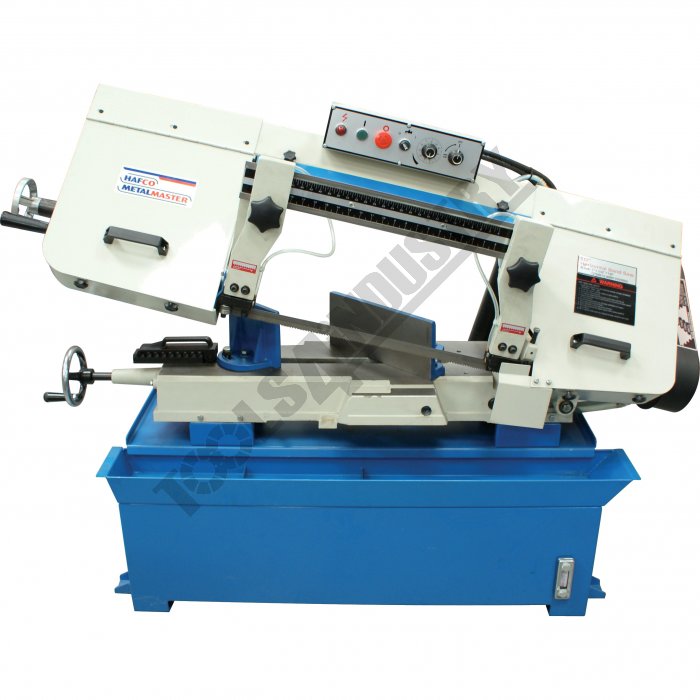

B018 Metal Cutting Band Saw BS-250

Metal Cutting Band Saw

Description
The BS-250 heavy duty metal cutting band saw has many features on offer with a cutting capacity of up to 250mm diameter or 415 x 250mm in steel at 90º and two ball bearings per side on the blade guides for optimal control and accuracy. There is a choice of four blade speeds via an adjustable 4 stage pulley system so that the cutting speed can be changed to suit a wide range of materials, whilst the built-in coolant system ensures maximum cutting efficiency and longer blade life. Both blade control arms are adjustable, allowing them to be positioned as close to the cut as possible. This means reliably and accurate cuts!

The cutting operation works automatically with the weight of the head providing the cutting force and a limit switch shutting the machine down when the cut is complete. The weight of the head is counterbalanced by an adjustable hydraulic damper to control the feed rate, an excellent machine choice for maintenance shops, steel fabrications, and engineering workshops.

Features
- 415 x 250mm (W x H) rectangular capacity
- Adjustable hydraulic feed cutting rate for multiple applications
- Mitre cuts to 45º using calibrated vice
- Built-in coolant system for maximum cutting efficiency
- Limit switch stops machine when cut is complete

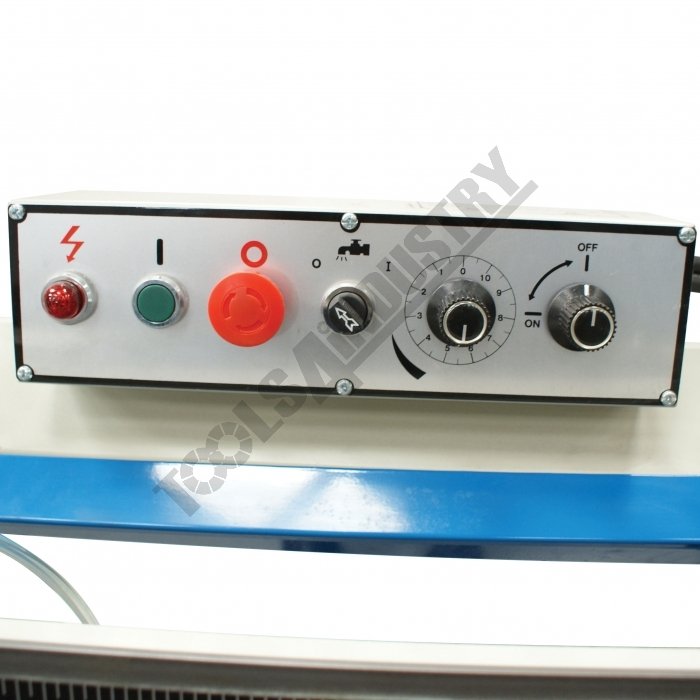

- Control panel located on top of arm for easy use
- Coolant system with flow control valve
- Cast iron frame with heavy duty fabricated base

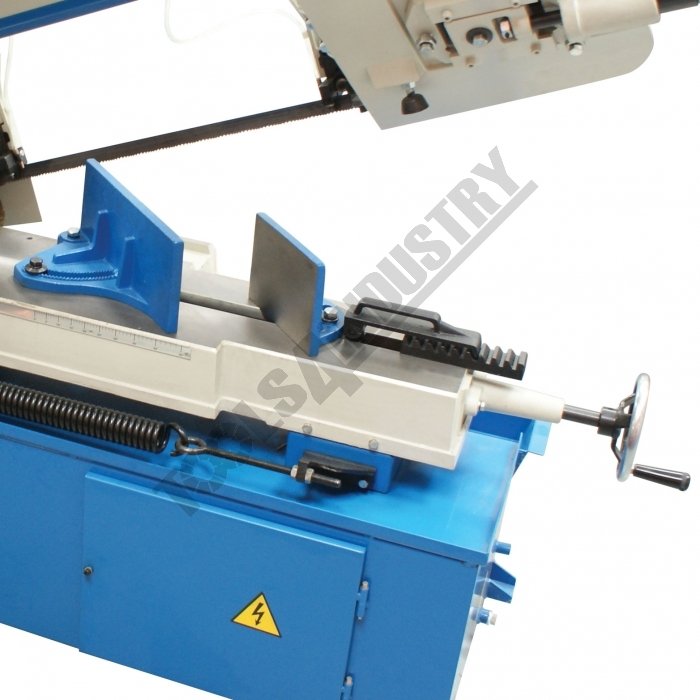

- Quick action material clamping system

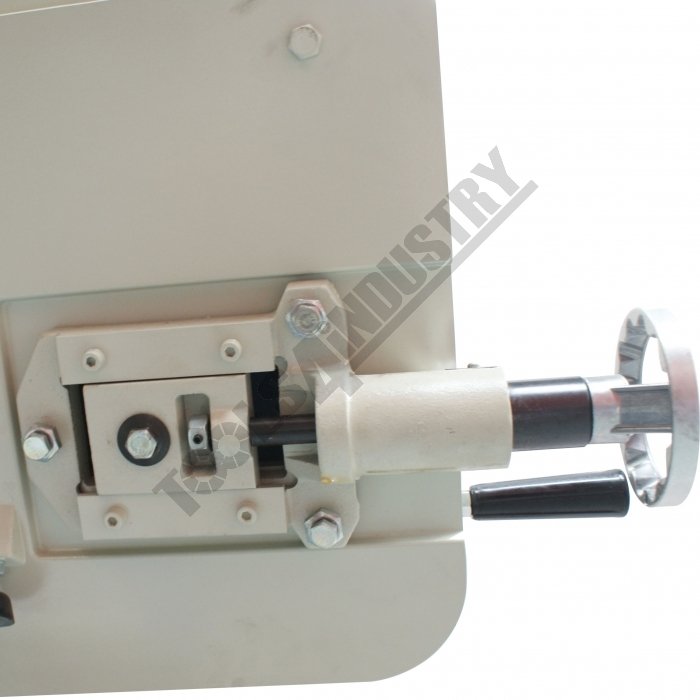

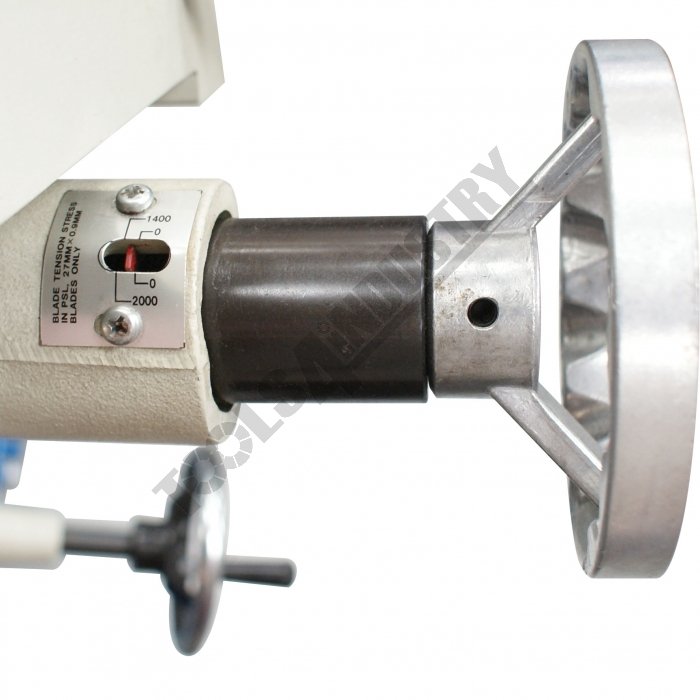

- Blade tension dial with scale for optimum settings

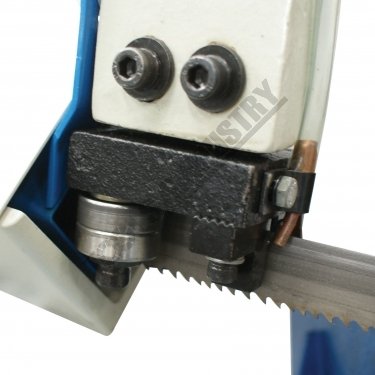

- Adjustable blade roller guides provides accurate cutting

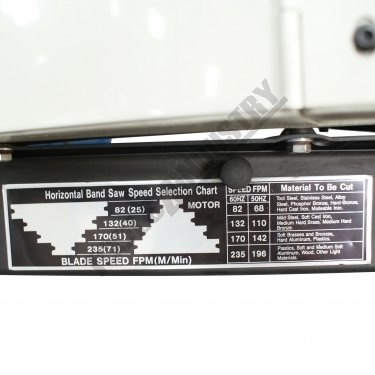

- Adjustable 4-speed pulley drive system enabling 21-34-43-60mpm cutting speeds
- Adjustable length stop for repetition cutting

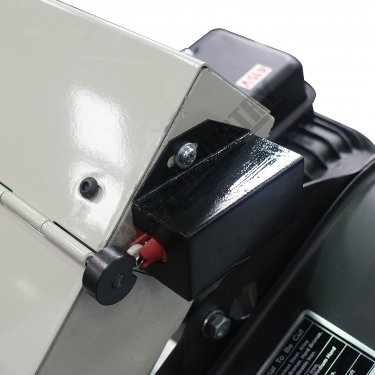

- Automatic electric cut-out switch
- Wire wheel brush to clean swarf from blade
- Heavy-duty gearbox drive
- Heavy-duty 1.5kw/415V fully enclosed fan-cooled motor

Array ( [0] => B002 [2] => B003 [39] => B005 [3] => B006 [4] => B008A [1] => B009 [5] => B014 [6] => B015 [42] => B016 [14] => B018 [15] => B021 [16] => B028 [17] => B029 [18] => B030 [38] => B031 [45] => B033 [21] => B034 [22] => B035 [19] => B036 [20] => B037 [40] => B038V [44] => B039 [24] => B040 [46] => B041A [25] => B042 [7] => B061 [8] => B062 [9] => B063 [10] => B067 [11] => B067D [41] => B068 [13] => B072 [26] => B090 [23] => B100 [43] => B106 [27] => B118 [28] => B120 [29] => B122 [30] => B124 [31] => B128 [32] => B129 [33] => B130 [34] => B131 [35] => B132 [36] => B134 [37] => B140 [12] => K003 )
All Sorts: Array ( [0] => B002 [1] => B003 [2] => B005 [3] => B006 [4] => B008A [5] => B009 [6] => B014 [7] => B015 [8] => B016 [9] => B018 [10] => B021 [11] => B028 [12] => B029 [13] => B030 [14] => B031 [15] => B033 [16] => B034 [17] => B035 [18] => B036 [19] => B037 [20] => B038V [21] => B039 [22] => B040 [23] => B041A [24] => B042 [25] => B061 [26] => B062 [27] => B063 [28] => B067 [29] => B067D [30] => B068 [31] => B072 [32] => B090 [33] => B100 [34] => B106 [35] => B118 [36] => B120 [37] => B122 [38] => B124 [39] => B128 [40] => B129 [41] => B130 [42] => B131 [43] => B132 [44] => B134 [45] => B140 [46] => K003 )
All Codes + All Sorts: Array ( [B002] => B002 [B003] => B003 [B005] => B005 [B006] => B006 [B008A] => B008A [B009] => B009 [B014] => B014 [B015] => B015 [B016] => B016 [B018] => B018 [B021] => B021 [B028] => B028 [B029] => B029 [B030] => B030 [B031] => B031 [B033] => B033 [B034] => B034 [B035] => B035 [B036] => B036 [B037] => B037 [B038V] => B038V [B039] => B039 [B040] => B040 [B041A] => B041A [B042] => B042 [B061] => B061 [B062] => B062 [B063] => B063 [B067] => B067 [B067D] => B067D [B068] => B068 [B072] => B072 [B090] => B090 [B100] => B100 [B106] => B106 [B118] => B118 [B120] => B120 [B122] => B122 [B124] => B124 [B128] => B128 [B129] => B129 [B130] => B130 [B131] => B131 [B132] => B132 [B134] => B134 [B140] => B140 [K003] => K003 )
Current: 8
Max: 12
Back: -1
Next: 1
First: B015
Second: B018
Third: B021
Fourth: B061

CODE	B015	B018	B021	B061
Model	BS-916A	BS-250	BS-10LS	EB-260A
Cutting Head Beam	Manual	Manual	Manual	Manual
Operation Type	Fixed	Fixed	Swivel Head	Swivel Head
Round @ 90º	228mm	250mm	250mm	225mm
Round @ 45º	180mm	190mm	235mm	160mm
Round @ 60º	~	~	~	100mm
Square @ 90º	228mm	250mm	250mm	220mm
Square @ 45º	150mm	190mm	235mm	160mm
Square @ 60º	~	~	~	100mm
Rectangle (W x H) @ 90º	406 x 125mm	415 x 250mm	468 x 250mm	245 x 180mm
Rectangle (W x H) @ 45º	180 x 150mm	250 x 190mm	250 x 240mm	160 x 160mm
Rectangle (W x H) @ 60º	~	~	~	100 x 100mm
Cutting Beam Return	Manual	Manual	Manual	Manual
Vice Clamping Fixture	Manual	Manual	Manual	Manual - Quick Action
Bundle Cutting Fixture	~	~	~	~
Coolant System	Yes	Yes	Yes	Yes
Table Working Height	675mm	600mm	570mm	950mm
Blade Steps / Speeds	25-40-52-72 M/min	21-34-43-60 M/min	Variable 18-102 M/min	45-90 M/min
Blade Size (L x W x T)	2908 x 27 x 0.9mm	3302 x 27 x 0.9mm	3090 x 27 x 0.9mm	2480 x 27 x 0.9mm
Motor Power	1.1kW / 1.5hp	1.5kW / 2hp	1.5kW / 2hp	1.1kW / 1.5hp
Voltage	240V	415V	415V	415V
Weight (nett)	320kg	360kg	380kg	216kg
