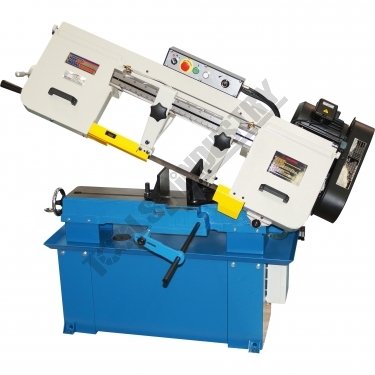

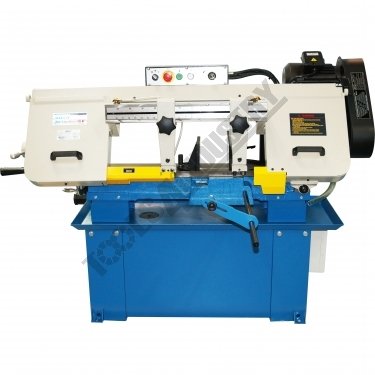

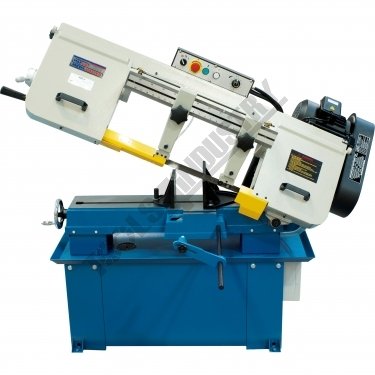

B015 Metal Cutting Band Saw BS-916A

Metal Cutting Band Saw

Description
The BS-916A is a largest 240 volt band saw suitable for the medium/heavy fabrication and general engineering workshops. It features increased motor power, four blade speeds, double row ball bearing blade guides, a built-in coolant system, quick action sliding vice and greatly increased cutting capacity

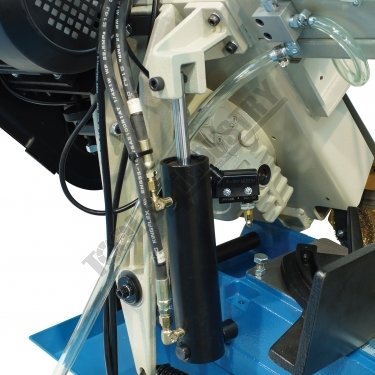

The downward cutting pressure is controlled by a fully adjustable hydraulic damper with an on/off valve and there is an automatic cut-off at the end of the cut. The vice rotates for mitre cutting and there is an adjustable material stop for consistent repeat length cutting.

Features
- 406 x 125mm (W x H) rectangular capacity
- Adjustable hydraulic feed cutting rate for multiple applications

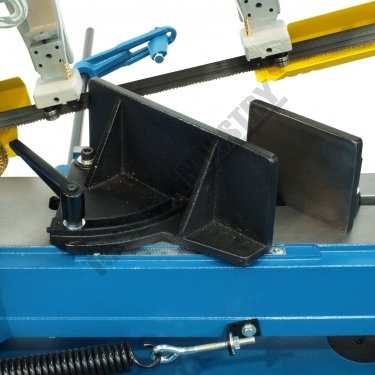

- Mitre cuts to 45º using calibrated vice

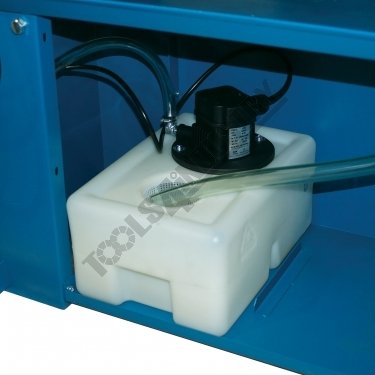

- Built-in coolant system for maximum cutting efficiency

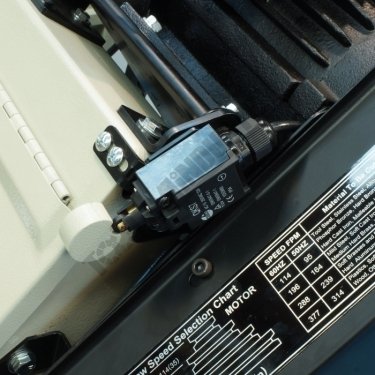

- Limit switch stops machine when cut is complete

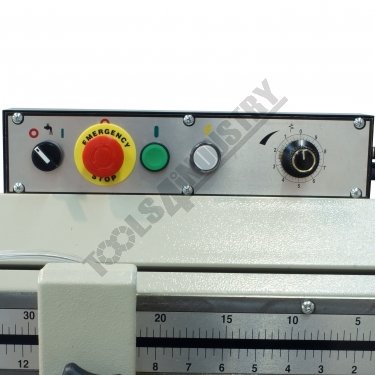

- Control panel located on top of arm for easy use

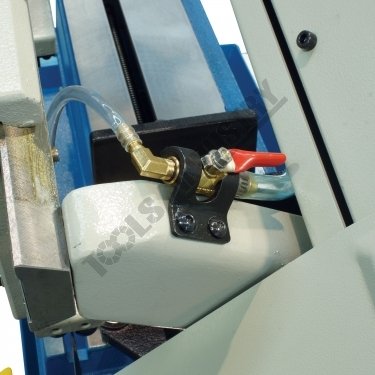

- Coolant system with flow control valve
- Cast Iron frame with heavy duty fabricated base

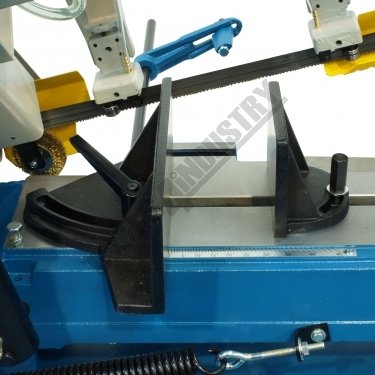

- Quick action material clamping system

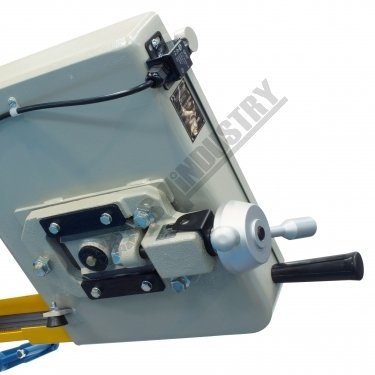

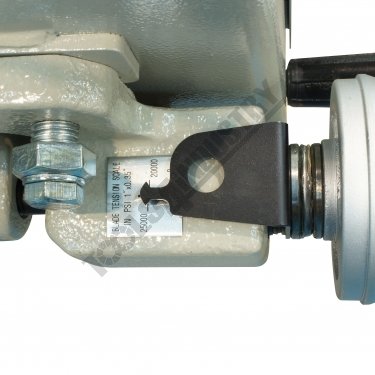

- Blade tension lever with scale for optimum settings

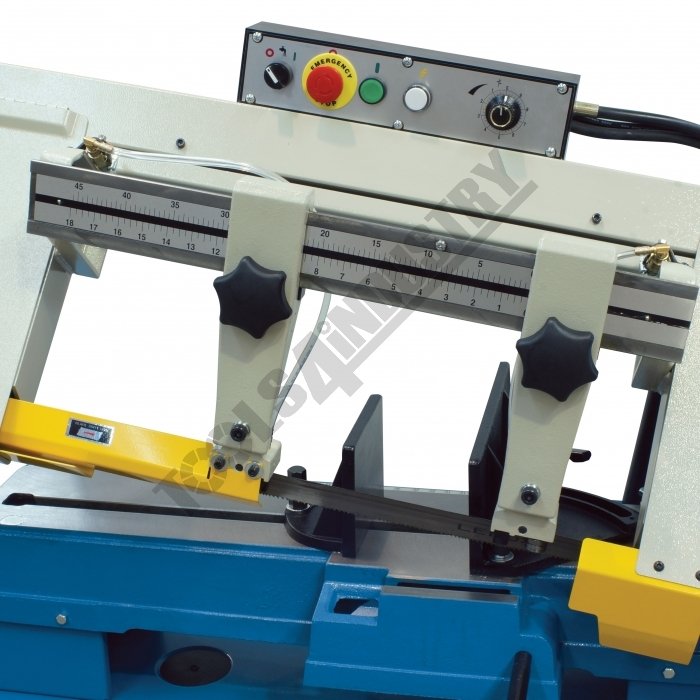

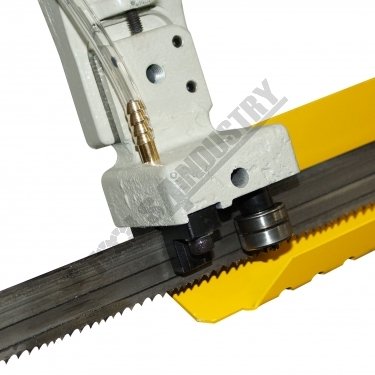

- Adjustable blade roller guides provides accurate cutting

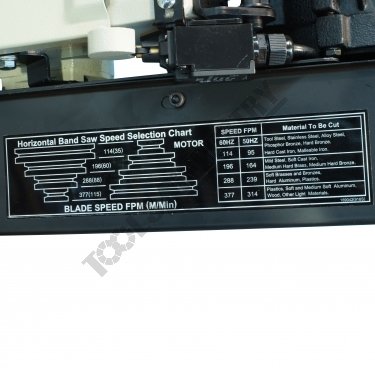

- Adjustable 4-speed pulley drive system enabling 25-40-52-72mpm cutting speeds

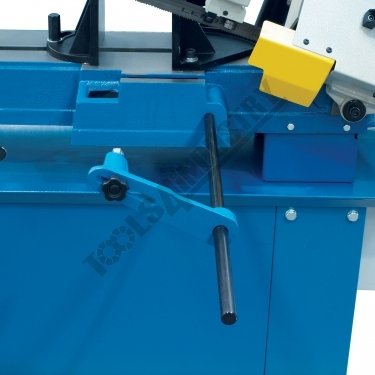

- Adjustable length stop for repetition cutting
- Automatic electric cut-out switch

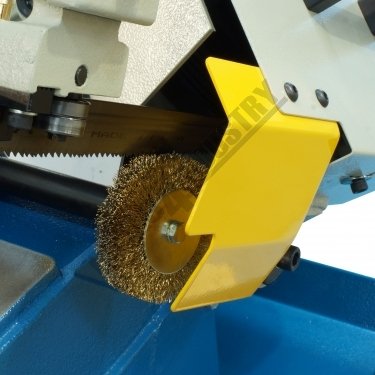

- Wire wheel brush to clean swarf from blade
- Heavy-duty gearbox drive
- Heavy-duty 1.1kW/240V fully enclosed fan-cooled motor

Array ( [0] => B002 [2] => B003 [39] => B005 [3] => B006 [4] => B008A [1] => B009 [5] => B014 [6] => B015 [42] => B016 [14] => B018 [15] => B021 [16] => B028 [17] => B029 [18] => B030 [38] => B031 [45] => B033 [21] => B034 [22] => B035 [19] => B036 [20] => B037 [40] => B038V [44] => B039 [24] => B040 [46] => B041A [25] => B042 [7] => B061 [8] => B062 [9] => B063 [10] => B067 [11] => B067D [41] => B068 [13] => B072 [26] => B090 [23] => B100 [43] => B106 [27] => B118 [28] => B120 [29] => B122 [30] => B124 [31] => B128 [32] => B129 [33] => B130 [34] => B131 [35] => B132 [36] => B134 [37] => B140 [12] => K003 )
All Sorts: Array ( [0] => B002 [1] => B003 [2] => B005 [3] => B006 [4] => B008A [5] => B009 [6] => B014 [7] => B015 [8] => B016 [9] => B018 [10] => B021 [11] => B028 [12] => B029 [13] => B030 [14] => B031 [15] => B033 [16] => B034 [17] => B035 [18] => B036 [19] => B037 [20] => B038V [21] => B039 [22] => B040 [23] => B041A [24] => B042 [25] => B061 [26] => B062 [27] => B063 [28] => B067 [29] => B067D [30] => B068 [31] => B072 [32] => B090 [33] => B100 [34] => B106 [35] => B118 [36] => B120 [37] => B122 [38] => B124 [39] => B128 [40] => B129 [41] => B130 [42] => B131 [43] => B132 [44] => B134 [45] => B140 [46] => K003 )
All Codes + All Sorts: Array ( [B002] => B002 [B003] => B003 [B005] => B005 [B006] => B006 [B008A] => B008A [B009] => B009 [B014] => B014 [B015] => B015 [B016] => B016 [B018] => B018 [B021] => B021 [B028] => B028 [B029] => B029 [B030] => B030 [B031] => B031 [B033] => B033 [B034] => B034 [B035] => B035 [B036] => B036 [B037] => B037 [B038V] => B038V [B039] => B039 [B040] => B040 [B041A] => B041A [B042] => B042 [B061] => B061 [B062] => B062 [B063] => B063 [B067] => B067 [B067D] => B067D [B068] => B068 [B072] => B072 [B090] => B090 [B100] => B100 [B106] => B106 [B118] => B118 [B120] => B120 [B122] => B122 [B124] => B124 [B128] => B128 [B129] => B129 [B130] => B130 [B131] => B131 [B132] => B132 [B134] => B134 [B140] => B140 [K003] => K003 )
Current: 7
Max: 12
Back: -1
Next: 1
First: B014
Second: B015
Third: B018
Fourth: B021

CODE	B014	B015	B018	B021
Model	BS-912	BS-916A	BS-250	BS-10LS
Cutting Head Beam	Manual	Manual	Manual	Manual
Operation Type	Fixed	Fixed	Fixed	Swivel Head
Round @ 90º	230mm	228mm	250mm	250mm
Round @ 45º	150mm	180mm	190mm	235mm
Round @ 60º	~	~	~	~
Square @ 90º	230mm	228mm	250mm	250mm
Square @ 45º	127mm	150mm	190mm	235mm
Square @ 60º	~	~	~	~
Rectangle (W x H) @ 90º	305 x 178mm	406 x 125mm	415 x 250mm	468 x 250mm
Rectangle (W x H) @ 45º	150 x 127mm	180 x 150mm	250 x 190mm	250 x 240mm
Rectangle (W x H) @ 60º	~	~	~	~
Cutting Beam Return	Manual	Manual	Manual	Manual
Vice Clamping Fixture	Manual	Manual	Manual	Manual
Bundle Cutting Fixture	~	~	~	~
Coolant System	Yes	Yes	Yes	Yes
Table Working Height	640mm	675mm	600mm	570mm
Blade Steps / Speeds	26-50-73-95 M/min	25-40-52-72 M/min	21-34-43-60 M/min	Variable 18-102 M/min
Blade Size (L x W x T)	2654 x 27 x 0.9mm	2908 x 27 x 0.9mm	3302 x 27 x 0.9mm	3090 x 27 x 0.9mm
Motor Power	0.75kW / 1hp	1.1kW / 1.5hp	1.5kW / 2hp	1.5kW / 2hp
Voltage	240V	240V	415V	415V
Weight (nett)	180kg	320kg	360kg	380kg
