B008A Swivel Head Metal Cutting Band Saw BS-7DS

Swivel Head Metal Cutting Band Saw

Description

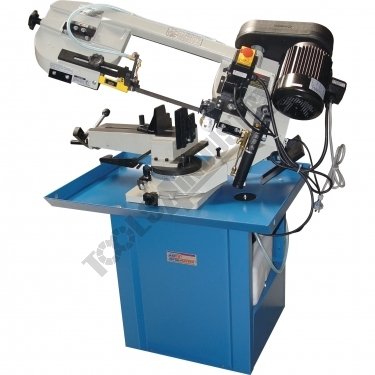

The BS-7DS medium duty swivel head metal cutting band saw has many features on offer with a double mitre swivel head capable of cutting up to 178mm diameter or 215 x 178mm in steel at 90º . There is a choice of four blade speeds via an adjustable 4 stage pulley system so that the cutting speed can be changed to suit a wide range of materials, whilst the built-in coolant system ensures maximum cutting efficiency and long blade life.

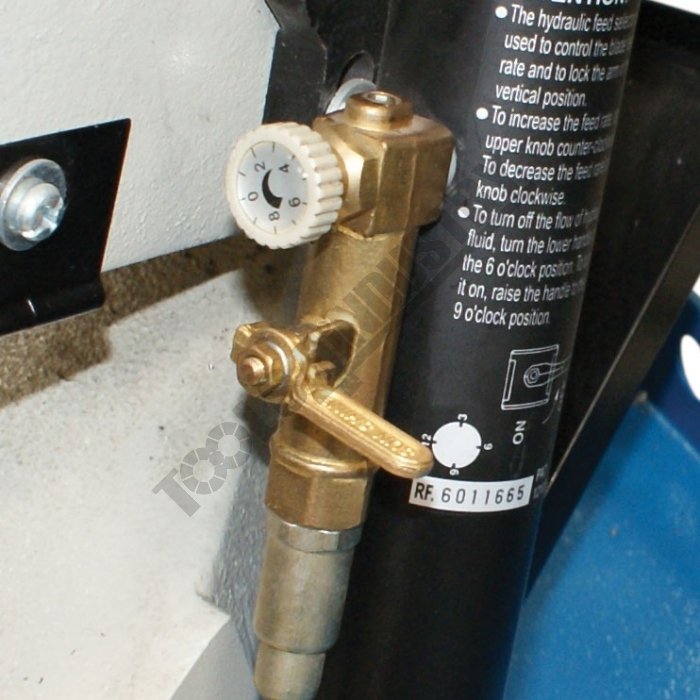

The cutting operation works automatically with the weight of the head providing the cutting force and a limit switch shutting the machine down when the cut is complete. The weight of the head is counterbalanced by an adjustable hydraulic damper to control the feed rate, an excellent machine choice for maintenance shops, medium steel fabrications, and engineering workshops.

Features
- 215 x 178mm (W x H) rectangular capacity

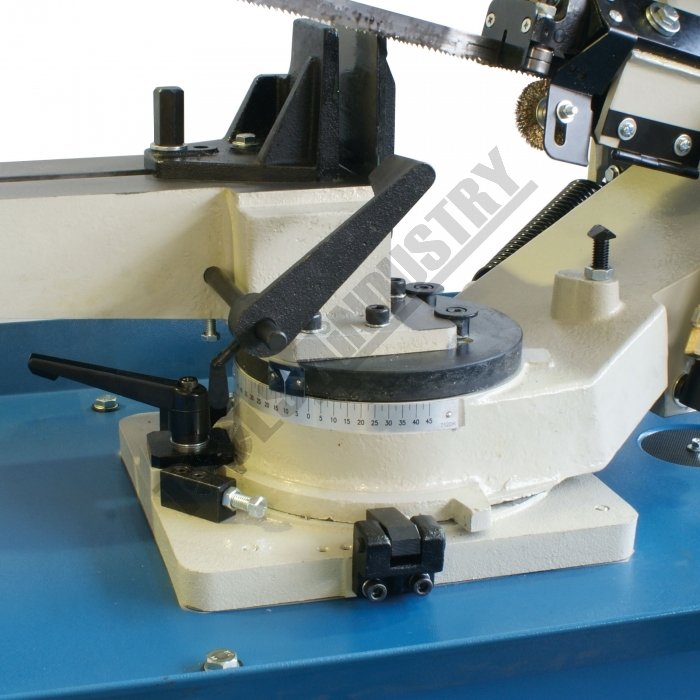

- ±45º swivel head for easy angle cutting without moving material

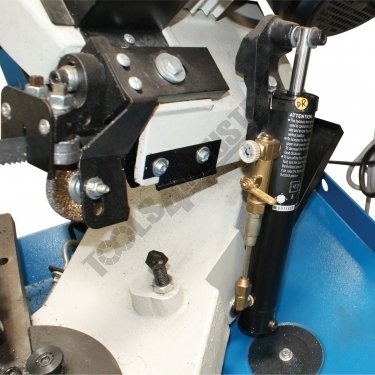

- Adjustable hydraulic feed cutting rate for multiple applications
- Dual mitre cutting capabilities to 45º via swivelling head and sliding vice

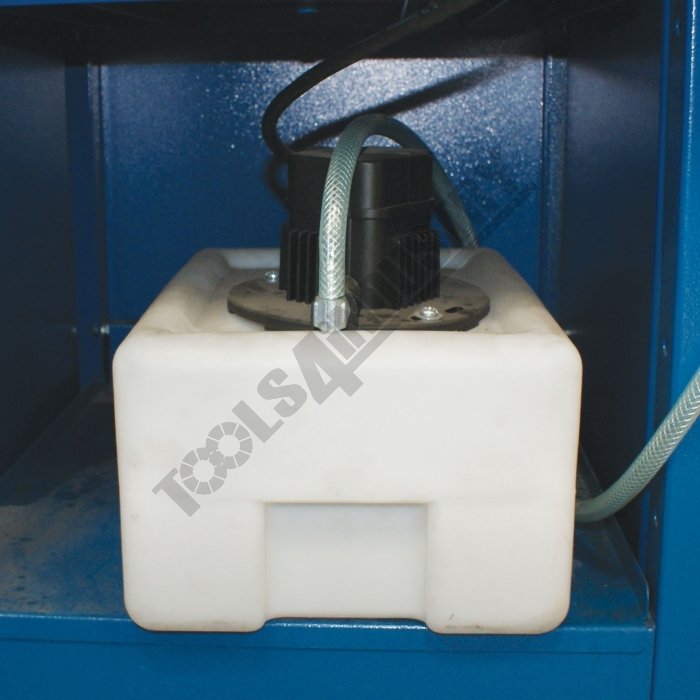

- Built-in coolant system for maximum cutting efficiency
- Limit switch stops machine when cut is complete

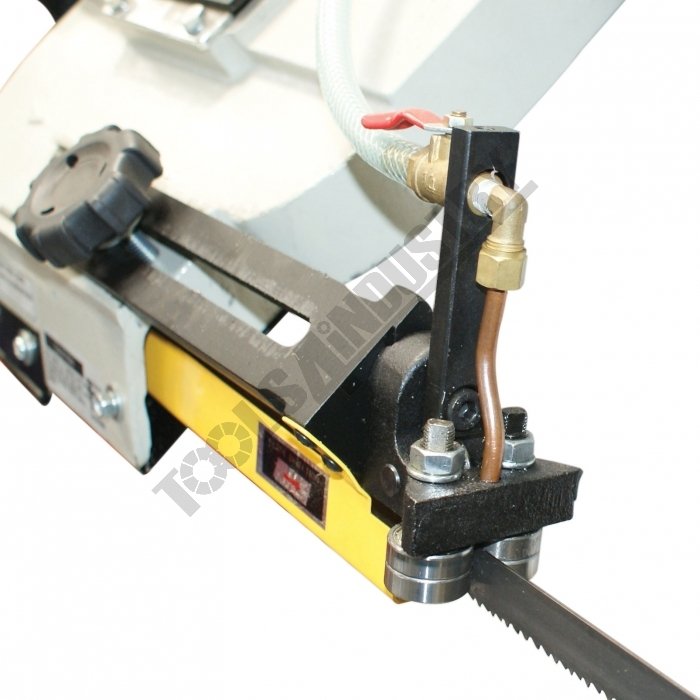

- Coolant system with flow control valve

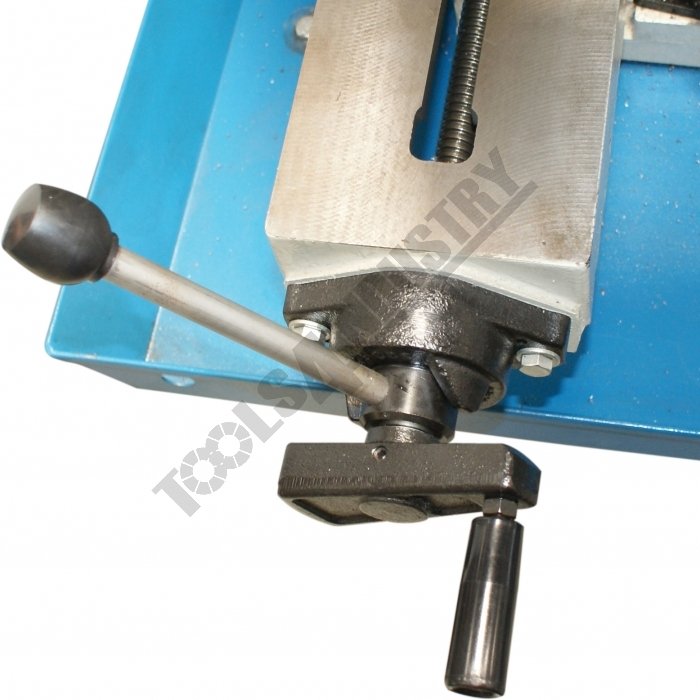

- Quick action material clamping lever

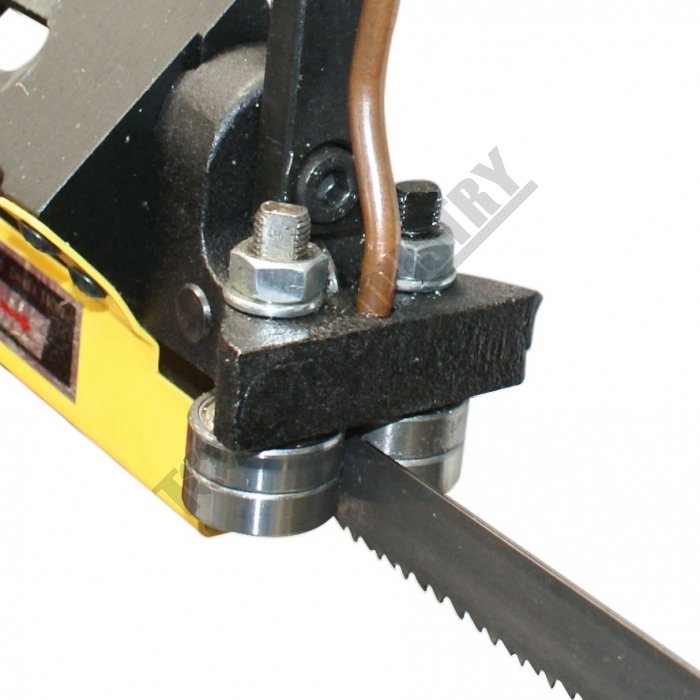

- Adjustable blade roller guides provides accurate cutting

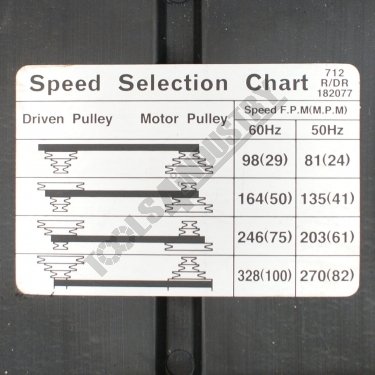

- Adjustable 4-speed pulley drive system enabling 24-41-61-82mpm cutting speeds
- Adjustable length stop for repetition cutting
- Wire wheel brush to clean swarf from blade

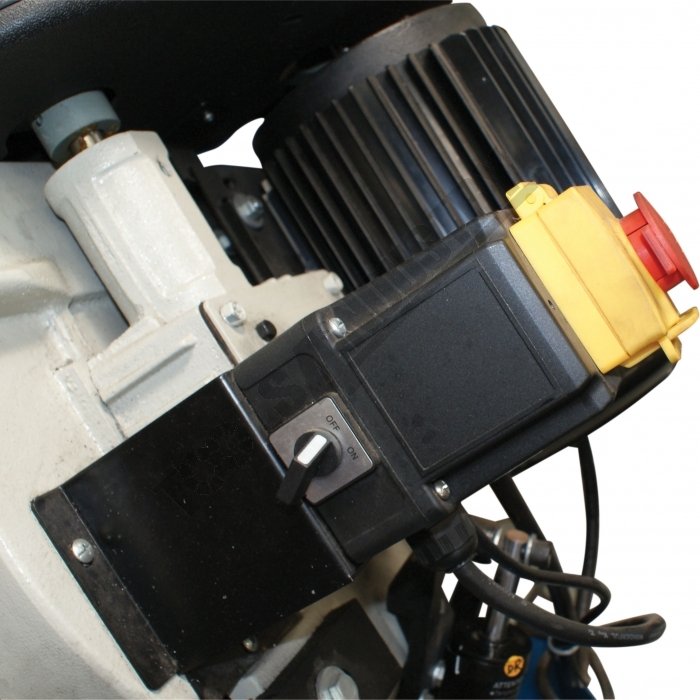

- Automatic electric cut-out switch
- Heavy-duty 750W/240V fully enclosed fan-cooled motor

Array ( [0] => B002 [2] => B003 [39] => B005 [3] => B006 [4] => B008A [1] => B009 [5] => B014 [6] => B015 [42] => B016 [14] => B018 [15] => B021 [16] => B028 [17] => B029 [18] => B030 [38] => B031 [45] => B033 [21] => B034 [22] => B035 [19] => B036 [20] => B037 [40] => B038V [44] => B039 [24] => B040 [46] => B041A [25] => B042 [7] => B061 [8] => B062 [9] => B063 [10] => B067 [11] => B067D [41] => B068 [13] => B072 [26] => B090 [23] => B100 [43] => B106 [27] => B118 [28] => B120 [29] => B122 [30] => B124 [31] => B128 [32] => B129 [33] => B130 [34] => B131 [35] => B132 [36] => B134 [37] => B140 [12] => K003 )
All Sorts: Array ( [0] => B002 [1] => B003 [2] => B005 [3] => B006 [4] => B008A [5] => B009 [6] => B014 [7] => B015 [8] => B016 [9] => B018 [10] => B021 [11] => B028 [12] => B029 [13] => B030 [14] => B031 [15] => B033 [16] => B034 [17] => B035 [18] => B036 [19] => B037 [20] => B038V [21] => B039 [22] => B040 [23] => B041A [24] => B042 [25] => B061 [26] => B062 [27] => B063 [28] => B067 [29] => B067D [30] => B068 [31] => B072 [32] => B090 [33] => B100 [34] => B106 [35] => B118 [36] => B120 [37] => B122 [38] => B124 [39] => B128 [40] => B129 [41] => B130 [42] => B131 [43] => B132 [44] => B134 [45] => B140 [46] => K003 )
All Codes + All Sorts: Array ( [B002] => B002 [B003] => B003 [B005] => B005 [B006] => B006 [B008A] => B008A [B009] => B009 [B014] => B014 [B015] => B015 [B016] => B016 [B018] => B018 [B021] => B021 [B028] => B028 [B029] => B029 [B030] => B030 [B031] => B031 [B033] => B033 [B034] => B034 [B035] => B035 [B036] => B036 [B037] => B037 [B038V] => B038V [B039] => B039 [B040] => B040 [B041A] => B041A [B042] => B042 [B061] => B061 [B062] => B062 [B063] => B063 [B067] => B067 [B067D] => B067D [B068] => B068 [B072] => B072 [B090] => B090 [B100] => B100 [B106] => B106 [B118] => B118 [B120] => B120 [B122] => B122 [B124] => B124 [B128] => B128 [B129] => B129 [B130] => B130 [B131] => B131 [B132] => B132 [B134] => B134 [B140] => B140 [K003] => K003 )
Current: 4
Max: 12
Back: -1
Next: 1
First: B006
Second: B008A
Third: B009
Fourth: B014

CODE	B006	B008A	B009	B014
Model	BS-7L	BS-7DS	BS-5	BS-912
Cutting Head Beam	Manual	Manual	Manual	Manual
Operation Type	Fixed	Swivel Head	Fixed	Fixed
Round @ 90º	178mm	178mm	115mm	230mm
Round @ 45º	127mm	127mm	80mm	150mm
Round @ 60º	~	~	~	~
Square @ 90º	178mm	178mm	115mm	230mm
Square @ 45º	115mm	85mm	80mm	127mm
Square @ 60º	~	~	~	~
Rectangle (W x H) @ 90º	305 x 178mm	215 x 178mm	150 x 115mm	305 x 178mm
Rectangle (W x H) @ 45º	120 x 115mm	140 x 85mm	100 x 80mm	150 x 127mm
Rectangle (W x H) @ 60º	~	~	~	~
Cutting Beam Return	Manual	Manual	Manual	Manual
Vice Clamping Fixture	Manual	Manual - Quick Action	Manual	Manual
Bundle Cutting Fixture	~	~	~	~
Coolant System	Yes	Yes	~	Yes
Table Working Height	550mm	850mm	620mm	640mm
Blade Steps / Speeds	22-34-49-64 M/min	24-41-61-82 M/min	20-29-50 M/min	26-50-73-95 M/min
Blade Size (L x W x T)	2362 x 19 x 0.8mm	2362 x 19 x 0.8mm	1645 x 12.7 x 0.65mm	2654 x 27 x 0.9mm
Motor Power	0.56kW / 3/4hp	0.75kW / 1hp	0.250kW / 1/3hp	0.75kW / 1hp
Voltage	240V	240V	240V	240V
Weight (nett)	150kg	165kg	65kg	180kg
