B002 Metal Cutting Band Saw BS-4A

Metal Cutting Band Saw

Description

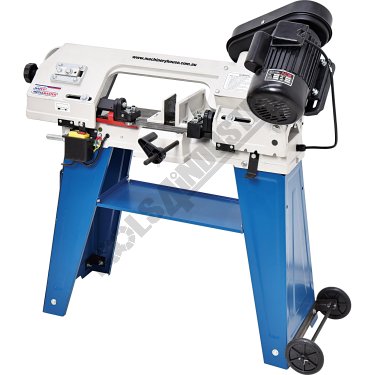

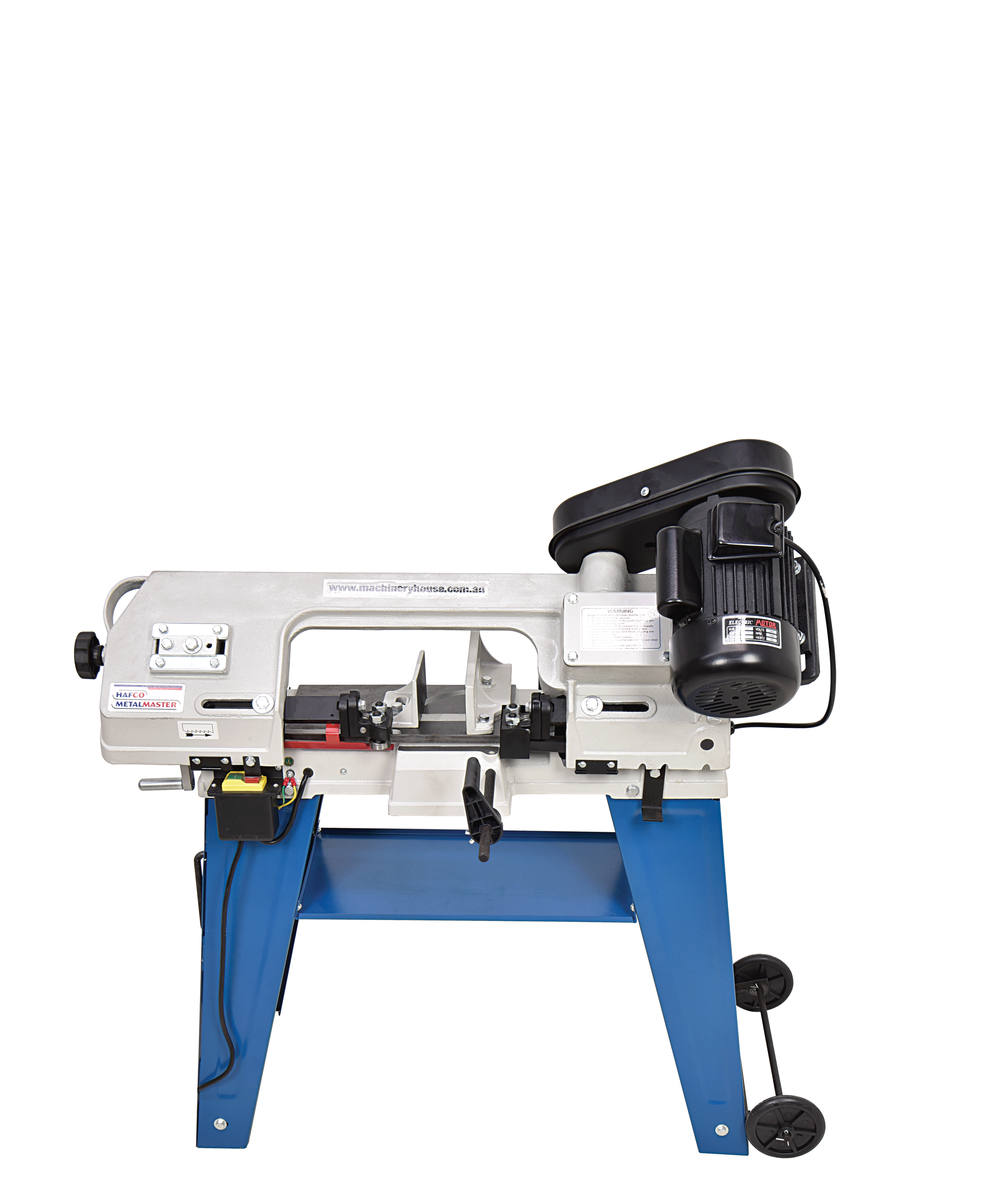

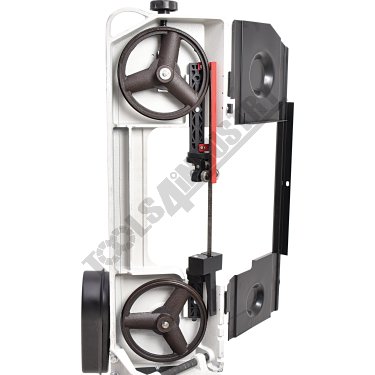

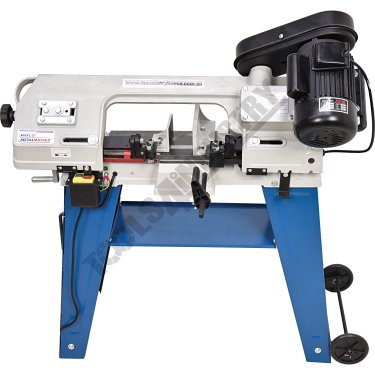

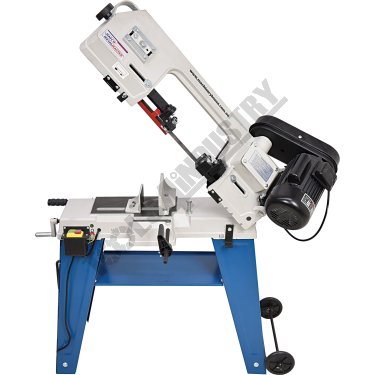

BS-4A METAL CUTTING BAND SAW (240V):The BS-4A is an economically priced metal cutting band saw with a robust four-legged stand cross braced with a under tray and built-in mitre cutting capability. The ball bearing guided blade can be driven at a choice of three speeds via a reduction gearbox, depending on the type of material being cut and there is an automatic cut-off, adjustable for height, for stopping the motor when the cut is complete.

One notable feature on this saw are the rear mounted wheels on the stand allowing it to be portable, ideal for maintenance shops, light steel fabrications, and engineering workshops. A well priced and very effective machine for cutting steel bars, angles, channels, tubes and so on.

Features
- 150 x 100mm (W x H) rectangular capacity
- Ideal for cutting tube, pipe, solid steel, non-ferrous and wood

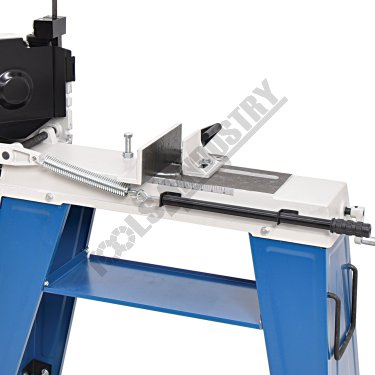

- Adjustable spring tension screw regulating cutting feed rate

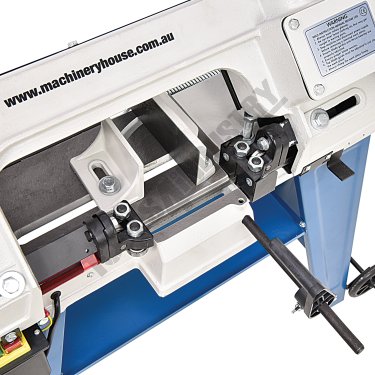

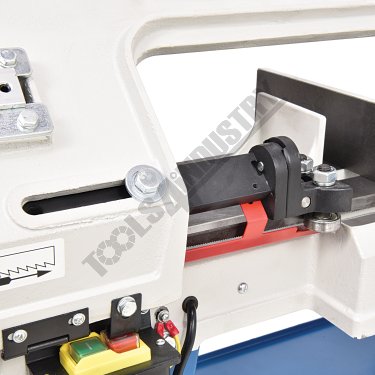

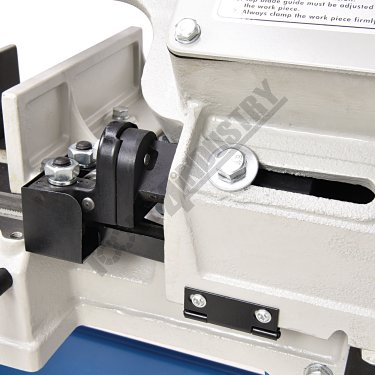

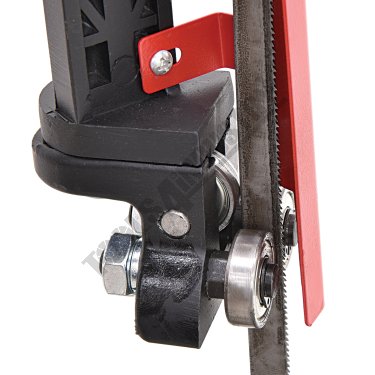

- Fully-adjustable blade roller for accurate and straight cutting

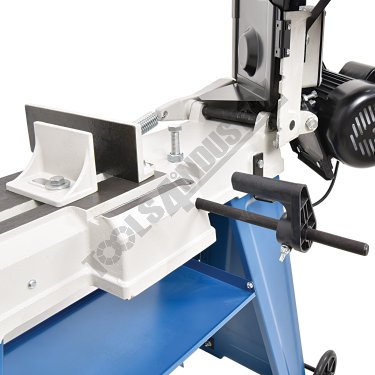

- Adjustable length stop for repetition cutting

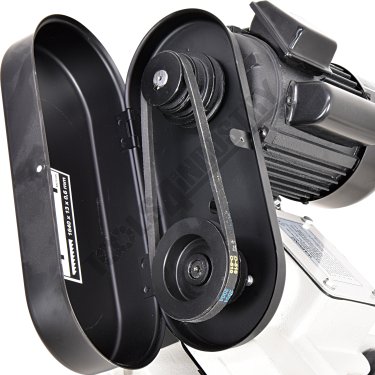

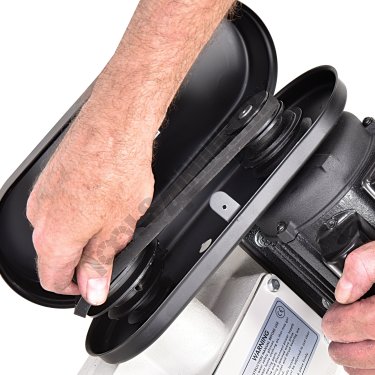

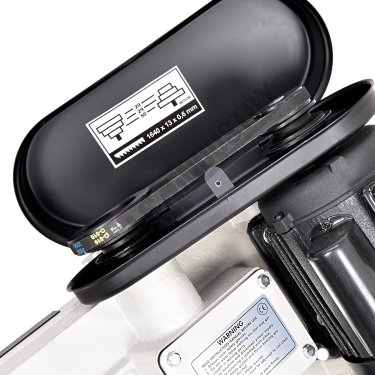

- 3-speed pulley drive system

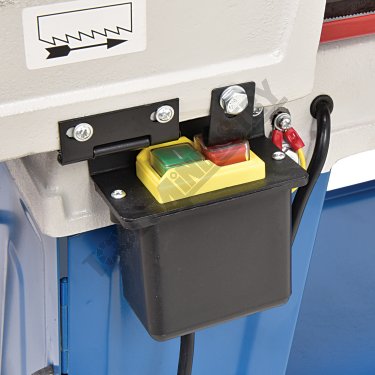

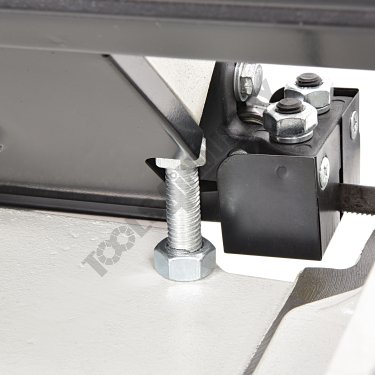

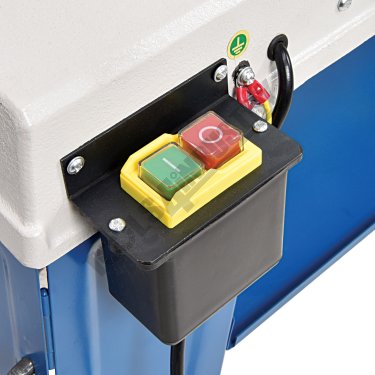

- Automatic electric cut-out switch

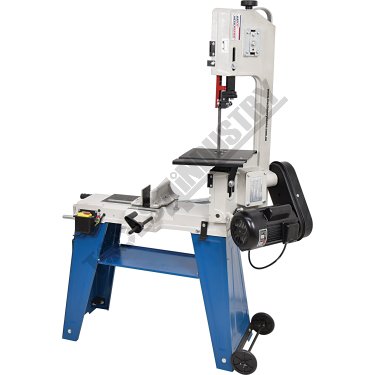

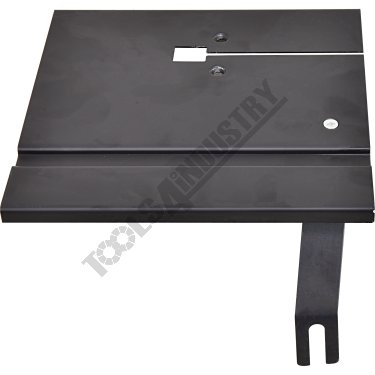

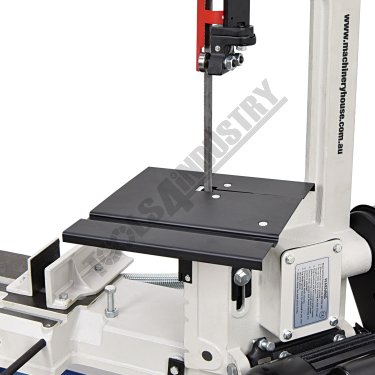

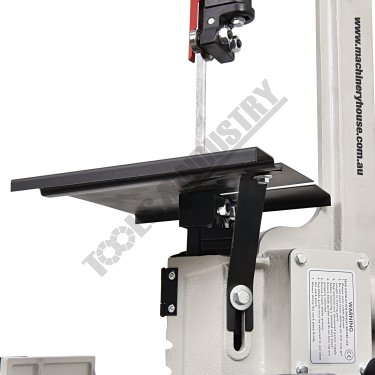

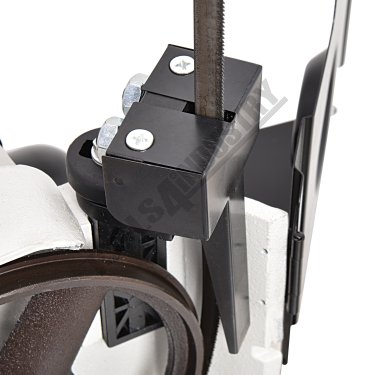

- Vertical cutting table included

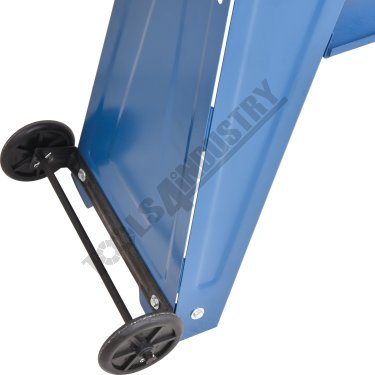

- Portable - on wheels for site work

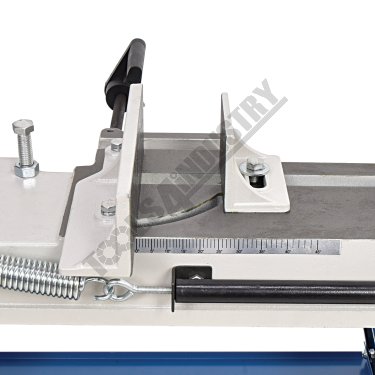

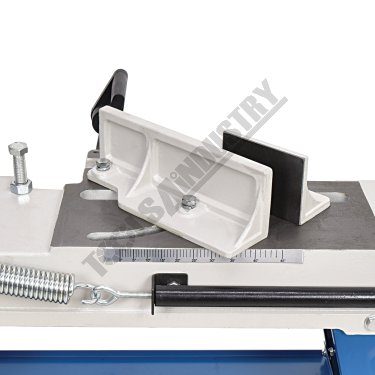

- Cuts to 45º degrees in mitre vice
- Sealed worm and pinion gearbox drive

Array ( [5] => B002 [7] => B003 [4] => B005 [8] => B006 [9] => B008A [6] => B009 [10] => B014 [11] => B015 [3] => B016 [16] => B018 [18] => B021 [19] => B028 [20] => B029 [22] => B030 [13] => B031 [2] => B033 [23] => B034 [24] => B035 [25] => B036 [26] => B038V [1] => B039 [27] => B040 [29] => B041A [28] => B042 [21] => B061 [14] => B062 [15] => B063 [12] => B067 [0] => B068 [17] => B072 [30] => B090 [31] => B100 [32] => B106 [34] => B118 [33] => B120 [35] => B122 [36] => B124 )
All Sorts: Array ( [0] => B002 [1] => B003 [2] => B005 [3] => B006 [4] => B008A [5] => B009 [6] => B014 [7] => B015 [8] => B016 [9] => B018 [10] => B021 [11] => B028 [12] => B029 [13] => B030 [14] => B031 [15] => B033 [16] => B034 [17] => B035 [18] => B036 [19] => B038V [20] => B039 [21] => B040 [22] => B041A [23] => B042 [24] => B061 [25] => B062 [26] => B063 [27] => B067 [28] => B068 [29] => B072 [30] => B090 [31] => B100 [32] => B106 [33] => B118 [34] => B120 [35] => B122 [36] => B124 )
All Codes + All Sorts: Array ( [B002] => B002 [B003] => B003 [B005] => B005 [B006] => B006 [B008A] => B008A [B009] => B009 [B014] => B014 [B015] => B015 [B016] => B016 [B018] => B018 [B021] => B021 [B028] => B028 [B029] => B029 [B030] => B030 [B031] => B031 [B033] => B033 [B034] => B034 [B035] => B035 [B036] => B036 [B038V] => B038V [B039] => B039 [B040] => B040 [B041A] => B041A [B042] => B042 [B061] => B061 [B062] => B062 [B063] => B063 [B067] => B067 [B068] => B068 [B072] => B072 [B090] => B090 [B100] => B100 [B106] => B106 [B118] => B118 [B120] => B120 [B122] => B122 [B124] => B124 )
Current: 1
Max: 8
Back: NO
Next: 1
First: B002
Second: B003
Third: B006
Fourth: B008A

CODE	B002	B003	B006	B008A
MODEL	BS-4A	BS-5S	BS-7L	BS-7DS
CUTTING HEAD BEAM	Manual	Manual	Manual	Manual
OPERATION TYPE	Fixed	Swivel Head	Fixed	Swivel Head
ROUND 90	100mm	125mm	178mm	178mm
ROUND 45	72mm	80mm	127mm	127mm
ROUND 60	~	~	~	~
SQUARE 90	100mm	125mm	178mm	178mm
SQUARE 45	72mm	75mm	115mm	85mm
SQUARE 60	~	~	~	~
RECTANGLE (W x H) 90	150 x 100mm	200 x 125mm	305 x 178mm	215 x 178mm
RECTANGLE (W x H) 45	100 x 72mm	125 x 72mm	120 x 115mm	140 x 85mm
RECTANGLE (W x H) 60	~	~	~	~
CUTTING BEAM RETURN	Manual	Manual	Manual	Manual
VICE CLAMPING FIXTURE	Manual	Manual	Manual	Manual - Quick Action
BUNDLE CUTTING FIXTURE	~	~	~	~
COOLANT SYSTEM	~	~
TABLE WORKING HEIGHT	620mm	680mm	550mm	850mm
BLADE STEPS / SPEEDS	20-29-50 M/min	20-29-50 M/min	22-34-49-64 M/min	24-41-61-82 M/min
BLADE SIZE (LxWxT)	1645 x 12.7 x 0.65mm	1727 x 12.7 x 0.65mm	2362 x 19 x 0.8mm	2362 x 19 x 0.8mm
MOTOR POWER	0.375kW / 1/2hp	0.375kW / 1/2hp	0.56kW / 3/4hp	0.75kW / 1hp
VOLTAGE	240V	240V	240V	240V
WEIGHT (Nett)	65kg	75kg	150kg	165kg
